termseries

Show timeseries data in the terminal using matplotlib. Plot stock prices from Yahoo Finance, sensor data from Home Assistant, or any numeric timeseries from local CSV files. Renders high-quality PNG charts inline (Kitty, iTerm2, Sixel) or saves to file, with an optional interactive Textual TUI.

Features

Data Sources

Fetch stock/crypto/index prices from Yahoo Finance via the yahoo subcommand, with auto-picked intra-day intervals for short periods (e.g. 5m for 1d, 15m for 5d/7d)
Chart prediction-market prices from Polymarket via the polymarket subcommand, with auto-picked aggregation intervals based on period duration
Plot Home Assistant sensor history via the hass subcommand (REST API)
Load local two-column CSV files (timestamp, value) via the csv subcommand
Auto-detect and skip CSV headers, blank lines, NaN/Inf values
Accept ISO 8601 timestamps and Unix epochs in CSV files
Auto-detect the unit of measurement from Home Assistant entity attributes
All timestamps are stored internally as UTC; use --tz to display in another timezone

Chart Modes

Absolute values (default), indexed to 100%, logarithmic scale
Drawdown from running peak, interval-aware returns (label adapts to interval), and relative price ratio
Cumulative running total and point-to-point delta
Seasonal mode (--mode seasonal) wraps a multi-cycle series into overlaid per-cycle lines (e.g. one line per year) via --cycle year|quarter|<duration> — see Seasonal Mode
Rolling windows via --last and fixed bounds via --from/--to across all subcommands
Calendar-anchored to-date periods: ytd, mtd, wtd, dtd, htd

Terminal Rendering

Auto-detect Kitty, iTerm2, and Sixel-capable terminals for inline PNG display
Fall back to writing a PNG file when no inline protocol is available
Adaptive vertical calendar dividers (hours, days, months, or years), aligned to --tz
Auto-detect dark/light terminal background for theme selection
Force dark/light theme or inline/file output via environment variables

Interactive TUI

Full-screen Textual TUI with dropdowns for period, aspect ratio, mode, and color cycle; "custom…" option in the Period menu for arbitrary values, and "from-to…" for an explicit date range (partial dates like 2024-05 are zero-padded to a full timestamp, rounding From down to the start and To up to the end, same as the CLI's --from/--to)
Launching with -i and --from/--to seeds that range as its own pre-selected Period entry instead of rejecting it
--mode seasonal works in the TUI too, re-wrapping data on every redraw
Live ticker/entity/file input with immediate re-render on submit
Debounced chart re-render on terminal resize using cached data
Auto-reload at a configurable interval (--reload N) or toggled with Ctrl+R
Copy current plot to clipboard with Ctrl+Y

Customization

Configurable aspect ratio (--ratio W:H or fit for terminal-filling)
Seven built-in color cycles (tab10, Set1, Set2, Dark2, Accent, Pastel1, tab20)
Layer custom .mplstyle overrides on top of the built-in dark/light themes
Consistent font sizes across terminal widths in TUI mode
Custom chart title (--title) and toggleable legend (--legend/--no-legend)

Clipboard & Output

Copy rendered plot to system clipboard (-c or Ctrl+Y in TUI)
Clipboard warnings when running inside Docker or over SSH
Built-in demo command showcasing multiple chart modes

Developer Experience

Fully typed (py.typed, mypy-checked)
Pre-commit hooks for ruff, ruff-format, and mypy
430+ unit tests covering all modules, run in CI on Linux and Windows
Docker support with Compose for containerized usage

Installation

pip install termseries

Or with uv:

uv tool install termseries

Or run it without installing, via uvx:

uvx termseries yahoo TSLA AAPL MSFT

Quick Start

# Plot stock prices (7-day default)
termseries yahoo TSLA AAPL MSFT

# Indexed comparison over 1 month

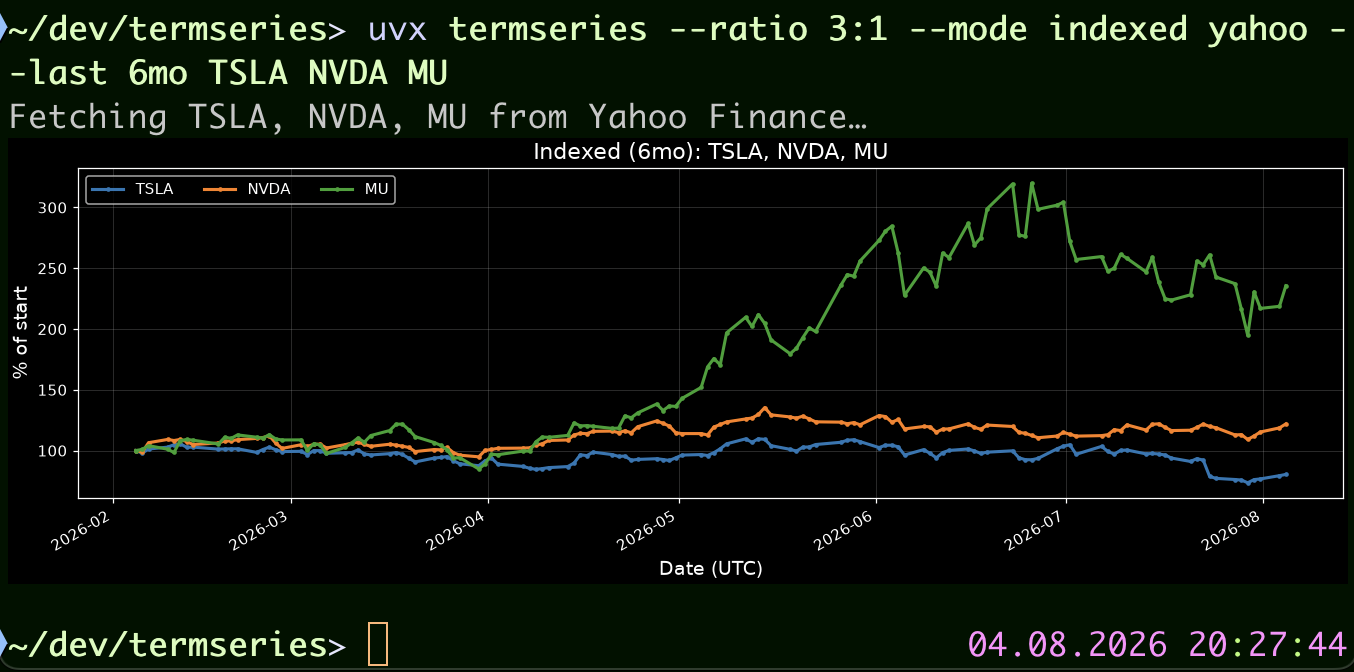

termseries --mode indexed yahoo --last 1mo TSLA AAPL MSFT

# Log scale over 5 years
termseries --mode log yahoo --last 5y AAPL MSFT GOOGL

# Drawdown chart
termseries --mode drawdown yahoo --last 1y TSLA AAPL

# Intra-day: 1-day period auto-picks 5-minute intervals
termseries yahoo TSLA --last 1d

# Explicit 1-minute interval override
termseries yahoo TSLA --interval 1m --last 1d

# Relative price ratio (exactly 2 tickers)
termseries --mode relative yahoo --last 1y AAPL MSFT

# Cumulative sum
termseries --mode cumulative csv sensor.csv --last 30d

# Point-to-point delta
termseries --mode delta yahoo TSLA --last 1mo

# Seasonal: overlay each year as its own line
termseries --mode seasonal yahoo TSLA --from 2022

# Seasonal: overlay each quarter (calendar-aligned, day-of-quarter x-axis)
termseries --mode seasonal --cycle quarter yahoo TSLA --last 2y

# Seasonal: overlay each week (Monday-Sunday x-axis)
termseries --mode seasonal --cycle 1w yahoo TSLA --last 6mo

# Custom title, no legend
termseries --title "TSLA vs AAPL" --no-legend yahoo TSLA AAPL --last 1y

# Show gaps in data (break lines where data is missing)
termseries --gaps show hass sensor.living_room_temperature --last 7d

# Connect gaps under 1 hour, break larger ones
termseries --gaps 1h csv sensor.csv --last 30d

# Step-style line (staircase effect)
termseries --line-style step-post yahoo TSLA --last 5d

# Display x-axis in your local timezone
termseries --tz local yahoo TSLA AAPL

# Display x-axis in a specific timezone
termseries --tz Europe/Berlin hass sensor.living_room_temperature --last 1d

# Copy plot to clipboard
termseries yahoo -c TSLA AAPL

# Interactive TUI
termseries -i yahoo TSLA

# --- Home Assistant sensors ---

# Plot HASS sensor data (requires HASS_SERVER and HASS_TOKEN env vars)
termseries hass sensor.living_room_temperature sensor.bedroom_temperature

# Last 3 hours of data
termseries hass sensor.living_room_temperature --last 3h

# Last 30 days with explicit unit
termseries hass sensor.living_room_temperature --last 30d --unit '°C'

# Glob pattern: plot every matching entity in one call
termseries hass "sensor.*battery_level" --last 7d

# Interactive TUI with HASS data
termseries -i hass sensor.power_consumption

# --- Polymarket markets ---

# Plot a Polymarket market's "yes" price
termseries polymarket will-bitcoin-hit-150k-in-2026

# Plot the "no" outcome instead
termseries polymarket will-bitcoin-hit-150k-in-2026 --outcome no

# Last 30 days
termseries polymarket will-bitcoin-hit-150k-in-2026 --last 30d

# --- CSV files ---

# Plot a local CSV (two columns: timestamp, value)
termseries csv /path/to/sensor.csv

# Multiple files, last 7 days, with a custom unit label
termseries csv temp.csv humidity.csv --last 7d --unit '°C'

# Non-standard periods work everywhere
termseries yahoo TSLA --last 14d
termseries yahoo TSLA --last 2w

# Calendar-anchored to-date periods
termseries yahoo TSLA --last ytd
termseries yahoo TSLA --last mtd
termseries hass sensor.power_consumption --last dtd

# Interactive TUI with CSV data
termseries -i csv sensor.csv

CSV File Format

The csv subcommand expects two-column CSV files (timestamp, value). Header rows are auto-detected and skipped. Timestamps can be ISO 8601 strings or Unix epochs. Blank lines and NaN/Inf values are silently skipped. Naive timestamps (without an explicit offset) are assumed to be UTC.

2024-01-01T00:00:00Z,20.5
2024-01-02T00:00:00Z,21.0
2024-01-03T00:00:00Z,22.1

Each file becomes one series labelled by its filename (without extension). The --last filters to a now-anchored time window using free-form <number><unit> syntax (e.g. 7d, 2w, 3mo). Special values: max (default) shows all data with the x-axis extending to now; auto auto-fits the x-axis to the data with no empty space. The --unit option sets the y-axis label (default: value).

For high-frequency data, --resample reduces points into fixed, UTC-aligned buckets before rendering. Use --aggregate to select the bucket reducer (mean by default; also median, min, max, sum, count, first, and last). The plotted timestamp is the start of each bucket. For example:

termseries csv data/heart.csv --last 1mo --resample 1m --aggregate mean --unit bpm

--last 1m means the last minute; use --last 1mo for the last month.

The hass subcommand uses the same --last syntax and auto-detects the unit from the entity's attributes. Entity IDs may include glob-style patterns (* matches any run of characters, ? matches a single character), expanded against all entities currently known to Home Assistant:

# Plot every sensor whose ID contains "battery_level"
termseries hass "sensor.*battery_level" --period 7d

Quote patterns so your shell doesn't expand them first. The match isn't anchored to the end, so sensor.*battery_level also matches sensor.phone_battery_level_2.

Fitbit JSON conversion

tools/fitbit_to_csv.py combines Fitbit JSON exports in data/ into the standard two-column CSV consumed by termseries csv. Fitbit timestamps have no timezone marker, so the converter interprets them as Europe/Berlin by default and writes normalized UTC timestamps; override this with --timezone as needed.

python tools/fitbit_to_csv.py steps data data/steps.csv
python tools/fitbit_to_csv.py heart data data/heart.csv
python tools/fitbit_to_csv.py sleep data data/sleep.csv

termseries csv data/steps.csv --unit steps --last max
termseries csv data/heart.csv --unit bpm --last max
termseries --line-style step-post --gaps show csv data/sleep.csv --unit stage --last max

The sleep CSV represents detailed main-session sleep stages as a numeric step series: wake=0, REM=1, light=2, and deep=3. The converter sorts records and removes duplicate timestamps, and uses a temporary on-disk index so large heart-rate exports do not need to fit in memory.

Shared Options

Option	Description
`--ratio W:H`	Figure aspect ratio (default: 4:1)
`--mode`	Chart mode: absolute, indexed, log, drawdown, returns, relative, cumulative, delta, seasonal
`--cycle`	Seasonal cycle length: `year`, `quarter`, or a duration (e.g. `1w`, `90d`) — only valid with `--mode seasonal`, defaults to `year` (see Seasonal Mode)
`--title`	Custom chart title (default: auto-generated from mode/period/series)
`--legend` / `--no-legend`	Show or hide the series legend (default: shown)
`--tz TZ`	Timezone for x-axis: `UTC` (default), `local`, or IANA name (e.g. `Europe/Berlin`)
`--colors`	Matplotlib color cycle: tab10, Set1, Set2, Dark2, Accent, Pastel1, tab20
`--gaps`	Gap handling: `connect` (default), `show` (break lines at gaps), or duration threshold (e.g. `1h`)
`--line-style`	Line connection style: linear (default), step-pre, step-post, step-mid
`--style PATH`	Extra `.mplstyle` file layered on top of the base theme (see Custom Styles)
`-c` / `--copy`	Copy plot to system clipboard
`-i` / `--interactive`	Launch Textual TUI

Time range syntax (all subcommands)

Use --last for a rolling window ending now, --from and --to for a fixed inclusive interval, or --first for a duration beginning at the earliest returned data point. --to defaults to now; these forms cannot be combined. --period remains a compatibility alias for --last.

termseries yahoo TSLA --last 7d
termseries yahoo TSLA --from 2026-07-01 --to 2026-07-31
termseries csv readings.csv --from ytd
termseries csv readings.csv --first 7d

--from and --to accept ISO-8601 dates/times (such as 2026-07-01 or 2026-07-01T12:00:00Z), now, and the same relative/calendar expressions as --last (such as 7d and ytd).

Partial dates/times are zero-padded to a full timestamp, and the direction of padding depends on which bound you're filling in, so the range stays fully inclusive: --from rounds down to the start of the given granularity, while --to rounds up to its end (calendar-aware, so February gets 28 or 29 days correctly). For example, --from 2025 --to 2026 expands to 2025-01-01T00:00:00 through 2026-12-31T23:59:59 — covering all of both years — not just the first instant of 2026. Likewise --from 2026-05 starts at 2026-05-01T00:00:00 and --to 2026-05 ends at 2026-05-31T23:59:59. A fully-specified timestamp on either side is used as-is.

Warning: --first is data-anchored, not calendar-anchored. Its effective start can change when a source adds or backfills older history, so use --from and --to for reproducible charts. It accepts durations only (for example 7d, 2w, or 3mo).

--last accepts free-form <number><unit> values:

Unit	Example	Meaning
`m`	`30m`	minutes
`h`	`6h`	hours
`d`	`14d`	days
`w`	`2w`	weeks
`mo`	`3mo`	months (≈30 days)
`y`	`1y`	years (≈365 days)
`ytd`	`ytd`	year-to-date (from Jan 1st)
`mtd`	`mtd`	month-to-date (from 1st of month)
`wtd`	`wtd`	week-to-date (from Monday)
`dtd`	`dtd`	day-to-date (from midnight)
`htd`	`htd`	hour-to-date (from start of hour)
`max`		all data, x-axis extends to now
`auto`		all data, x-axis fits to data

Calendar boundaries for ytd/mtd/wtd/dtd/htd are computed in the timezone set by --tz (default UTC) — e.g. --tz local --last dtd means "since local midnight", not UTC midnight.

For Yahoo, non-native periods (e.g. 14d, 2w) are handled automatically by overfetching the next-larger native range and trimming client-side.

Seasonal Mode

--mode seasonal wraps a multi-cycle series into overlaid per-cycle lines — e.g. one line per year, so you can compare the same time of year across multiple years at a glance. Use --cycle to pick the cycle length:

# One line per calendar year (default cycle)
termseries --mode seasonal yahoo TSLA --from 2022

# One line per calendar quarter (Q1/Q2/Q3/Q4 all overlay onto the same
# Jan-Mar-shaped window, so the x-axis shows a single quarter's width)
termseries --mode seasonal --cycle quarter yahoo TSLA --last 2y

# One line per calendar week, Monday-aligned
termseries --mode seasonal --cycle 1w yahoo TSLA --last 6mo

# Arbitrary duration cycles (e.g. 90-day chunks)
termseries --mode seasonal --cycle 90d yahoo TSLA --last 1y

Each output series is labeled with its cycle, e.g. TSLA (2024), TSLA (2024 Q1), TSLA (2024-W03). The x-axis label and tick formatting adapt to the cycle:

`--cycle`	X-axis label	Tick format
`year` (default)	`Month of year`	Month names (`Jan`, `Feb`, …), centered mid-month
`quarter`	`Day of quarter`	Day offset within the quarter (`Day 1`…`Day 92`)
a 7-day duration (`1w`/`7d`)	`Day of week`	Weekday names, Monday-aligned, centered on each day
any other duration	`Day of chunk`	Day offset within the chunk

The timezone is only shown in the x-axis label when it can actually affect what's displayed (quarter and week cycles, which are day-or-finer calendar-aligned); it's omitted for year (month-level display) and other duration cycles (elapsed-time based, timezone-invariant).

If --cycle is as long as or longer than the available data, only one chunk is produced and a warning is printed (CLI) or shown as a notification (TUI) instead of failing. --mode seasonal works with --interactive (-i) too, wrapping freshly fetched data on every redraw — the cycle length comes from --cycle at launch (no in-TUI cycle selector yet).

Yahoo-specific Options

Option	Description
`--last`	Rolling chart range ending now (default: `7d`). Any `<number><unit>`, `max`, or `auto`; `--period` is an alias
`--from`, `--to`	Inclusive fixed bounds; `--to` defaults to now
`--first`	Data-anchored duration; may change when older history is backfilled
`--interval`	Data interval: auto (default), 1m, 5m, 15m, 30m, 60m, 90m, 1d

When --interval auto (the default), termseries picks a sensible interval based on the period duration:

Period duration	Auto interval
≤ 1 day	5m
≤ 7 days	15m
> 7 days	1d

Polymarket-specific Options

Option	Description
`--outcome`	Outcome label to chart, usually `yes` or `no` for binary markets (default: `yes`)
`--interval`	Aggregation interval: `auto` (default), `max`, `all`, `1m`, `1h`, `6h`, `1d`, `1w`
`--fidelity`	Data fidelity in minutes for the Polymarket history API (default: `1`)

When --interval auto (the default), termseries picks a sensible interval based on the period duration:

Period duration	Auto interval
≤ 6 hours	1m
≤ 3 days	1h
≤ 30 days	6h
≤ 180 days	1d
> 180 days	1w

Home Assistant Setup

The hass subcommand connects to a running Home Assistant instance via the REST API. Set these environment variables:

export HASS_SERVER=http://homeassistant.local:8123
export HASS_TOKEN=your_long_lived_access_token

Create a long-lived access token in HASS under Profile > Security > Long-Lived Access Tokens. The unit label (y-axis) is auto-detected from the entity's unit_of_measurement attribute; use --unit to override.

Custom Styles

Chart appearance is controlled by Matplotlib .mplstyle files. termseries ships with two built-in themes (dark and light) that are automatically selected based on your terminal's background color. You can override any setting by passing an extra style file with --style:

# Use thinner lines, no markers
termseries --style my-overrides.mplstyle yahoo TSLA AAPL

The override file only needs the keys you want to change -- everything else is inherited from the base theme.

Built-in theme defaults

Both dark.mplstyle and light.mplstyle share the same layout settings (they differ only in colors):

Key	Default	Controls
`axes.titlesize`	14	Chart title
`axes.labelsize`	12	Axis labels ("Date (UTC)", "Close (USD)")
`xtick.labelsize`	10	X-axis tick values
`ytick.labelsize`	10	Y-axis tick values
`legend.fontsize`	10	Legend text
`lines.linewidth`	2	Line thickness
`lines.marker`	o	Data-point marker shape
`lines.markersize`	6	Marker size
`grid.alpha`	0.3	Grid transparency
`grid.linewidth`	0.5	Grid line thickness
`figure.dpi`	200	Output resolution

Example override file

# my-overrides.mplstyle
axes.titlesize:   18          # bigger title
axes.labelsize:   16          # bigger axis labels
xtick.labelsize:  14          # bigger tick labels
ytick.labelsize:  14
lines.linewidth:  1.5
lines.marker:     None        # no markers, just lines
figure.dpi:       150         # lower DPI for smaller file size
grid.linestyle:   --          # dashed grid

See the full Matplotlib customization guide for all available keys.

Environment Variables

Variable	Effect
`HASS_SERVER`	Home Assistant base URL (e.g. `http://ha.local:8123`)
`HASS_TOKEN`	Home Assistant long-lived access token

Theme

Use --theme dark|light|auto to control the plot theme. The default is auto, which detects the terminal background.

termseries --theme dark yahoo TSLA

To persist the setting, create a termseries.env config file. Termseries searches for (first found wins):

.termseries.env in the current working directory
~/.config/termseries/termseries.env

# termseries.env
THEME=dark

See termseries.env.example for a commented template.

Precedence (highest to lowest): --theme flag → config file → auto-detection.

Output

Use --output to control where the rendered PNG goes:

Value	Behaviour
(omitted) or `auto`	Inline display if the terminal supports it; otherwise write an auto-named file
`inline`	Force inline display; warn and fall back to file if no protocol detected
`-`	Write raw PNG bytes to stdout (no terminal escape sequences — useful for piping)
`path/to/file.png`	Write to the named file

termseries --output chart.png yahoo TSLA
termseries --output - yahoo TSLA | display   # pipe to ImageMagick
termseries --output inline yahoo TSLA

Use --protocol to override which inline graphics protocol is used (default: auto):

Value	Protocol
`auto`	Auto-detect from terminal environment (default)
`kitty`	Kitty Terminal Graphics Protocol
`iterm2`	iTerm2 OSC 1337 Inline Images Protocol
`sixel`	Sixel graphics

This is especially useful inside tmux or other multiplexers where terminal detection can fail:

termseries --output inline --protocol iterm2 yahoo TSLA

Both options can be persisted in termseries.env:

# termseries.env
OUTPUT=inline
PROTOCOL=kitty

Precedence (highest to lowest): CLI flag → config file → auto-detection.

Development

git clone https://github.com/deeplook/termseries.git
cd termseries
uv sync --all-extras
uv run pre-commit install
make test

Contributing

See CONTRIBUTING.md.

License

MIT

Name		Name	Last commit message	Last commit date
Latest commit History 112 Commits
.github		.github
images		images
src/termseries		src/termseries
tests		tests
tools		tools
.gitignore		.gitignore
.pre-commit-config.yaml		.pre-commit-config.yaml
.python-version		.python-version
CHANGELOG.md		CHANGELOG.md
CONTRIBUTING.md		CONTRIBUTING.md
Dockerfile		Dockerfile
LICENSE		LICENSE
Makefile		Makefile
README.md		README.md
SECURITY.md		SECURITY.md
docker-compose.yml		docker-compose.yml
example.mplstyle		example.mplstyle
pyproject.toml		pyproject.toml
termseries.env.example		termseries.env.example
uv.lock		uv.lock

Navigation Menu

Repository files navigation

termseries

Features

Data Sources

Chart Modes

Terminal Rendering

Interactive TUI

Customization

Clipboard & Output

Developer Experience

Installation

Quick Start

CSV File Format

Fitbit JSON conversion

Shared Options

Time range syntax (all subcommands)

Seasonal Mode

Yahoo-specific Options

Polymarket-specific Options

Home Assistant Setup

Custom Styles

Built-in theme defaults

Example override file

Environment Variables

Theme

Output

Development

Contributing

License

About

Releases

Packages

Contributors

Languages

Folders and files

Latest commit

History

Repository files navigation

termseries

Features

Data Sources

Chart Modes

Terminal Rendering

Interactive TUI

Customization

Clipboard & Output

Developer Experience

Installation

Quick Start

CSV File Format

Fitbit JSON conversion

Shared Options

Time range syntax (all subcommands)

Seasonal Mode

Yahoo-specific Options

Polymarket-specific Options

Home Assistant Setup

Custom Styles

Built-in theme defaults

Example override file

Environment Variables

Theme

Output

Development

Contributing

License

About

Topics

Resources

Contributing

Security policy

Stars

Watchers

Forks

Releases

Packages

Contributors

Languages
