feat(studio): align Settings sections and About with the prototype

[peppescg]

Stack: part of gh stack #2227, on top of #2251 (chat approvals). It was rebased there after the screenshots were taken, with no conflicts. The gates were rerun on the rebased head: server 195, web 1,039, browser 66. The screenshots are labelled with the pre-rebase head ea96ca9de, which has identical settings code.

Summary

This is part (b) of the Settings, Shortcuts, and About alignment (#2206, part of #2210). It's stacked on part (a), the shortcuts page, so review that first. Settings now uses the prototype's section grouping, labels, icons, and navigation look, and the prototype's per-section UI for Personalise, Agent, Permissions, Providers, Models, Storage, Diagnostics, and Labs. About is split into a Studio card and an agent card. Personalise gains the prototype's Starter prompts preference, and the new-chat greeting honours it.

Studio keeps its route structure and slugs (/workspace/settings/$section with providers, models, mcp-tools, about, and the rest), its section order, and its legacy redirects. Settings stays read-only, and it only shows data the BFF already serves. The "No regression" section has the proof.

What changed

Navigation (settings-sections.ts, settings-workspace.tsx)

• Groups: Preferences, Agent runtime, Experimental (new, holds Labs), and Support. Each section now carries the prototype's lucide icon (UserRound, Palette, Bot, ShieldCheck, Server, Network, Database, Brain, GraduationCap, Activity, FlaskConical, CircleHelp; Models, which the prototype doesn't have, uses Boxes).
• Labels: Profile becomes You and Appearance becomes Personalise, as in the prototype. The slugs stay profile and appearance.
• Desktop nav: the prototype's w-44 column, gap-5 groups, px-2 items with bg-muted for the current section, and a gap-10 gutter before the content. Like the prototype's desktop nav, it shows no icons.
• Phone picker: the native section picker takes the prototype's inset-grouped row look (rounded-2xl bg-muted/50, 15px text) with the current section's icon on the left and a chevron on the right.
• Breakpoints: the nav and picker pivot at 500px (min-[500px]:), and so does every grid in the files this PR touches. No sm: or md: classes are left in them.
• Layout: the content column keeps the prototype's max-w-3xl reading width, with space-y-5 between cards.

Section pages

• Shared grammar (settings-card.tsx): adds the prototype's SettingsRow (label and description on the left, control on the right, hairline dividers) and a FactList/FactRow pair for read-only facts, in the prototype's About-card look. SettingsCard and Note are unchanged.
• You: the name and picture are SettingsRows ("Your display name", "Shown on your messages."), with a labelled input. The sign-in session facts become a fact list.
• Personalise: three cards, as in the prototype:
  • Appearance: Theme, Palette, Interface scale (round 44px steppers), and Sidebar side, which is hidden below 500px because the chat list is full screen there.
  • Chat: Start on, Starter prompts (new), Messages while the agent works, and Tool activity.
  • Notifications: Browser notifications, when the browser supports them.
• Agent: the name and picture rows match You. The Agent behavior card shows "Steering during a run" as an Available/Not enabled badge row, plus the managed note.
• Permissions: a read-only Safety level row with the prototype's posture badge: Strict (outline), Trusted (info), Auto (warning), Yolo (destructive). An unknown tier shows as reported, and a missing one shows "Not reported".
• Providers: the prototype's bordered list. Each row has a status dot, the provider name, its state and model count ("Ready · 1 model"), and the BFF's hint when the provider isn't ready. The whole row links to Studio's provider detail page.
• Models: Default model and Routing become a fact list. The model cards and the personal Visible switch are unchanged.
• MCP tools: MCP support and Connector status become a fact list.
• Storage: as in the prototype, the status badge and a round Refresh button share the first row, and the facts follow. Studio's managed-by-deployment note moves below the facts. Loading, failure, and "cannot report" states now sit inside the Storage card instead of replacing it.
• Diagnostics: the daemon facts are the same component About uses, followed by the storage-health line and the logs and usage note.

About (about-cards.tsx)

• About Mecatl Studio: Studio build and SDK version, then Documentation, Report a problem, and Keyboard shortcuts.
• About the agent: daemon build, daemon implementation, runtime source, connection, and deployment, then Copy support summary and "Include these details when you report a problem." The copied summary is byte-identical to before.
• Sign-in: its own card, shown only when someone is signed in, with the existing sign-out control.

Runtime status line and live regions

Each runtime-backed section now shows its loading, offline, or failure note inside the section's own card, through one RuntimeStatusLine component. Loading notes carry a small spinner. Loading and offline notes are role="status". Failed reads, and an incompatible agent, are role="alert". The same applies to the storage states, the sign-in session check, and the "no providers" and "no models" notes. The wording is unchanged, and cached facts stay hidden until the runtime validates, as before.

Starter prompts

• useShowStarterPrompts() in lib/profile-preferences.ts stores studio.profile.starter-prompts through Studio's account-scoped storage. The prompts are shown by default, and the key holds hidden only while they're off. A sign-out or account change clears it, like every other studio. preference.
• DraftGreeting reads the preference and leaves out the chips when it's off. The heading stays. The chat change is limited to draft-greeting.tsx; chat-workspace.tsx is untouched.

Docs

user-docs/operating/studio.md names Personalise, the Starter prompts switch, the Safety level, and About's two cards.

Differences from the prototype

• Phone navigation: Studio keeps its native section picker, restyled as one of the prototype's inset rows with the section icon, instead of the prototype's drill-down index and back bar. /workspace/settings must keep redirecting to /workspace/settings/profile, and settings-accessibility.test.tsx pins the native select#settings-section. For the same reason, the "Settings" title stays on phones. This is a native <select> where Studio: use shadcn/ui primitives like the prototype and SEP (no custom components) #2201 prefers a primitive; it stays only because of that pinned contract.
• Section order: Studio keeps its order, which the route tests pin. So Diagnostics stays under Agent runtime (the prototype puts it under Support), and Providers, Models, MCP tools, and Storage come before Memory and Learning.
• Models: Studio keeps its Models section. The prototype folds models into Providers.
• Touch targets: nav items, steppers, the Starter prompts switch's hit area, and About's actions keep Studio's 44px minimum. The prototype uses about 32px.
• Page title: keeps Studio's shared text-page-title (34px) instead of the prototype's text-3xl, matching the other Studio pages.
• Personalise:
  • The scale row stays "Interface scale", because its buttons' pinned names are "Decrease/Increase interface scale". The prototype calls it "Text size".
  • Tool activity stays in the Chat card, because Studio has no chat-menu home for it and the accessibility test pins it. The prototype moved it to the chat menu.
  • Messages while the agent works keeps Studio's two choices (Queue message, Steer agent) and their wording. Studio's EnterSendBehavior has no "Always wait".
  • Notifications keeps Studio's copy and first-paint behaviour.
• Agent behavior: keeps Studio's spelling and its steering fact. The prototype shows only "The agent is run somewhere else…".
• Permissions, Providers, MCP tools, and Storage: keep Studio's managed-by-deployment notes instead of the prototype's generic external note. Providers keeps Studio's four states (Ready, Sign-in needed, Unavailable, Not ready), drawn with Studio's status tokens.
• About: the agent card lists Studio's five safe daemon facts and copies Studio's support summary. The prototype shows "Version" and "Managed here" and copies two lines. Studio links its own documentation and issue tracker.
• Runtime status line: Studio keeps masking a section until the runtime validates, so the line sits inside the section's card. The prototype shows a corner spinner above cards that keep rendering. The prototype's deployment label (behind its developer-tools switch) isn't ported, because About already shows the deployment.
• Starter prompts storage: Studio's account-scoped key (studio.profile.starter-prompts), cleared on sign-out, instead of the prototype's device key (mecatl-studio.hide-starter-prompts).
• Labs: Studio has no demo chat or developer tools, so Labs keeps its single note.

Out of scope

These need a product decision and are tracked separately:

• the MCP gateway sign-in card,
• the Diagnostics logs and usage cards (Diagnostics keeps its one-line note),
• the learning mode and sensitivity display, and
• any write path. Settings stays read-only.

Gaps

• Sign-in session check in the offline harness, pre-existing: in the screenshot harness, You's Sign-in session card stays on "Checking sign-in details…" on both trees. It doesn't happen in the unit tests, and this PR doesn't change that query. It should be looked at separately.

No regression

Pinning tests

settings-alignment.pinning.test.tsx was committed first, alone (8e07554d0), and passed on the old code (6 tests). It passes unchanged on the new code. It pins:

• the 13 slugs and their order, each loading /workspace/settings_/$section without a redirect
• the redirects: /workspace/settings and unknown slugs (including the prototype's own help, provider, gateway, chat, and notifications) go to profile; /workspace/settings/memory?item= goes to the fact page; /workspace/memory and /workspace/provider without an item go back to their sections
• both navigation modes: 13 nav buttons with one aria-current, a native picker with the 13 values and its label, and both calling onSectionChange
• the exact runtime, offline, and inventory state wording in all 11 runtime-backed sections, with cached facts and raw errors hidden
• the read-only contract: no inputs beyond the personal name fields and the model filter, no other select, and no save, apply, clean-up, posture, or gateway controls
• today's deployment facts per section, the provider detail link, and About's three links
• the greeting's four starter prompts with nothing stored

Existing tests

settings-accessibility.test.tsx, settings-navigation.test.tsx, and settings-route-interactions.test.tsx are unchanged and pass. So are settings-routes.test.tsx, about-page.test.tsx (including the exact copied summary and the five "Not reported" facts), settings-card.test.tsx, and storage-settings.test.ts.

Modified tests

• settings-workspace.test.tsx, "titles every section with a plain card heading": the expected headings change for two sections, as Studio alignment: settings, shortcuts, and About #2206 asks. About goes from ["About"] to ["About Mecatl Studio", "About the agent"], and Personalise from ["Appearance"] to ["Appearance", "Chat"] (Notifications isn't rendered in the test DOM). The assertion is still an exact toEqual on every section's headings.

New tests

settings-alignment.test.tsx (9 tests) covers the groups, labels, and icons; the 500px pivots in every section this PR owns; the live-region roles for each state; the Safety level badge for every tier; the provider row; About's two cards and the conditional Sign-in card; the shared daemon facts; and the Starter prompts preference end to end (switch, account-scoped key, greeting, reset on sign-out).

Gate counts

Gate	Base (b7ca46bbe)	This branch
Biome	428 files	431 files
Server	24 files / 195 tests	24 files / 195 tests
Web	136 files / 980 tests	138 files / 995 tests
Browser	66	66

task studio:check and task studio:browser pass on both. The web delta is the two new files: 6 pinning tests and 9 alignment tests. matlatl check --strict passes for the docs change (0 broken links or anchors).

Screenshots

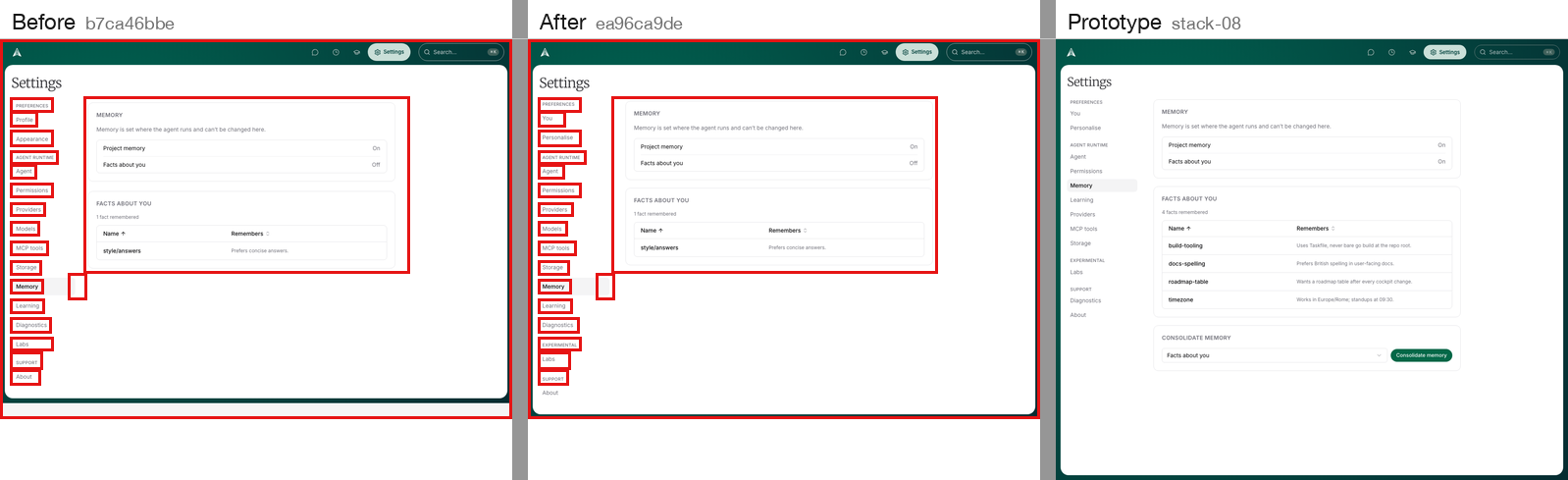

Before is b7ca46bbe, After is ea96ca9de, and Prototype is stack-08. Each tree was captured twice; the repeat runs differ by at most 194 pixels (the composer caret), so every red box is a real change. Desktop is 1280 wide and mobile is 390, both grown to the full height of the scrolling content. Where Before and After differ in height, the shorter shot is padded with a flat grey band, and the shell's top gradient, which scales with the viewport, gets a red box on phones. Both are capture artifacts, not changes.

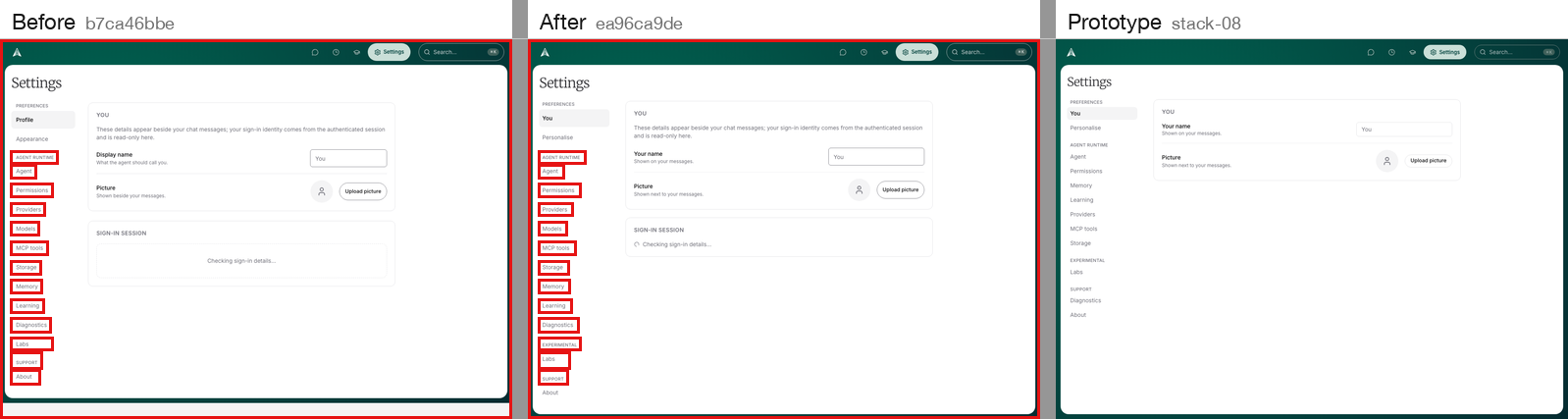

You

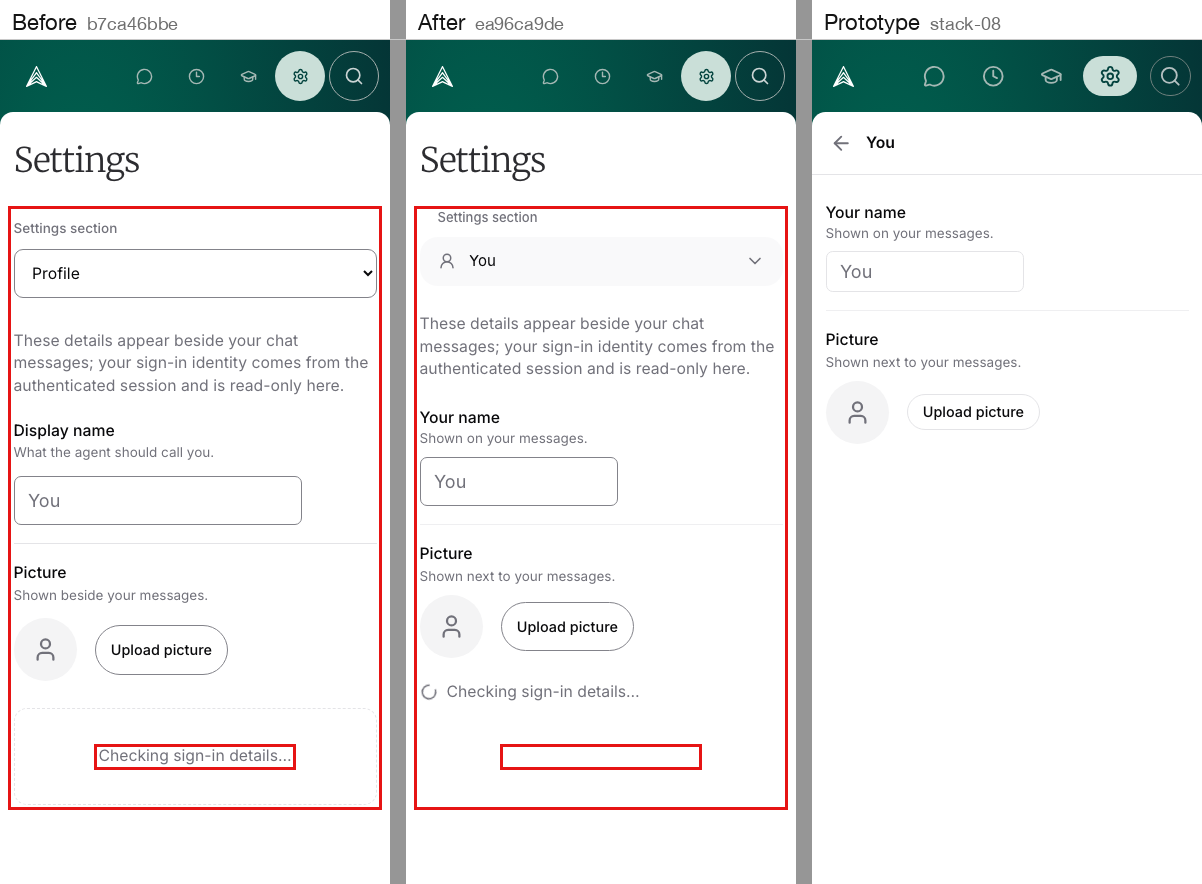

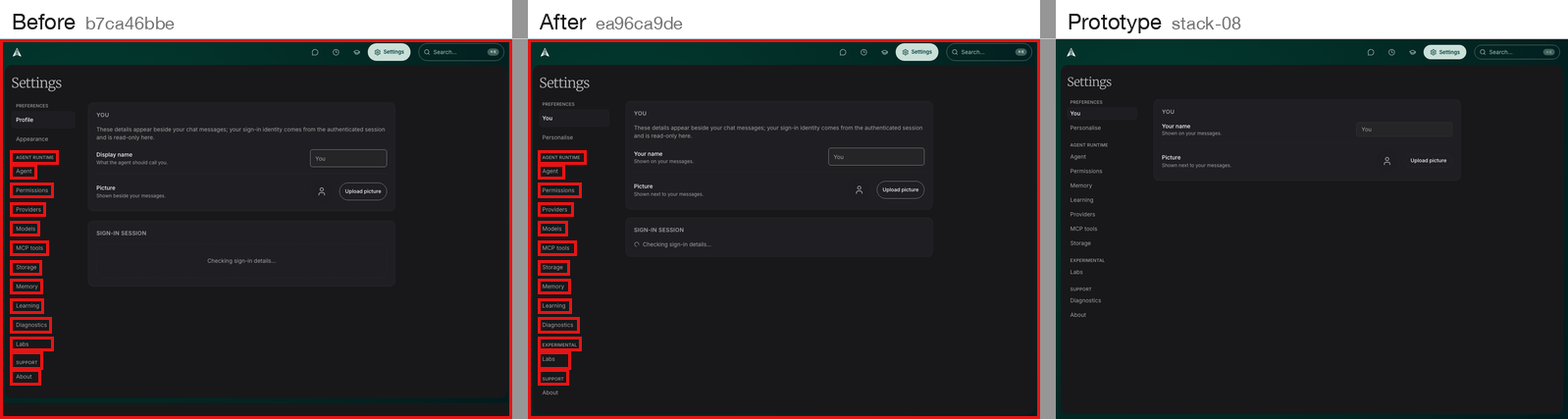

Matches the prototype's rows (Your name, Picture). Deviations: Studio keeps its explanatory note and the Sign-in session card; the phone keeps the section picker and the "Settings" title instead of the back bar.

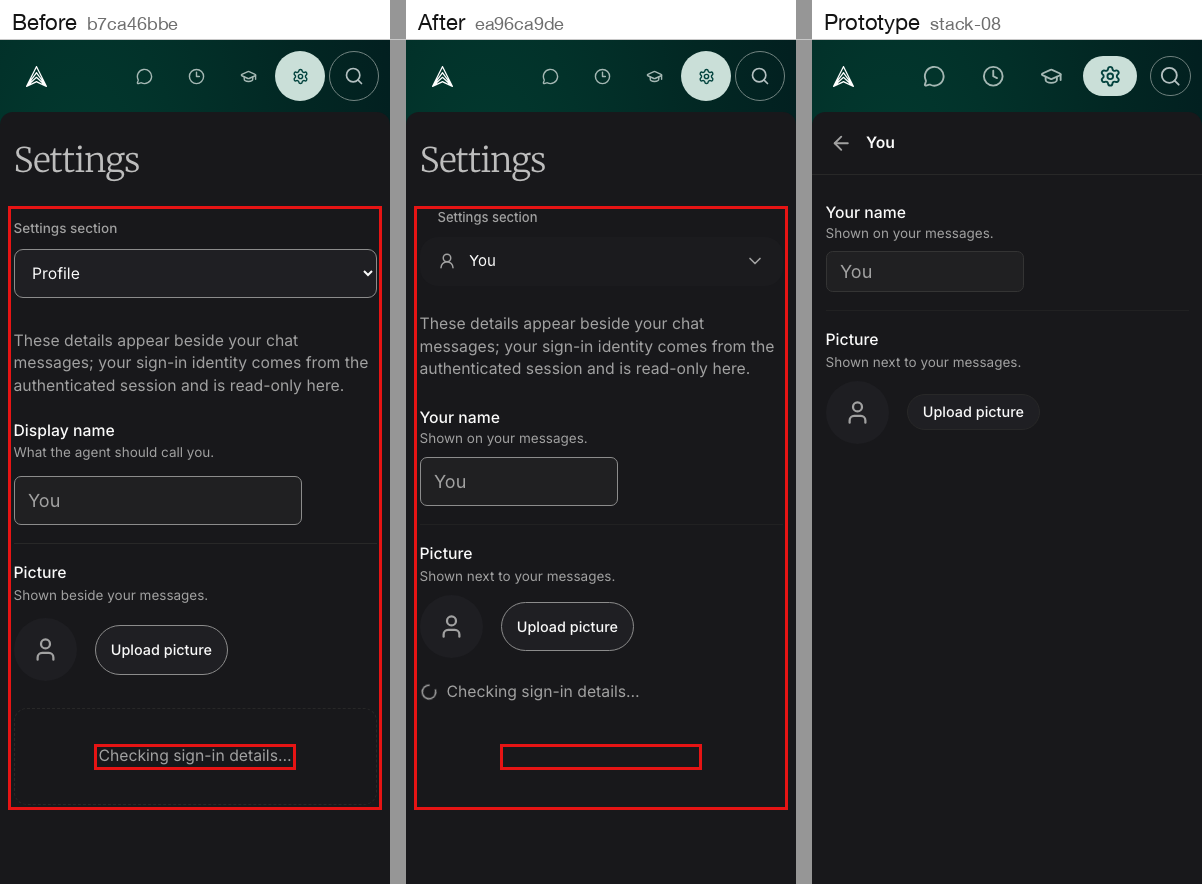

Desktop dark, mobile light, mobile dark

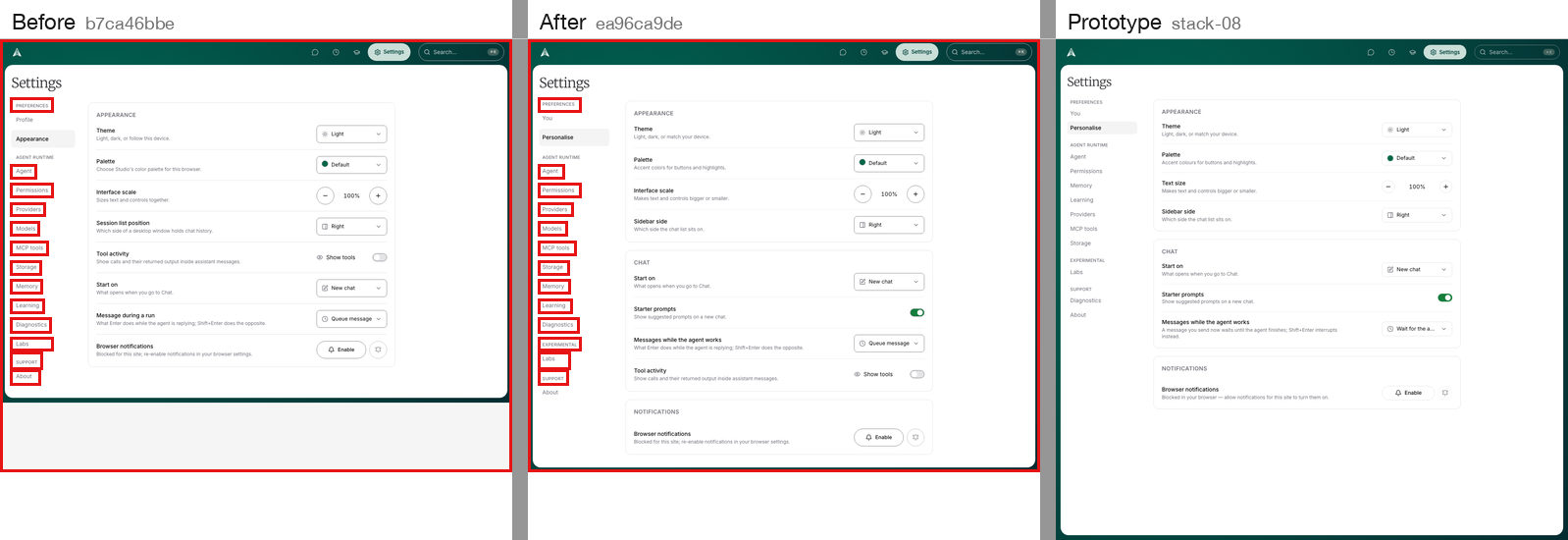

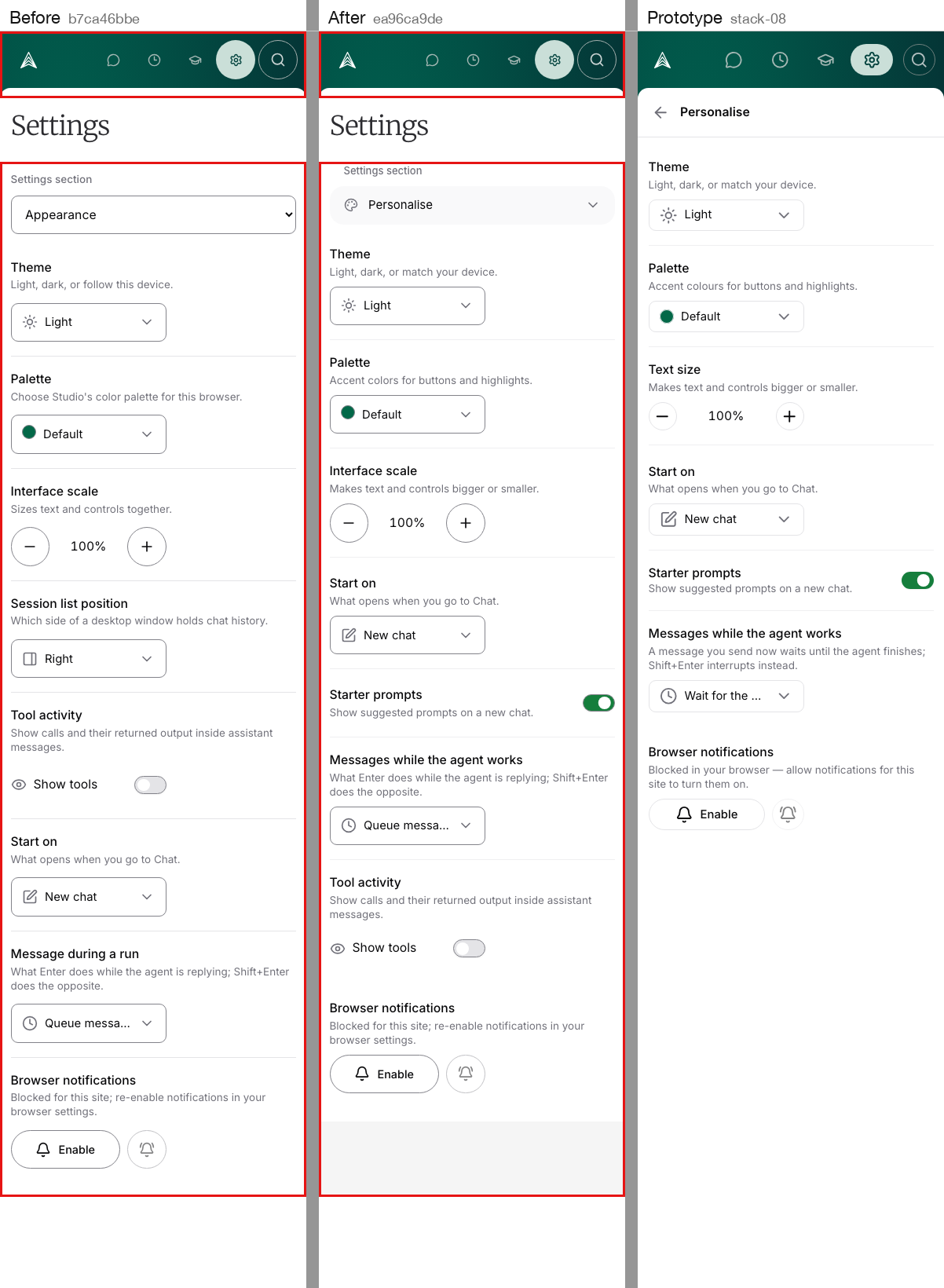

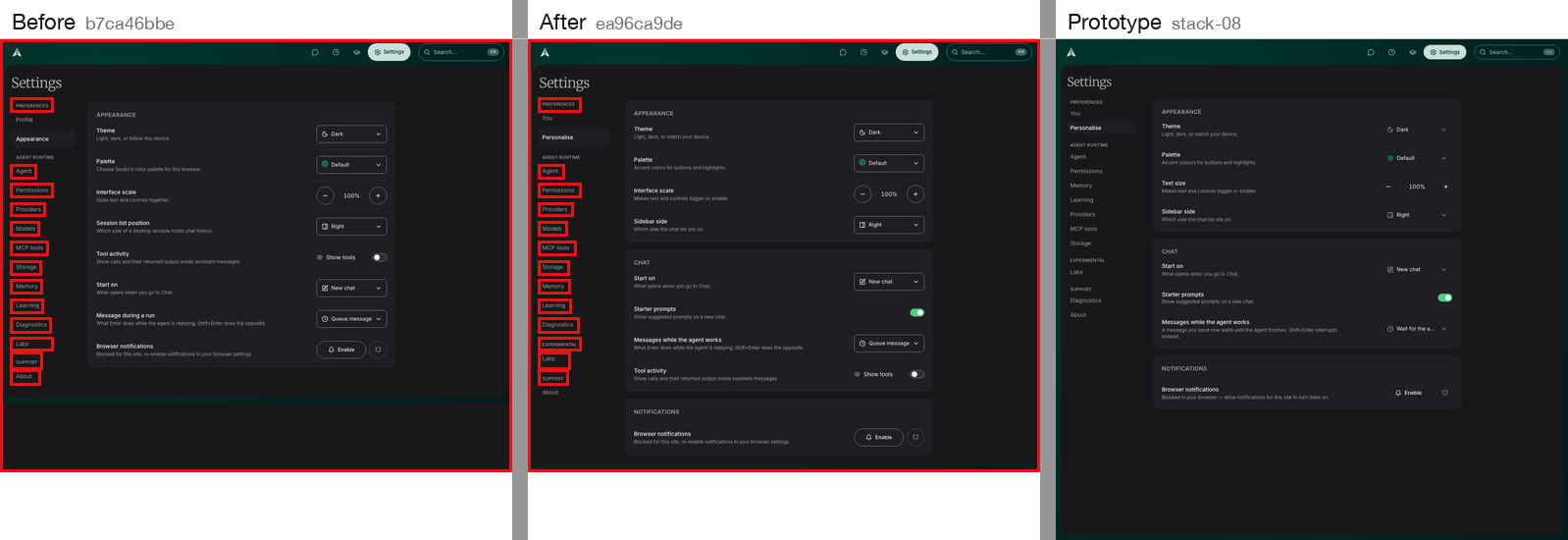

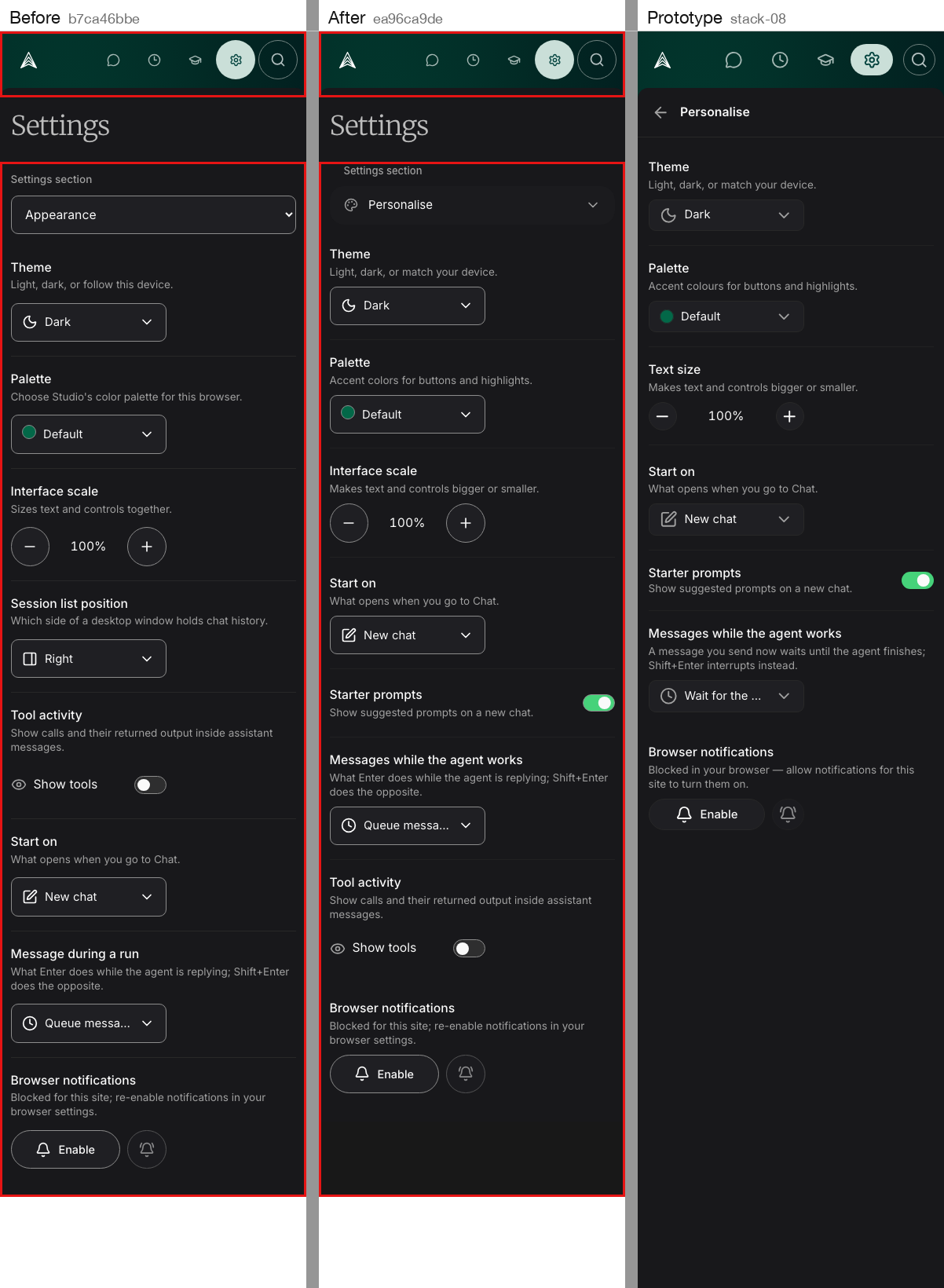

Personalise

Matches the prototype's Appearance, Chat (with the new Starter prompts switch), and Notifications cards. Deviations: "Interface scale" instead of "Text size", Studio's Tool activity row and busy-message wording, 44px steppers.

Desktop dark, mobile light, mobile dark

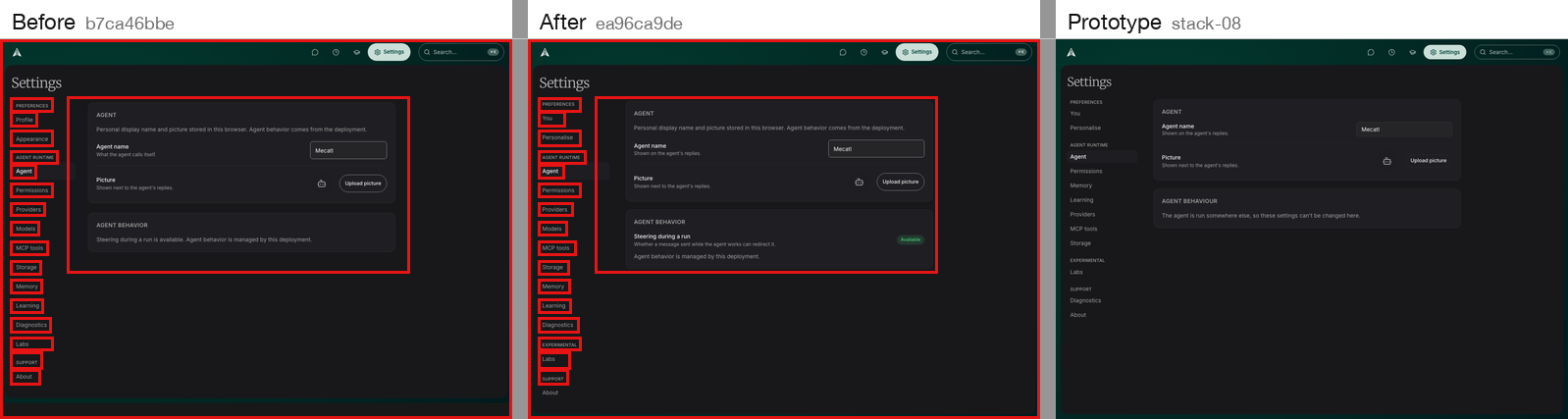

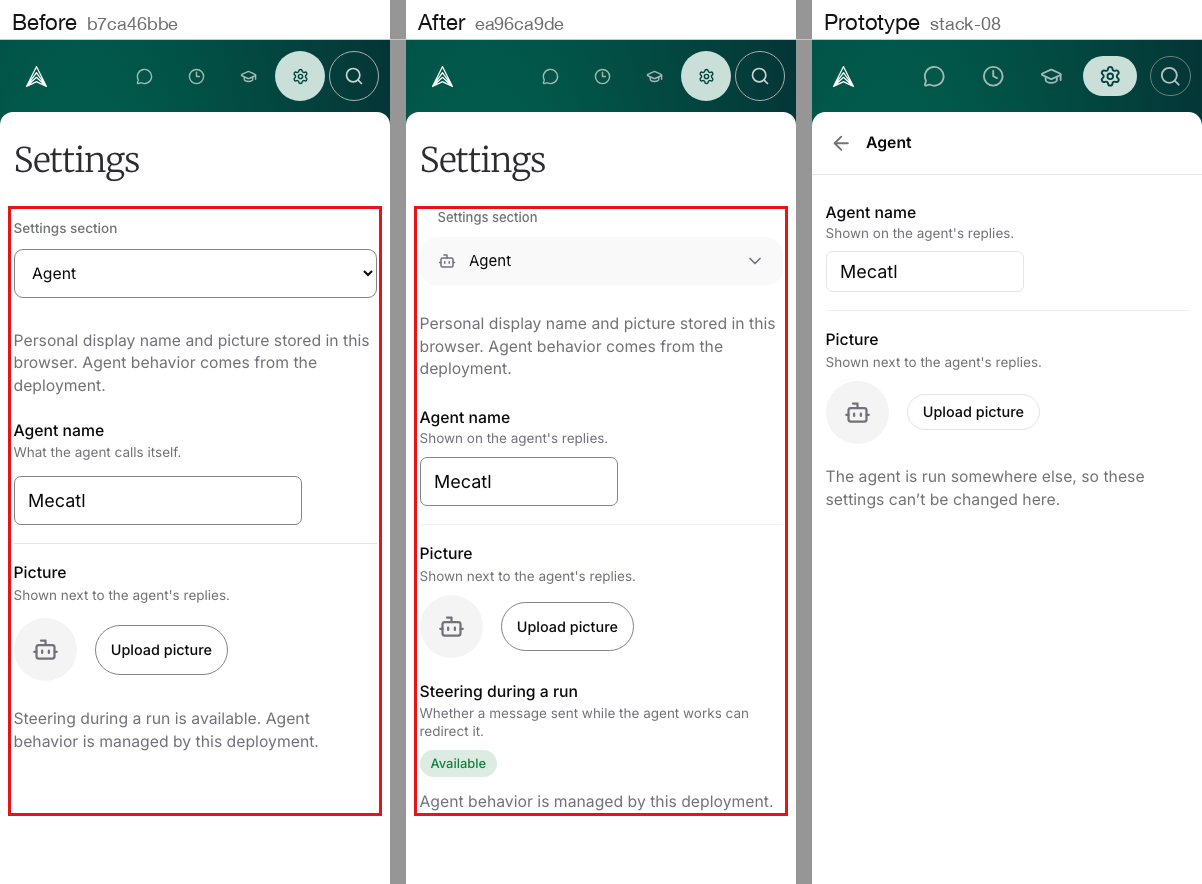

Agent

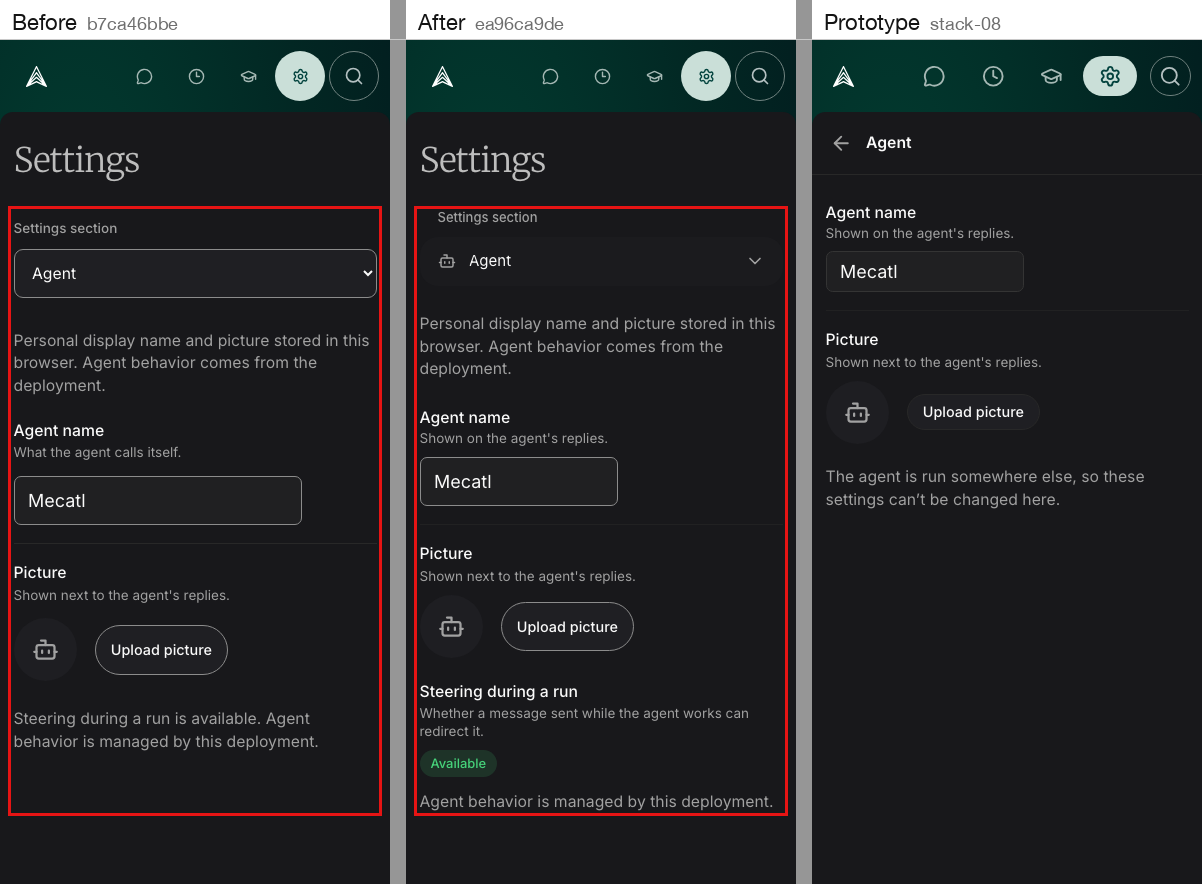

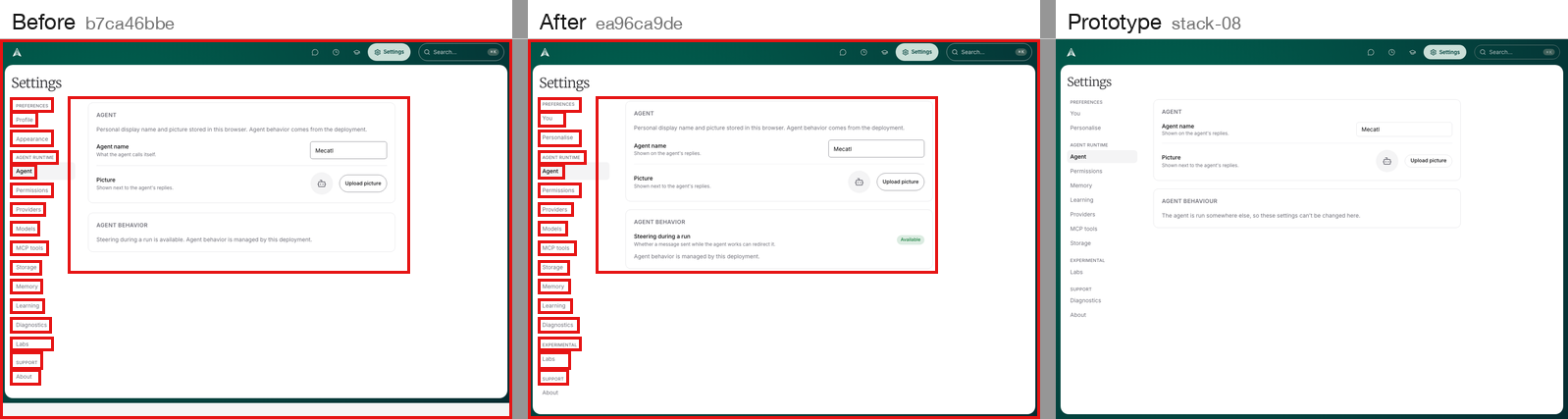

Matches the prototype's name and picture rows. Deviation: Agent behavior shows Studio's steering badge and managed note instead of the prototype's external-agent note.

Desktop dark, mobile light, mobile dark

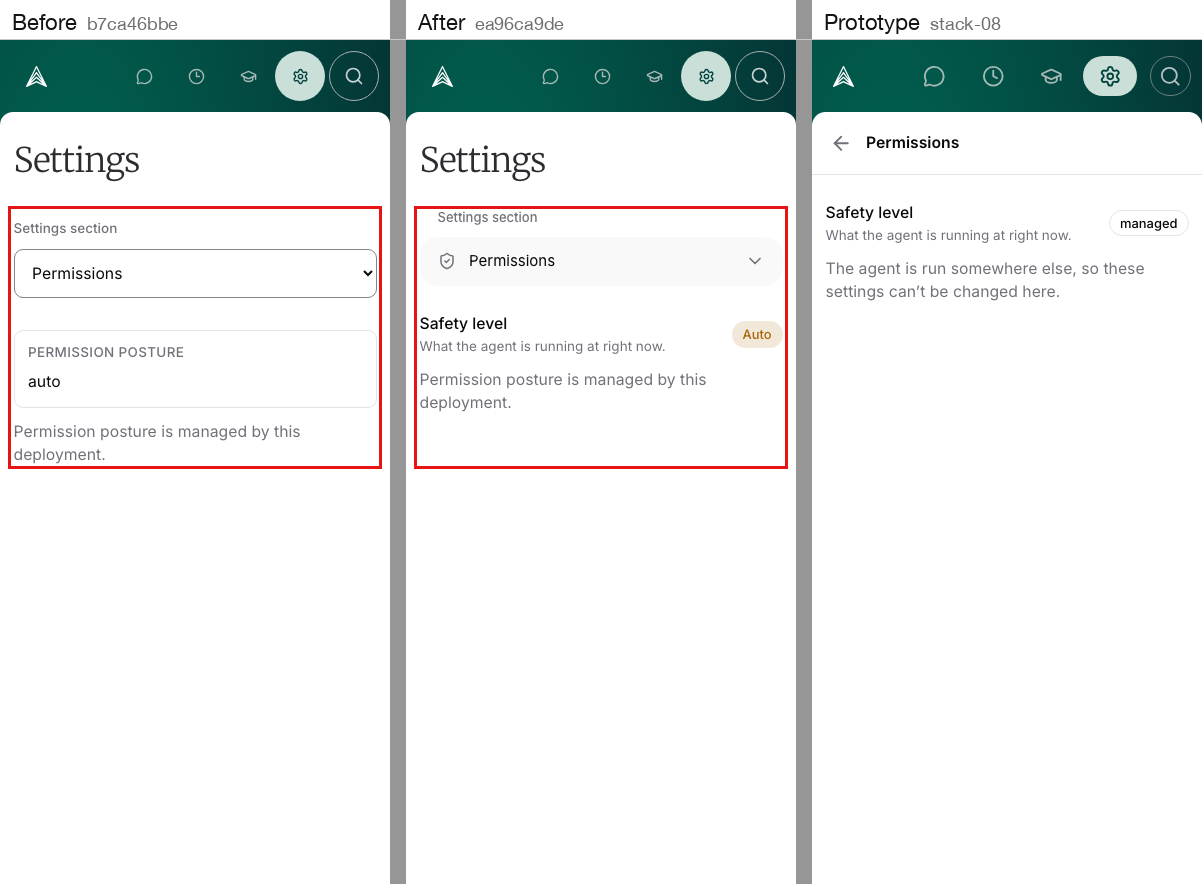

Permissions

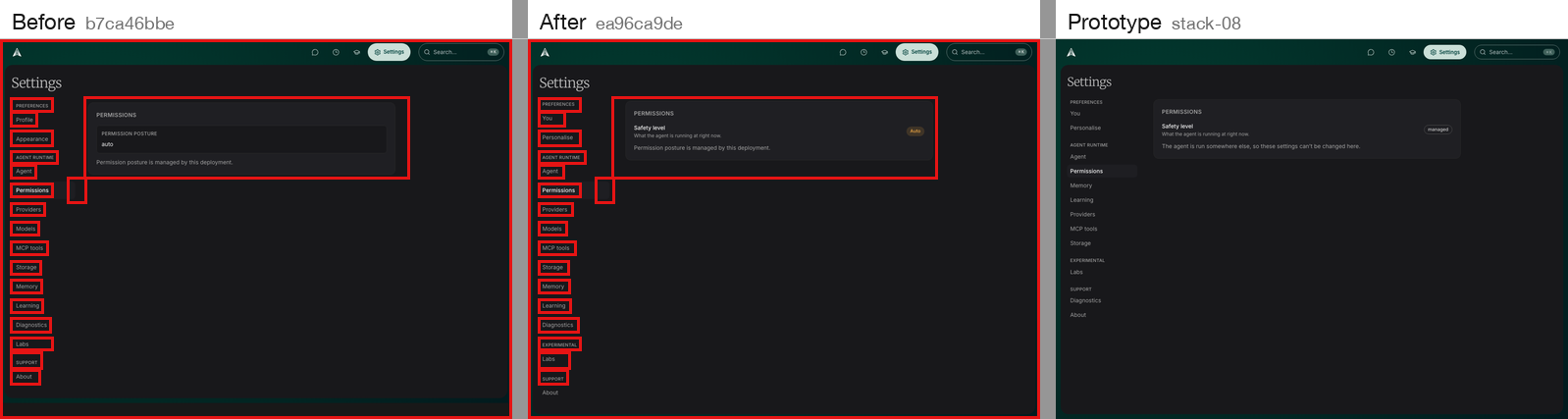

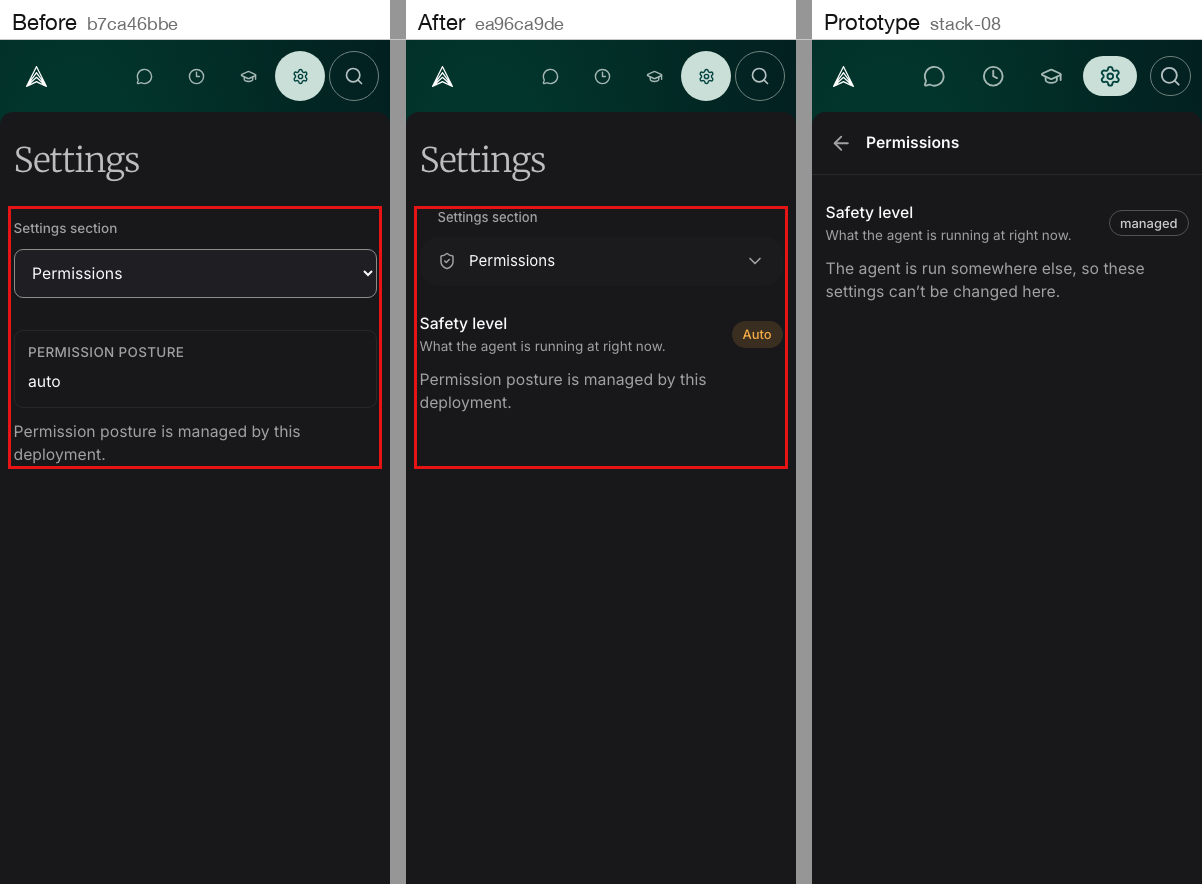

Matches the prototype's read-only Safety level row and posture badge (Auto shown in warning). Deviation: Studio's managed-by-deployment note.

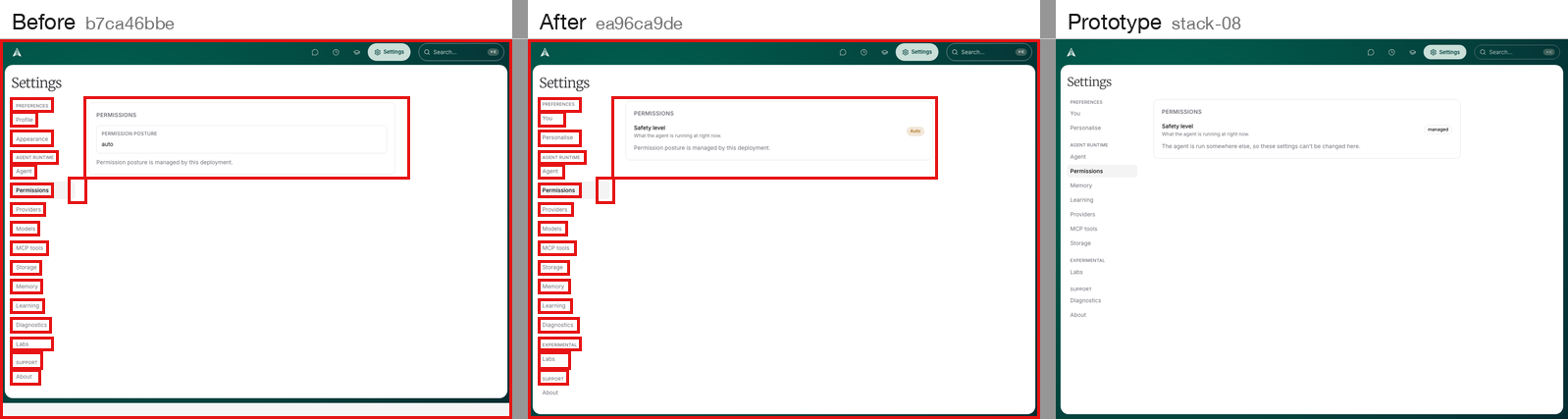

Desktop dark, mobile light, mobile dark

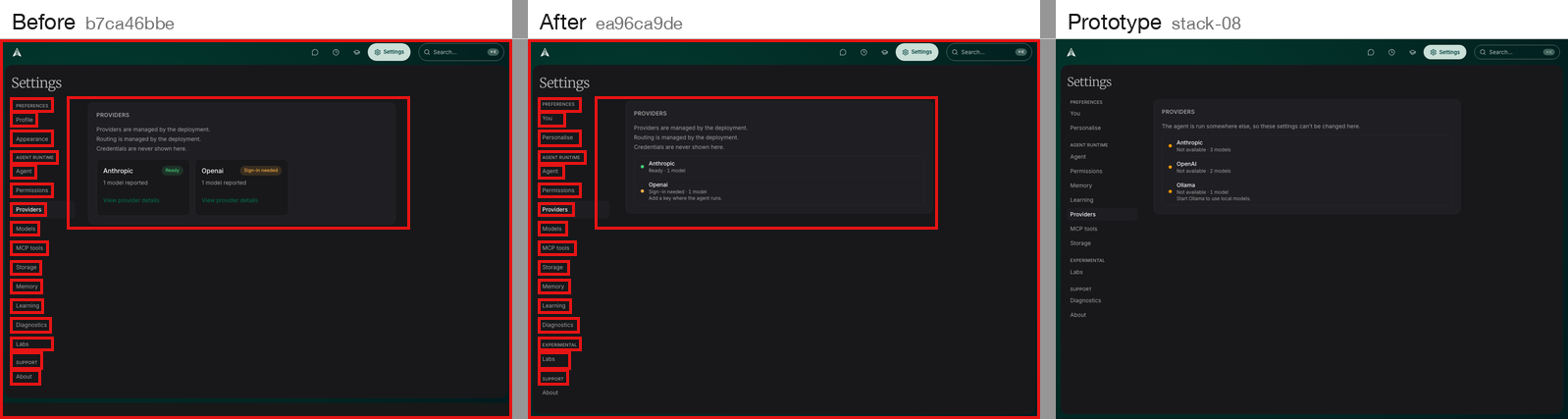

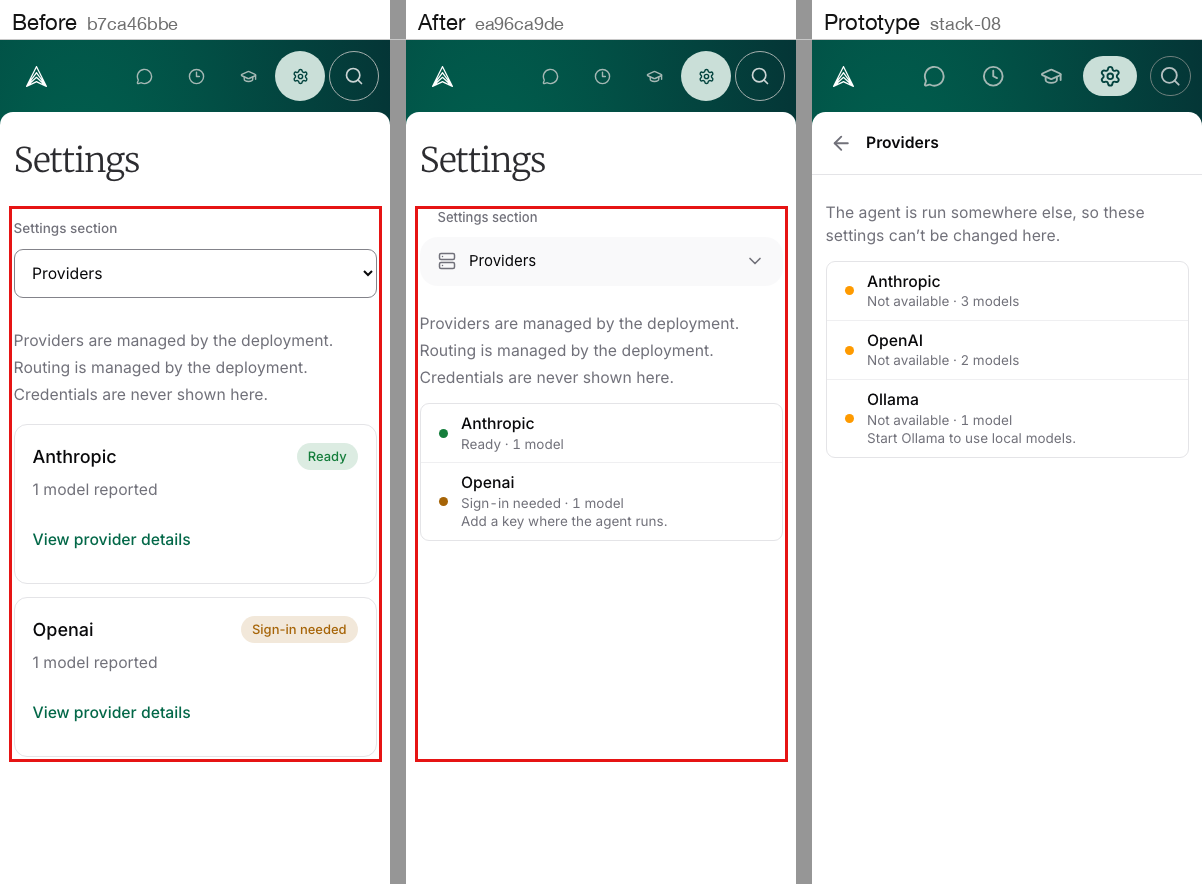

Providers

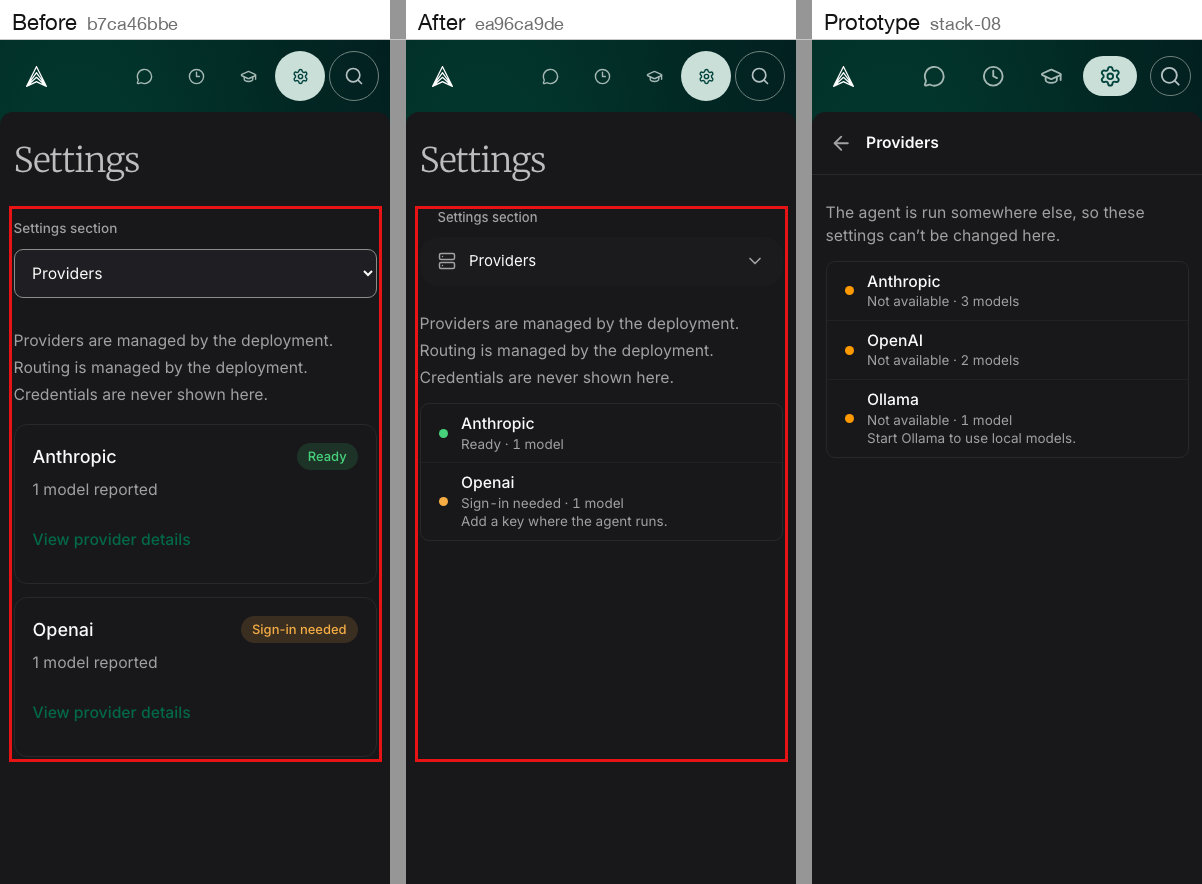

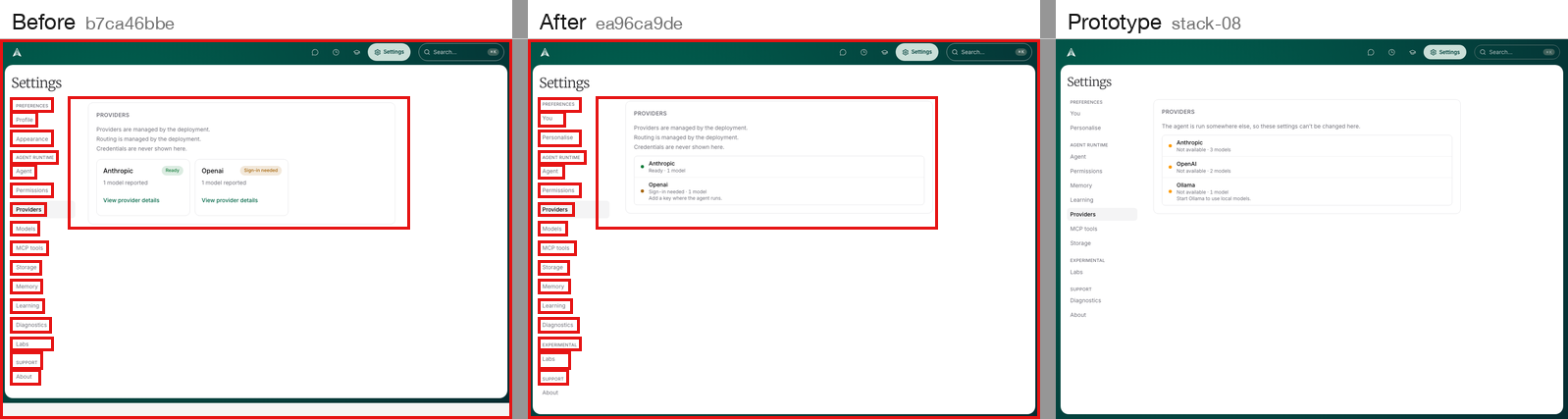

Matches the prototype's bordered provider list with status dots, state, model count, and the hint for a provider that isn't ready. Deviations: Studio's management notes and its four state words; rows link to Studio's provider detail.

Desktop dark, mobile light, mobile dark

Models

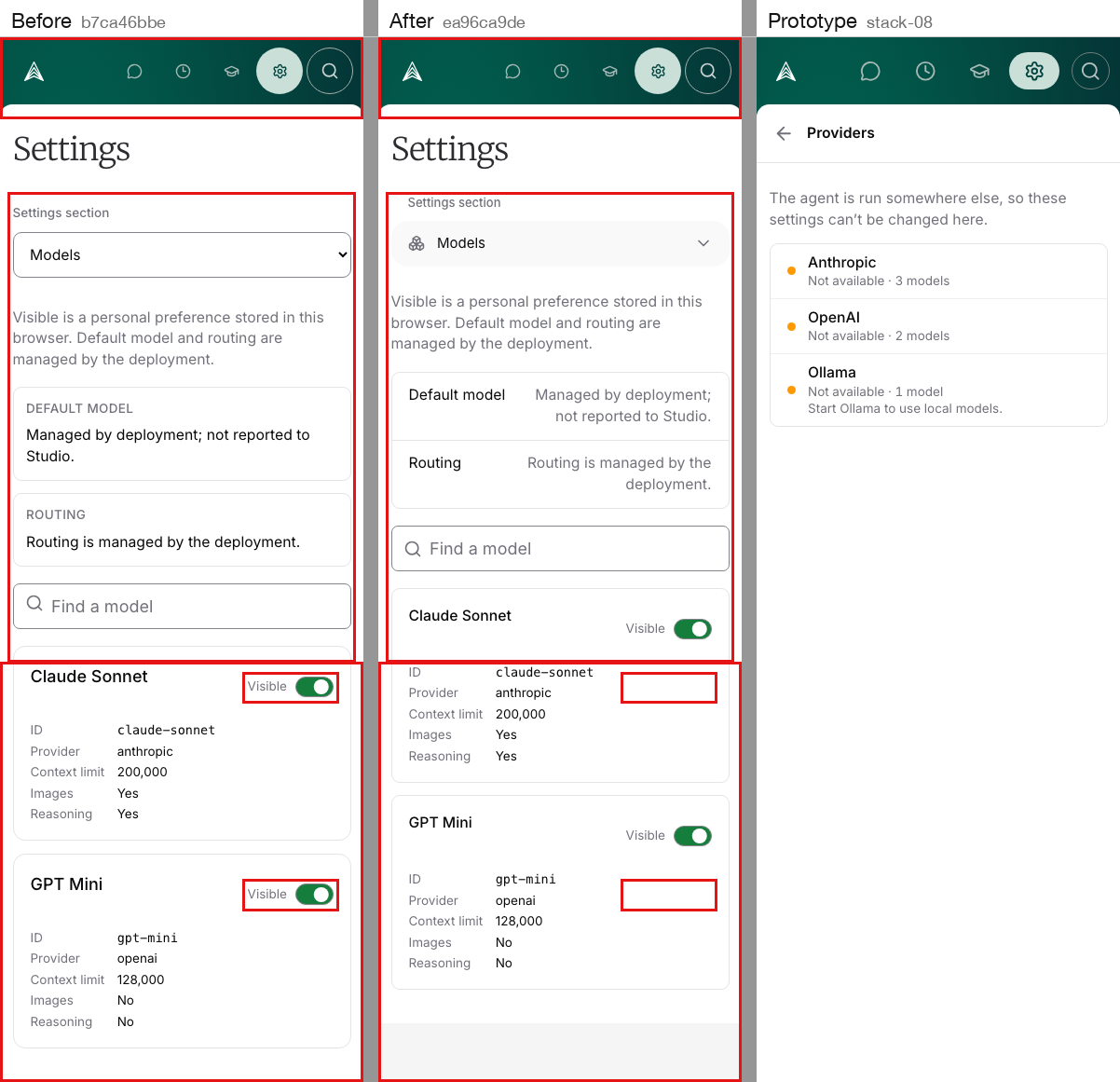

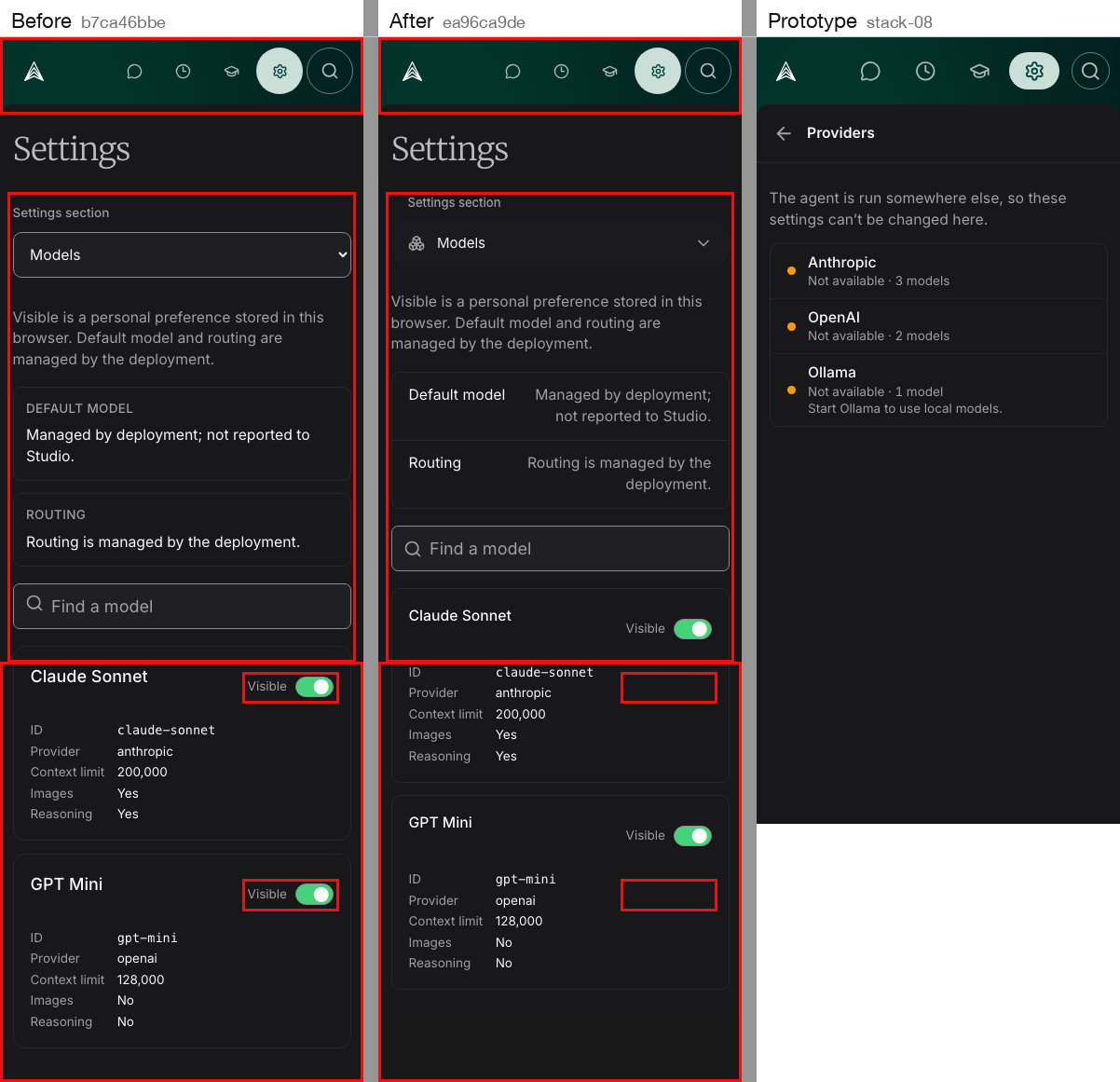

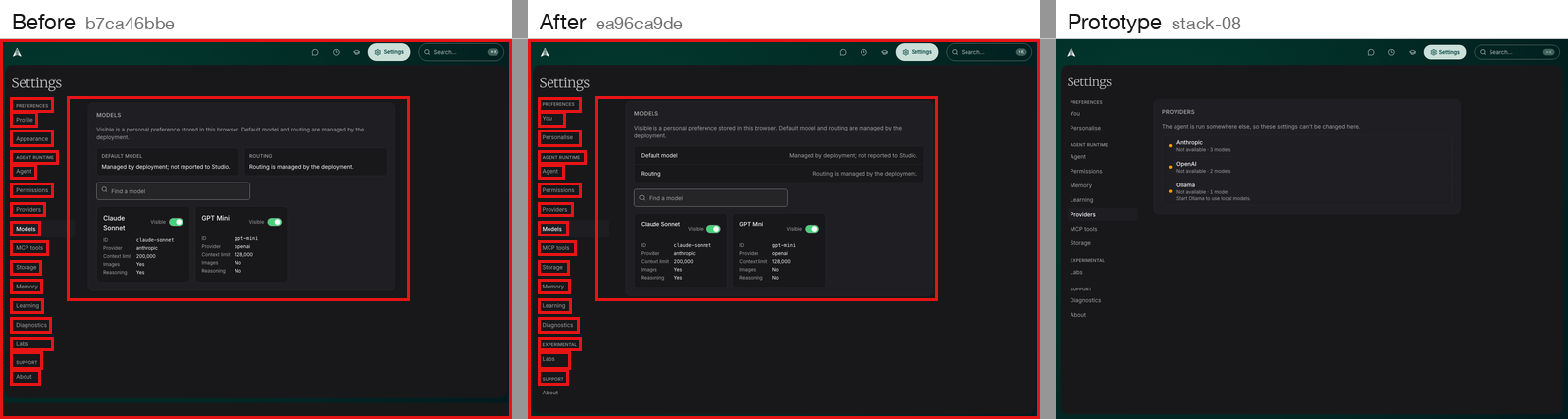

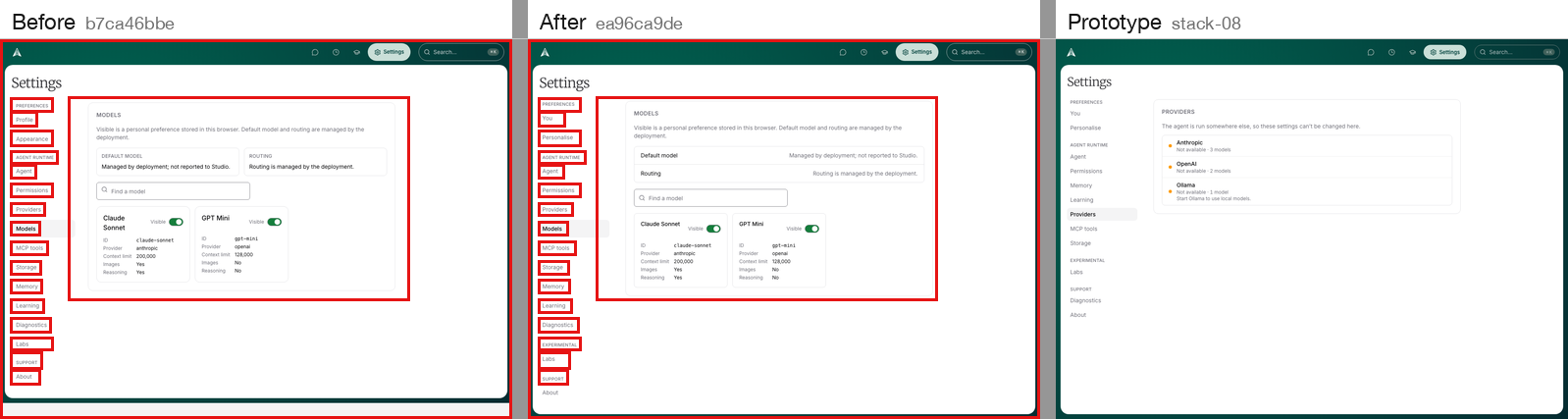

Studio-only section (the prototype folds models into Providers, shown for reference). Default model and Routing move to the prototype's fact-list grammar; the model cards are unchanged.

Desktop dark, mobile light, mobile dark

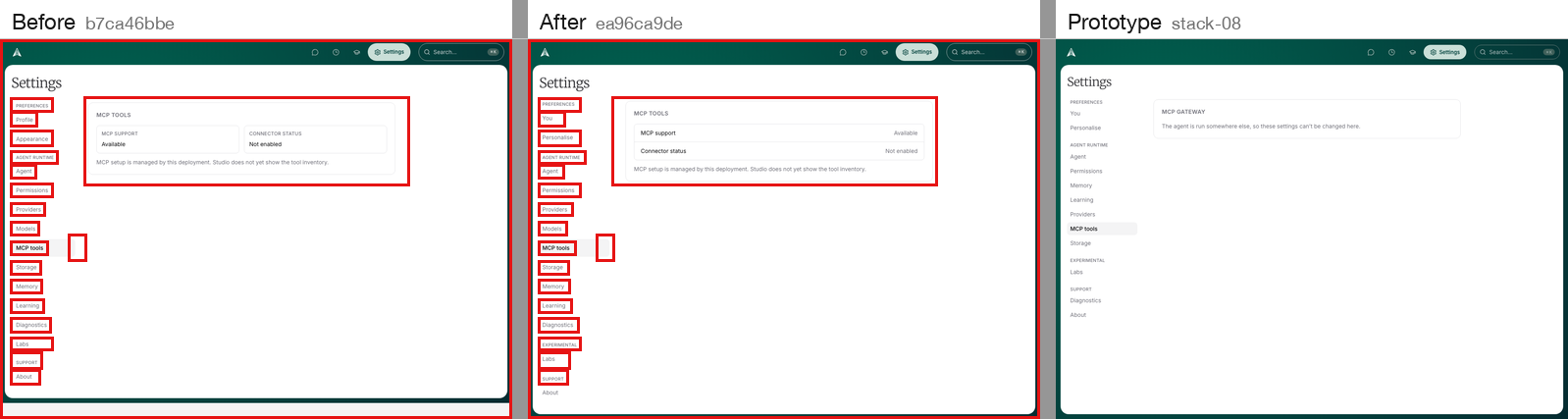

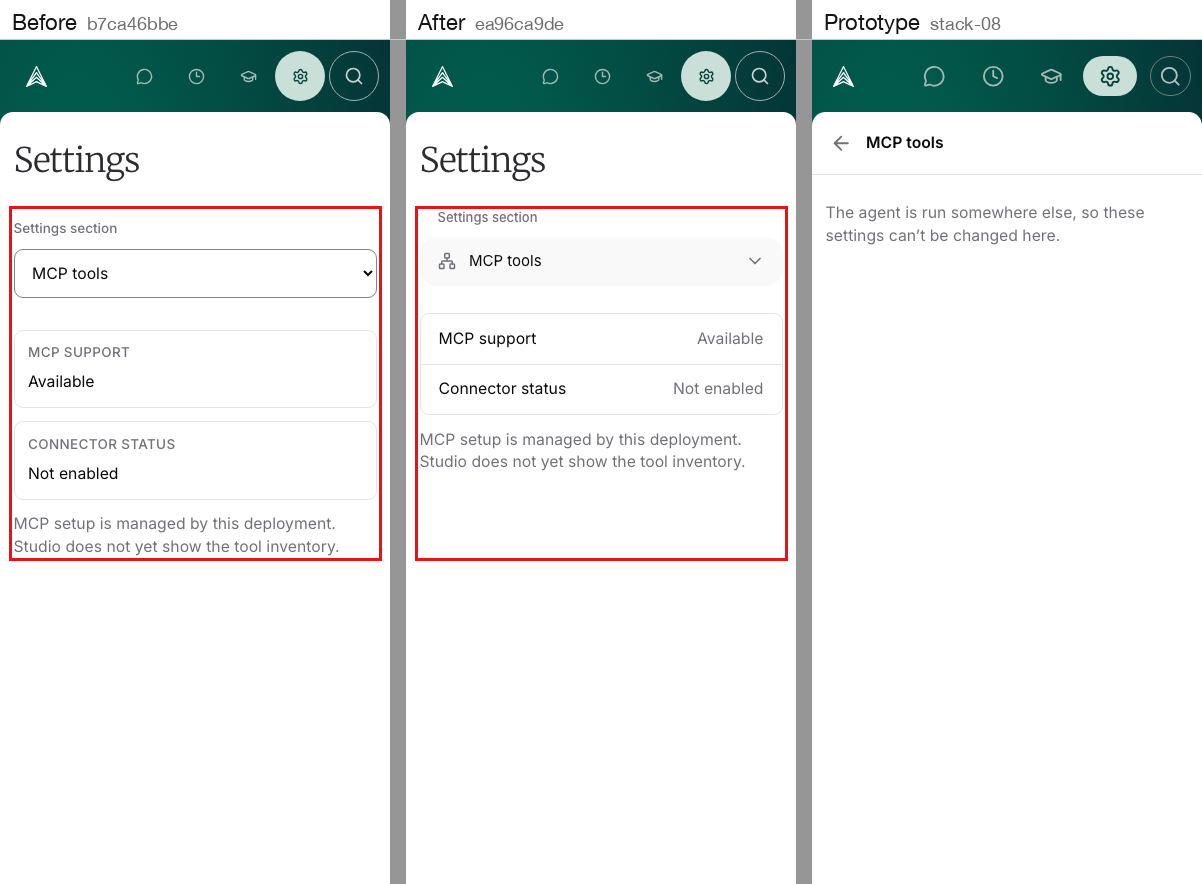

MCP tools

Fact-list grammar. Deviation: the prototype's gateway sign-in card is out of scope.

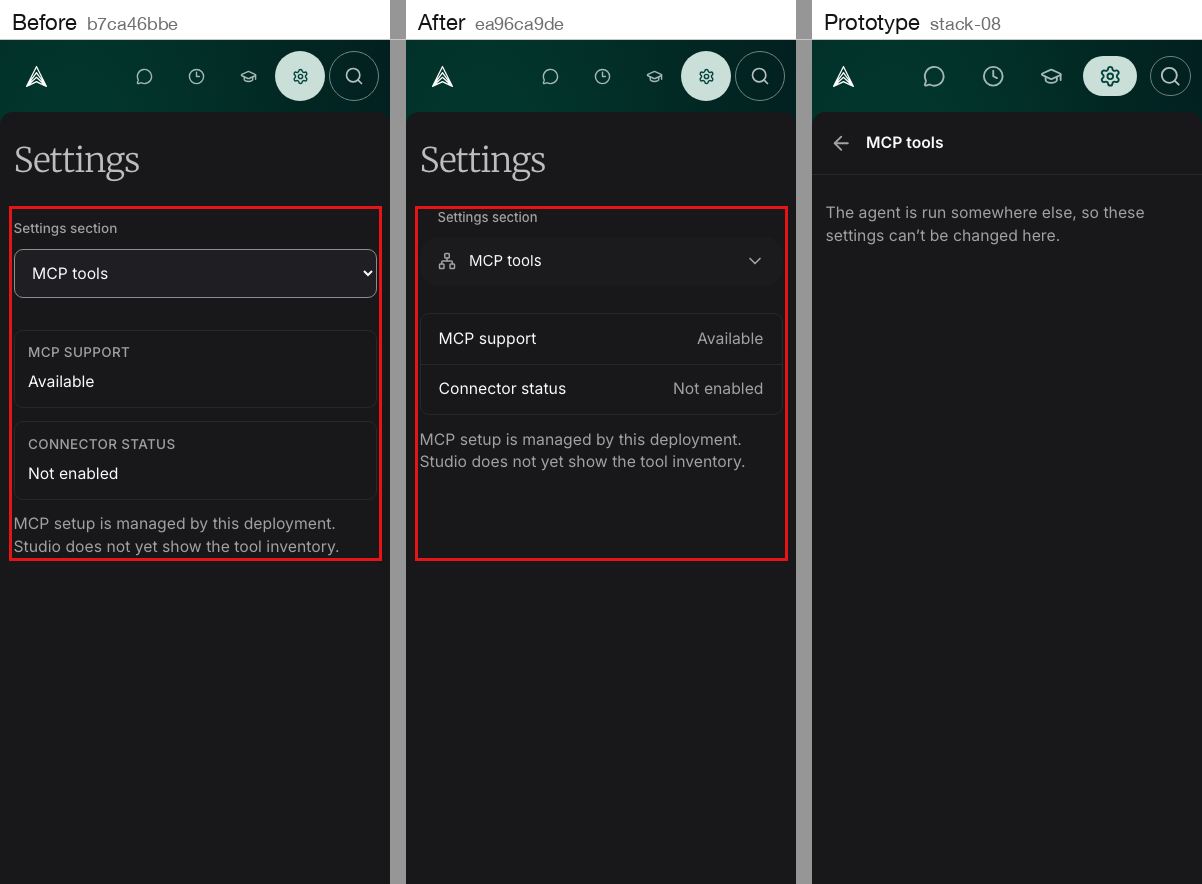

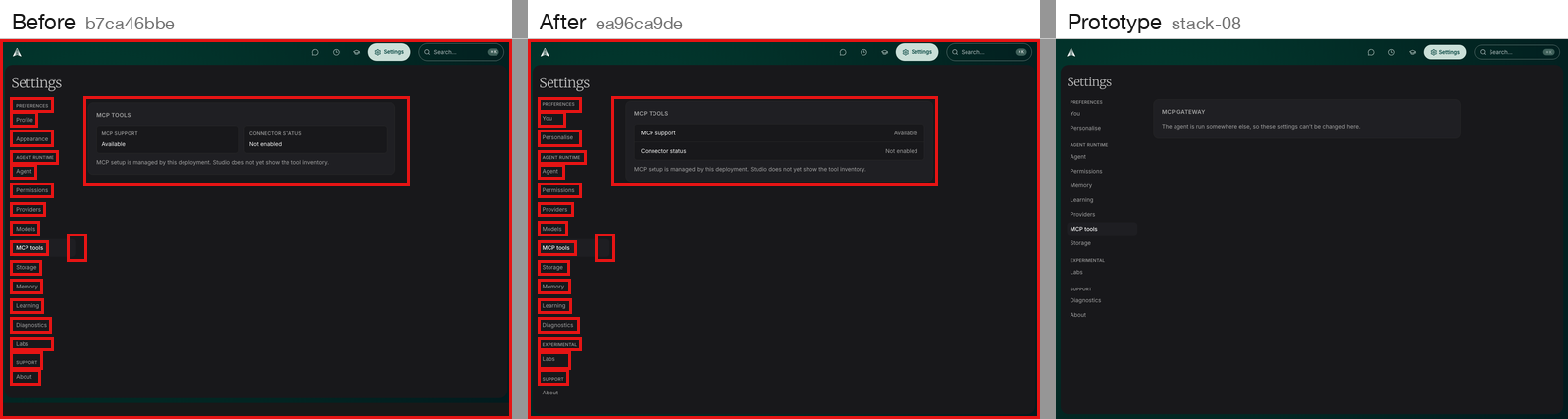

Desktop dark, mobile light, mobile dark

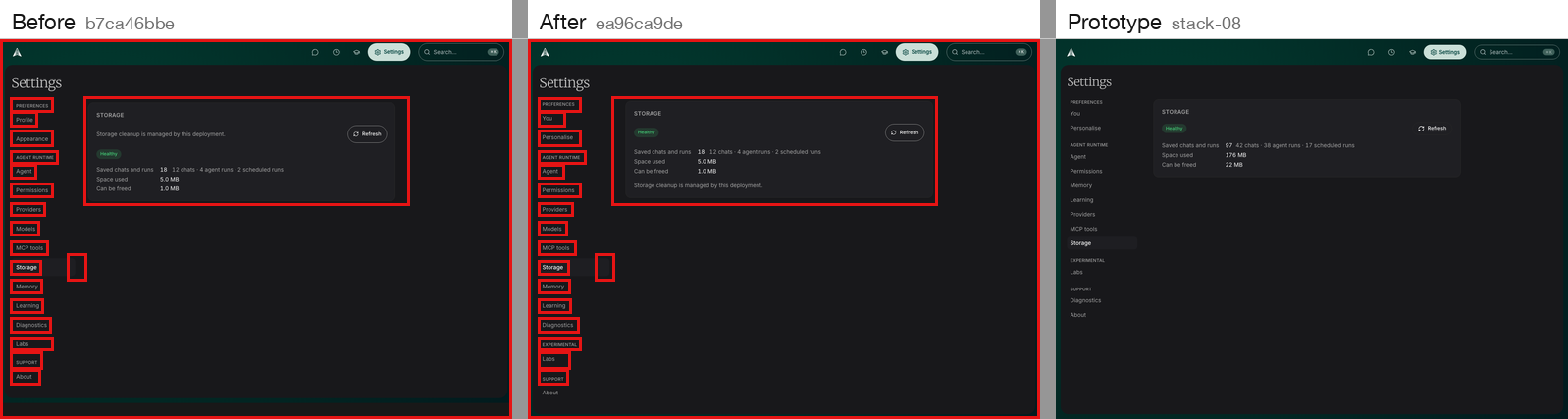

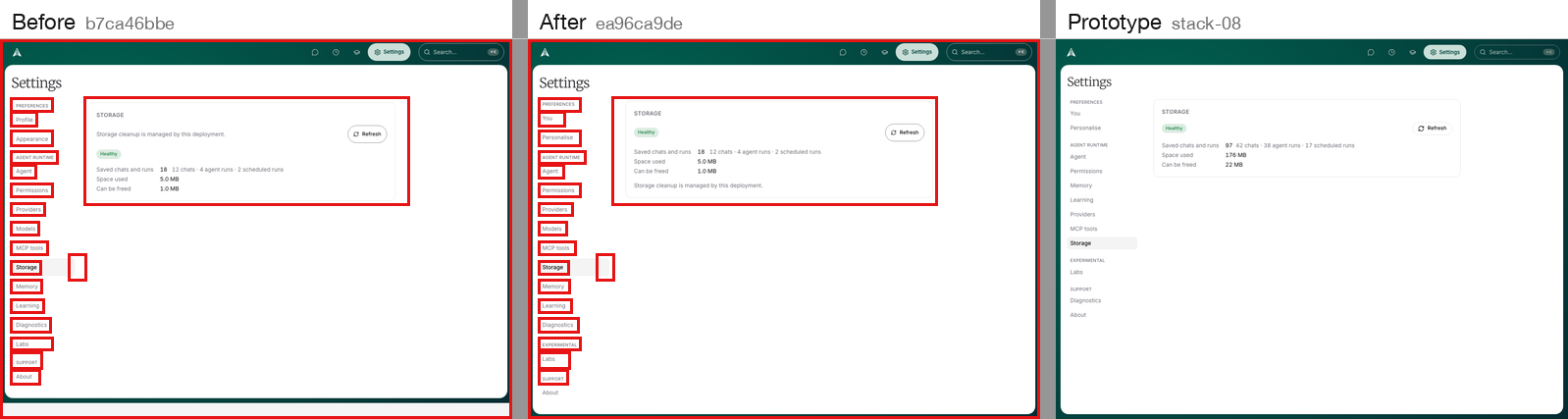

Storage

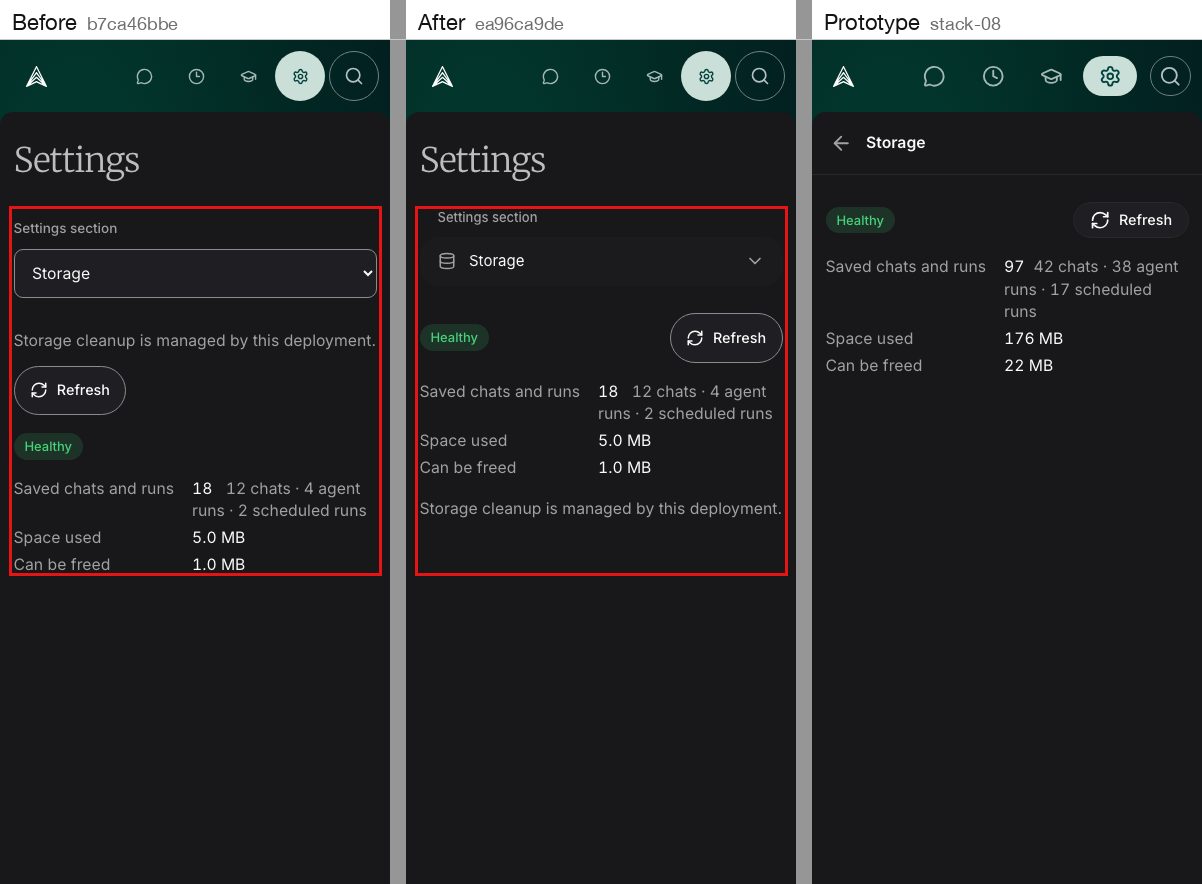

Matches the prototype: status badge and Refresh on one row, then the facts. Deviation: Studio keeps its managed-by-deployment note, now below the facts.

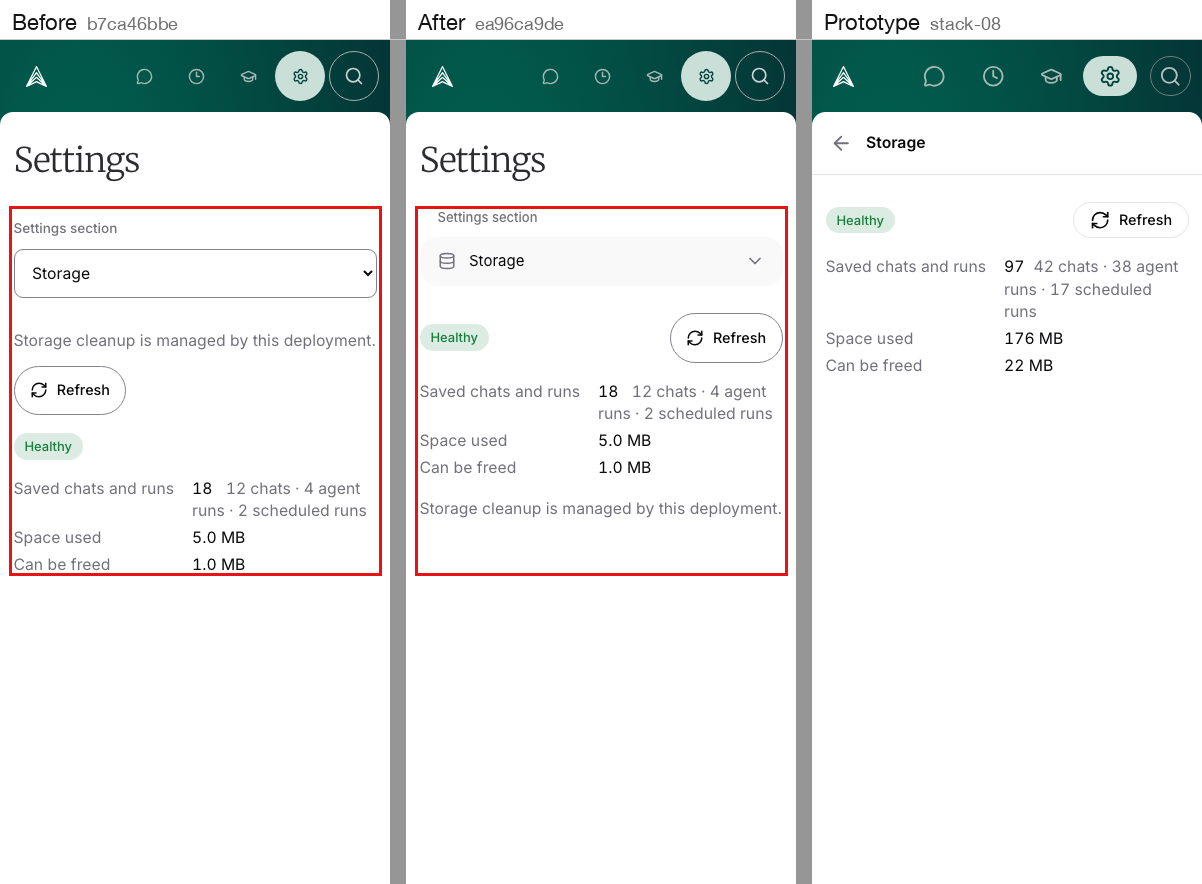

Desktop dark, mobile light, mobile dark

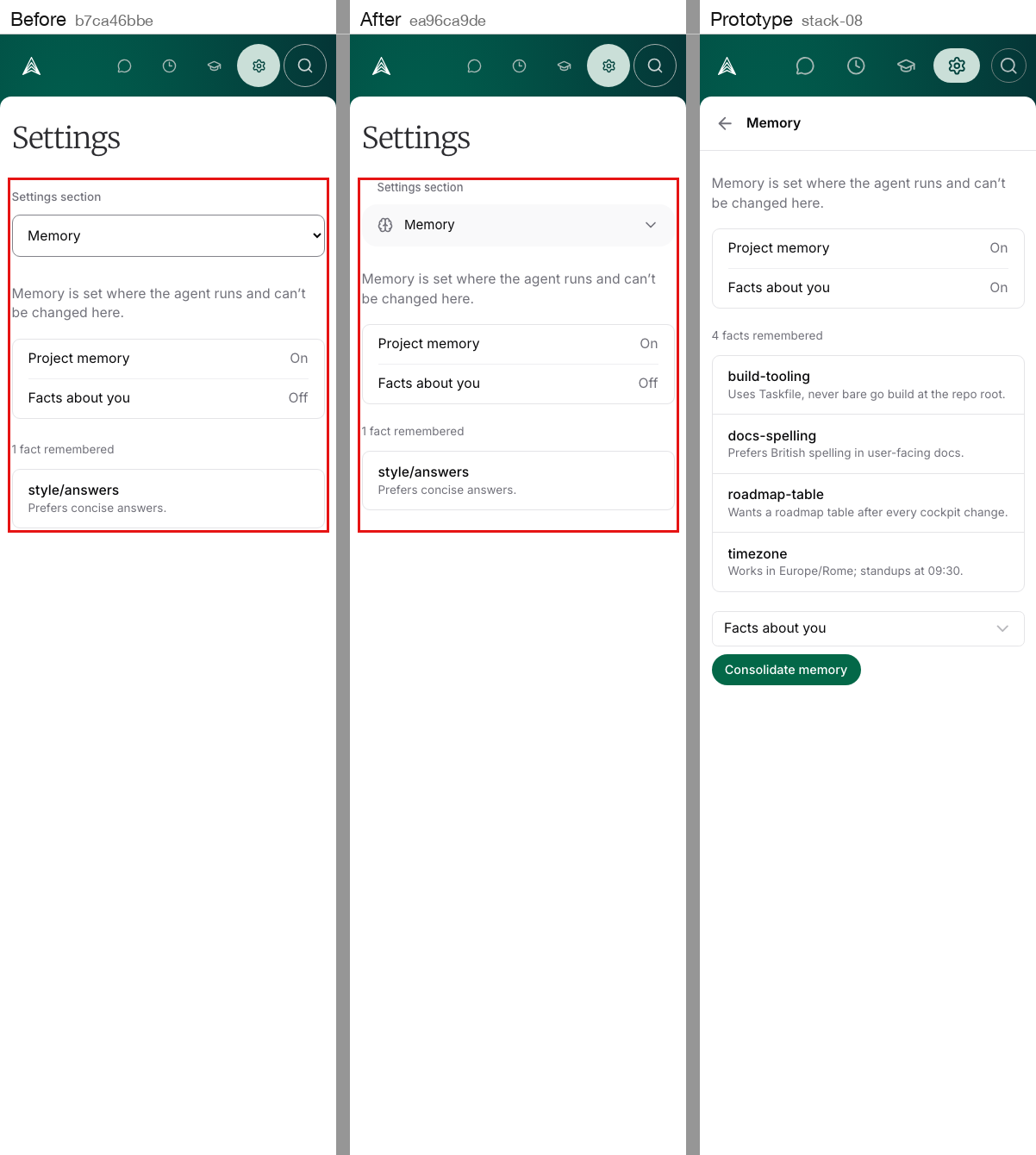

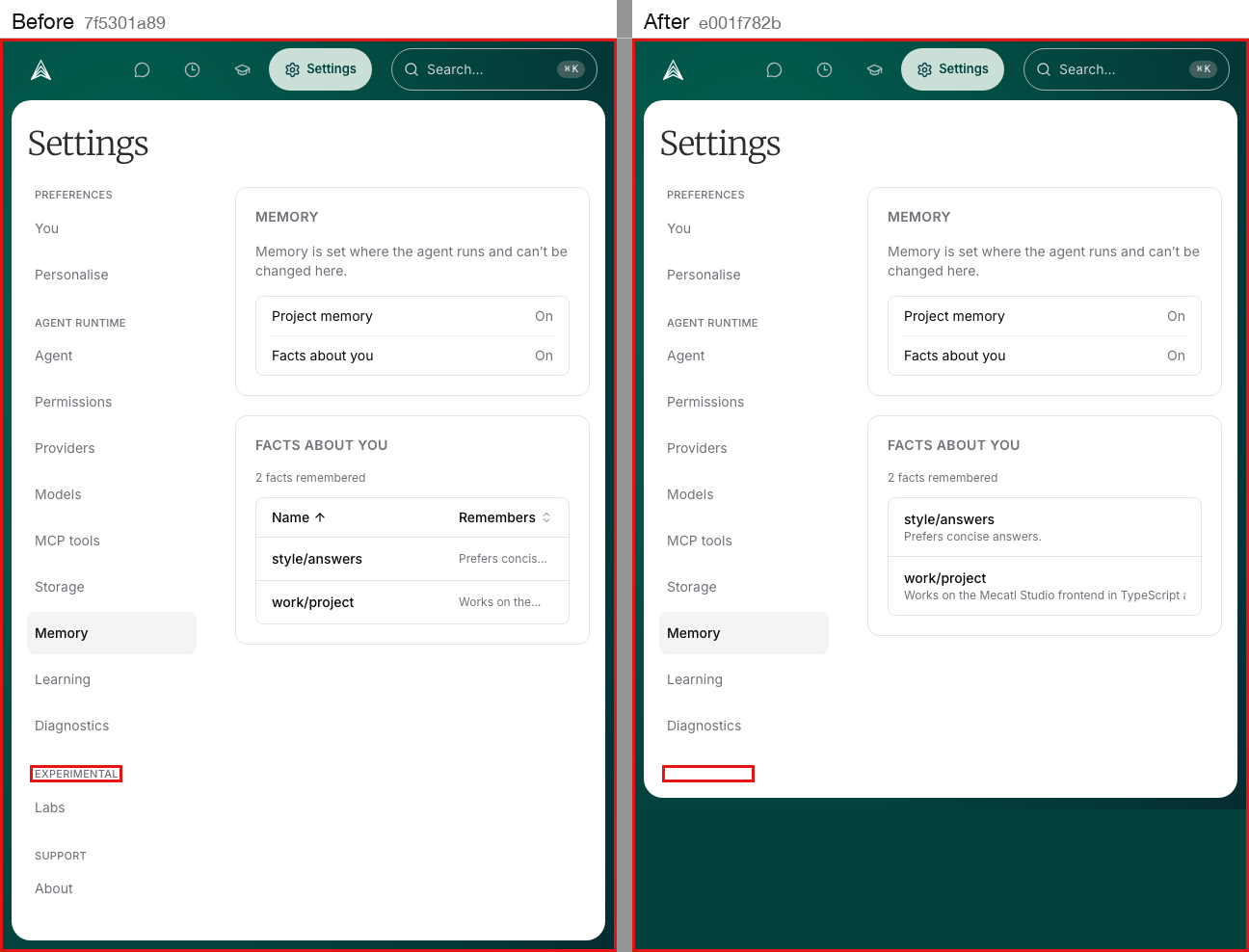

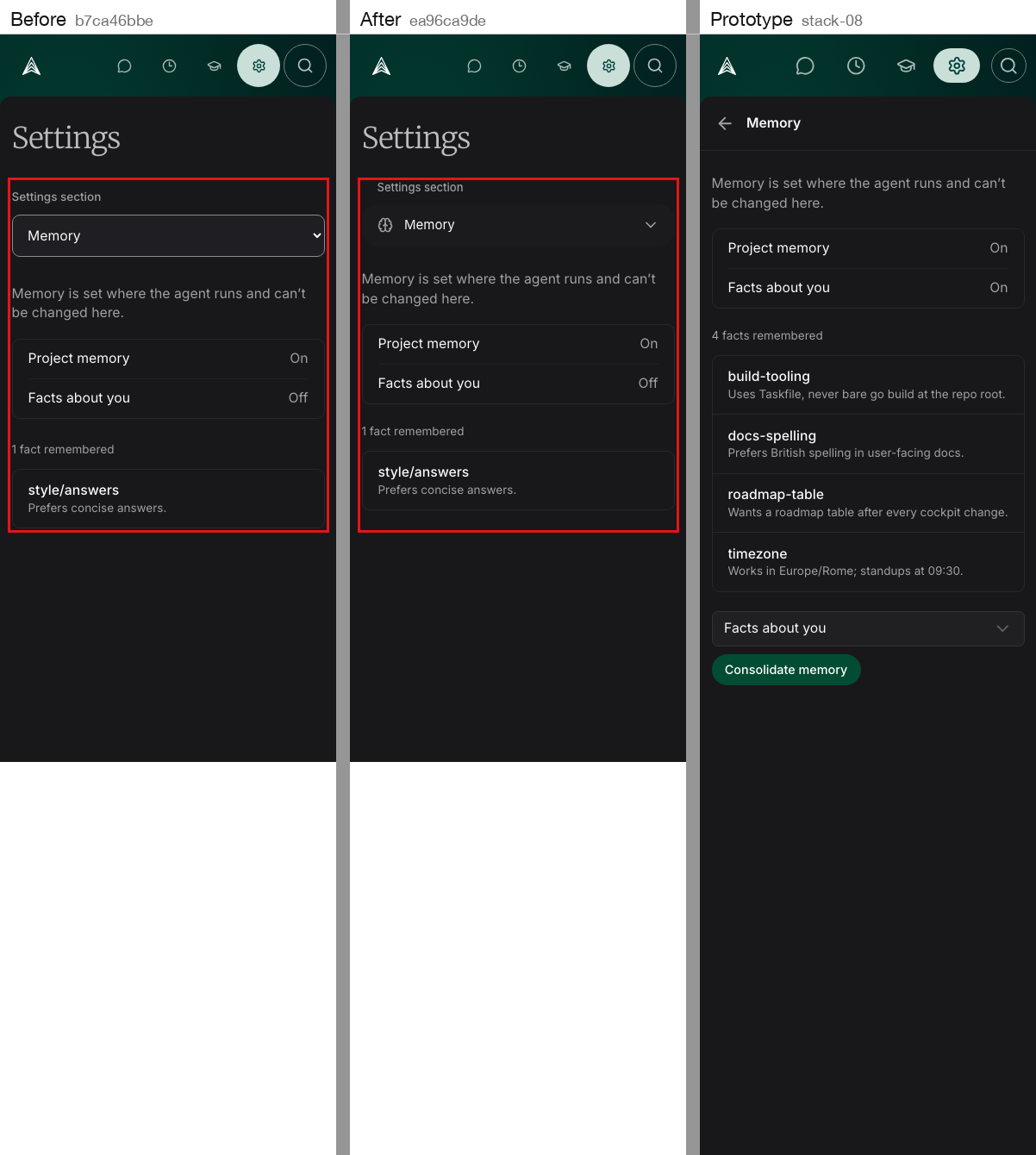

Memory

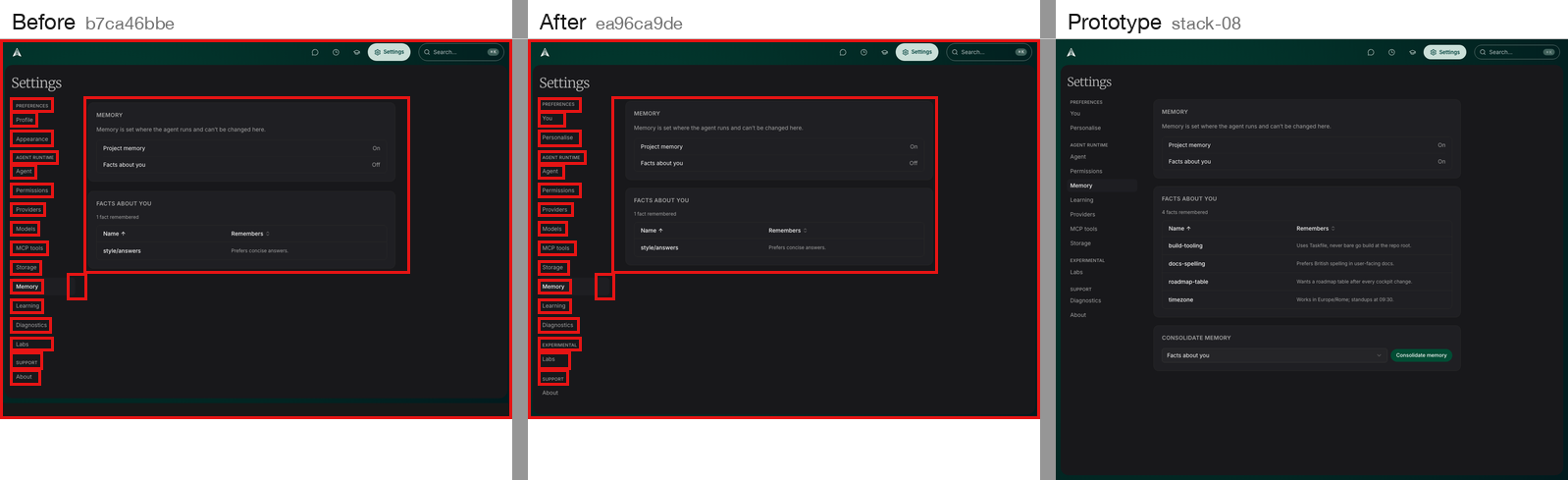

Content unchanged (aligned in #2222 and #2229); only the navigation changes.

Desktop dark, mobile light, mobile dark

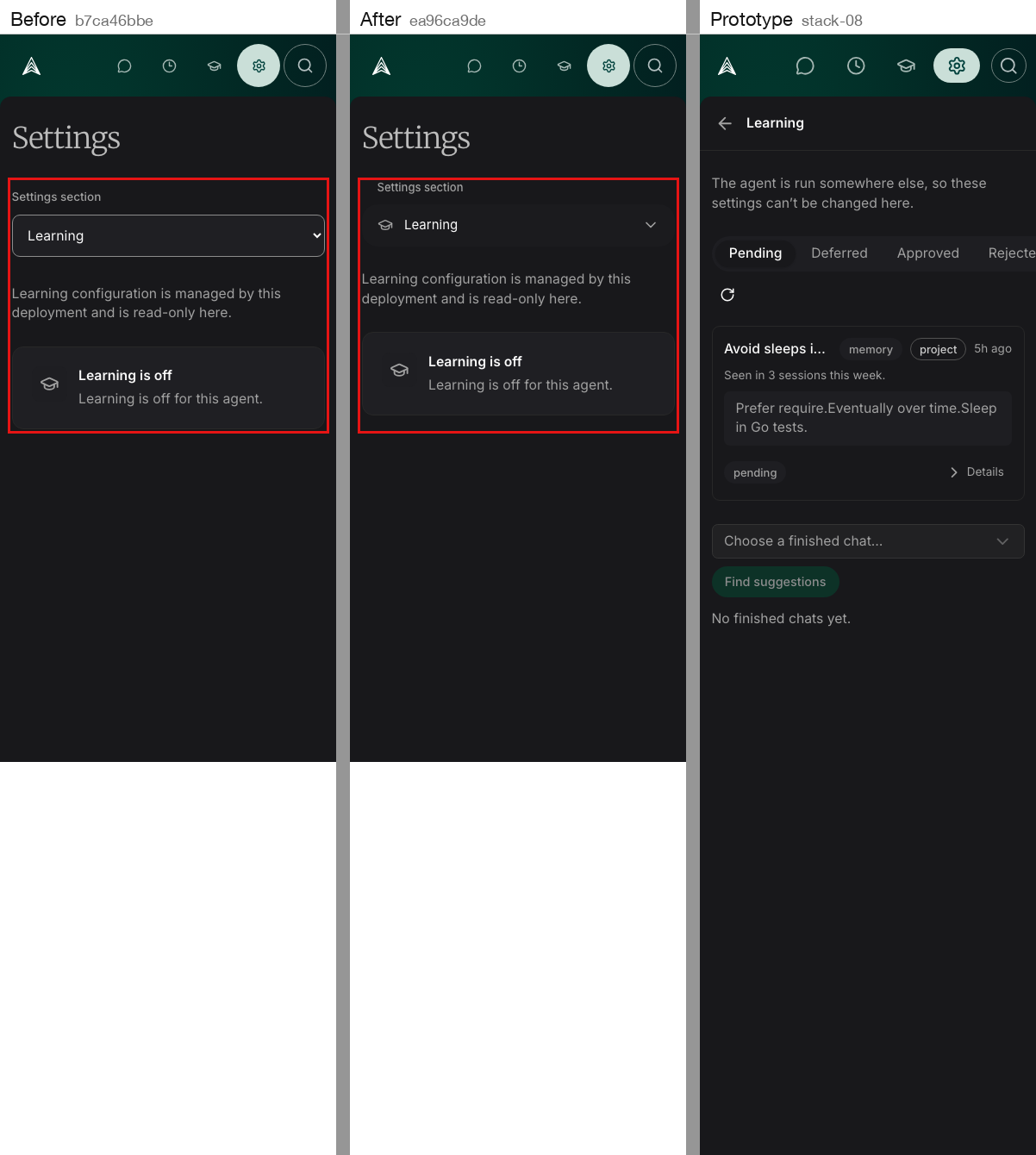

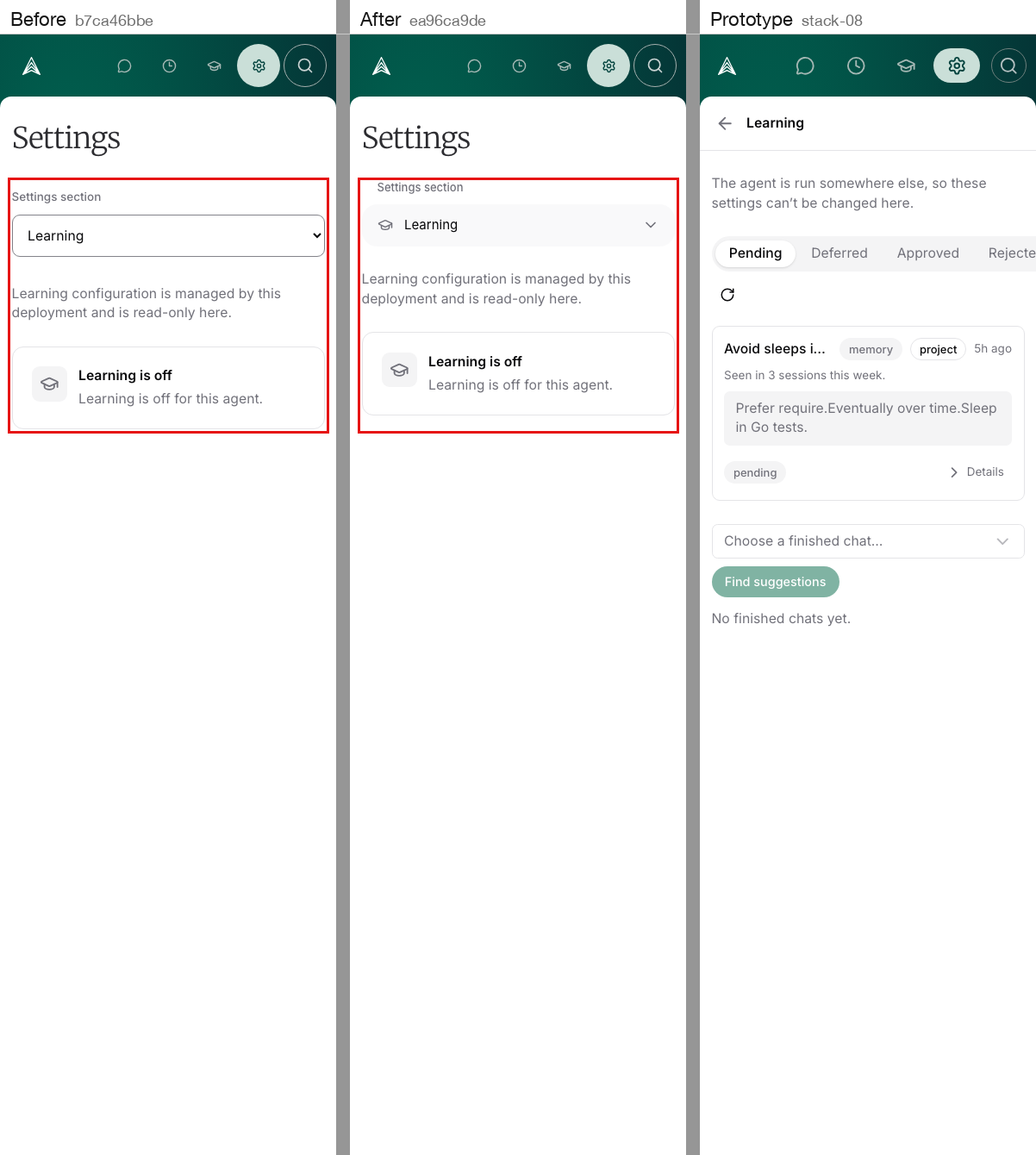

Learning

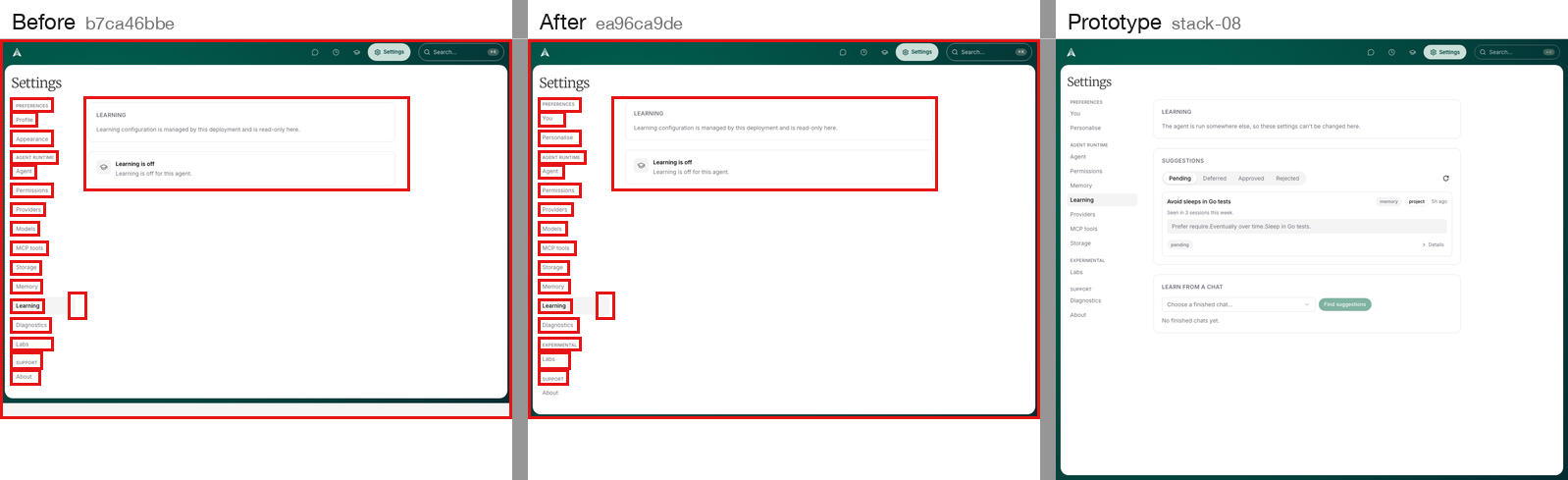

Content unchanged (aligned in #2232); only the navigation changes. The prototype column shows its fixture's learning data.

Desktop dark, mobile light, mobile dark

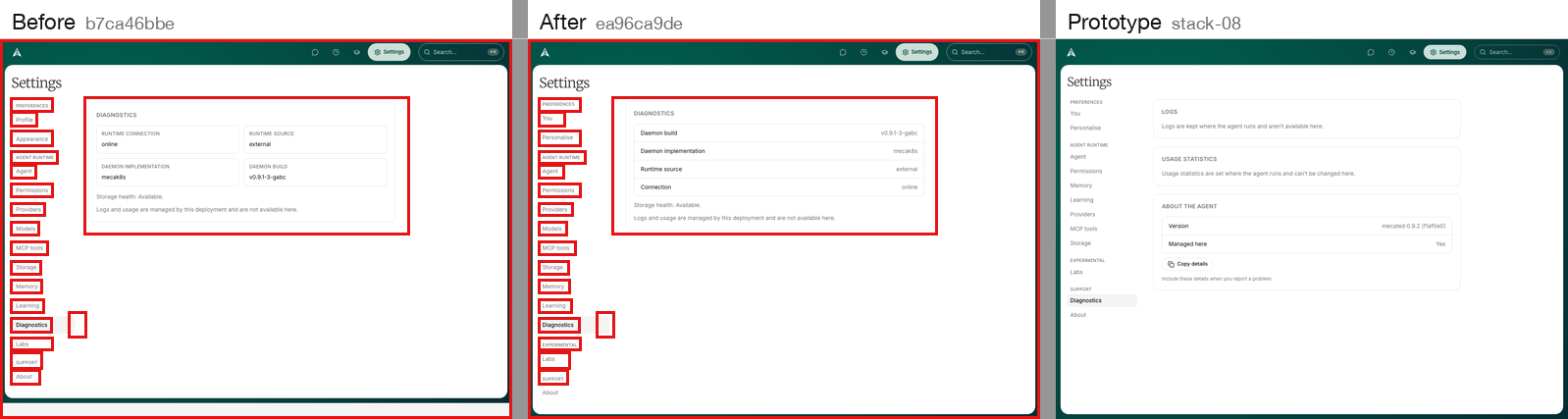

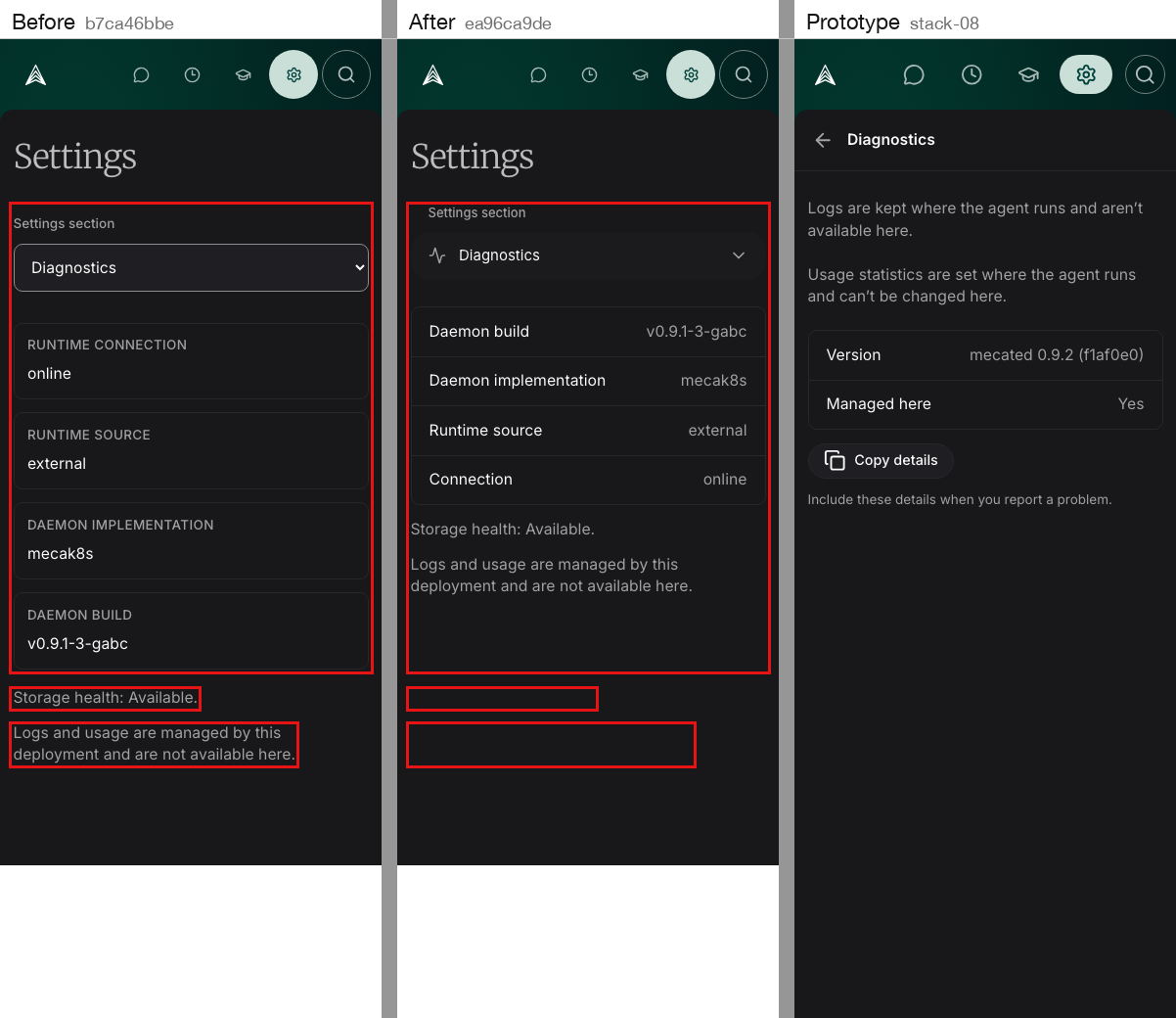

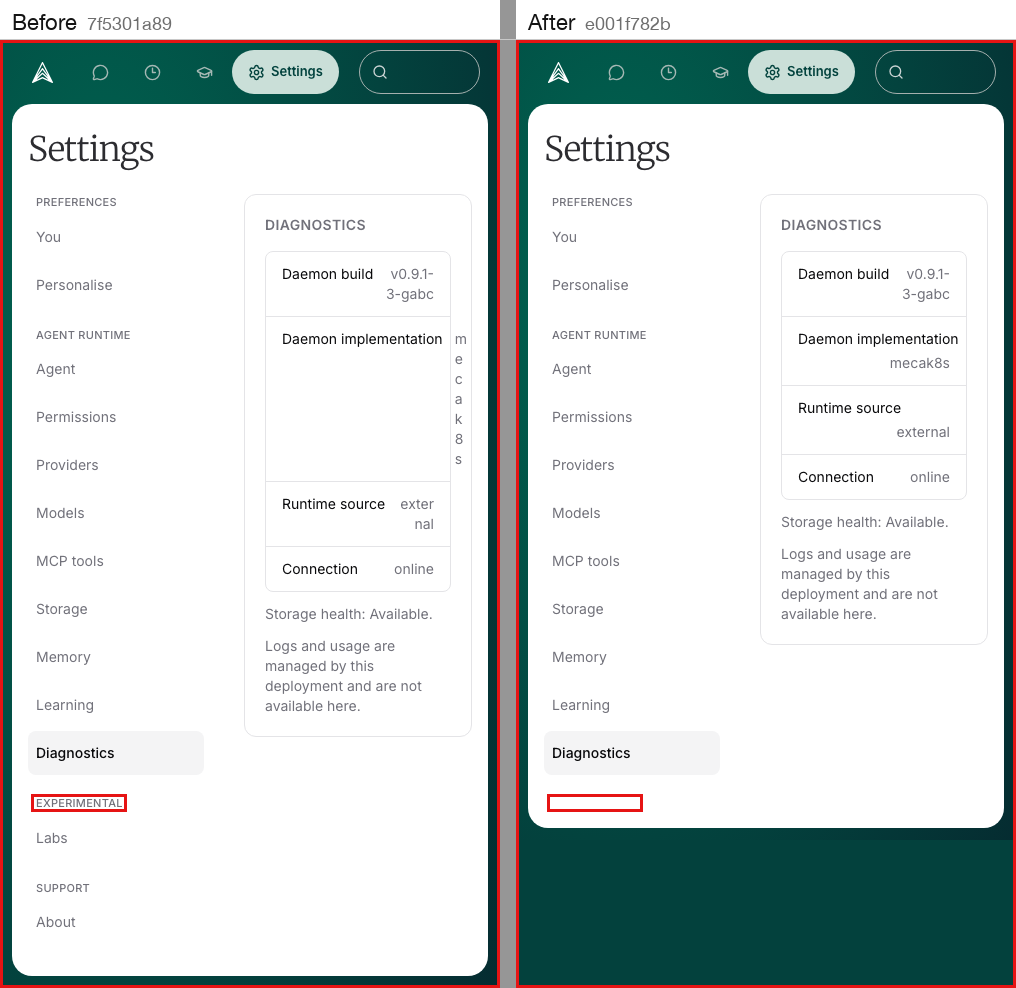

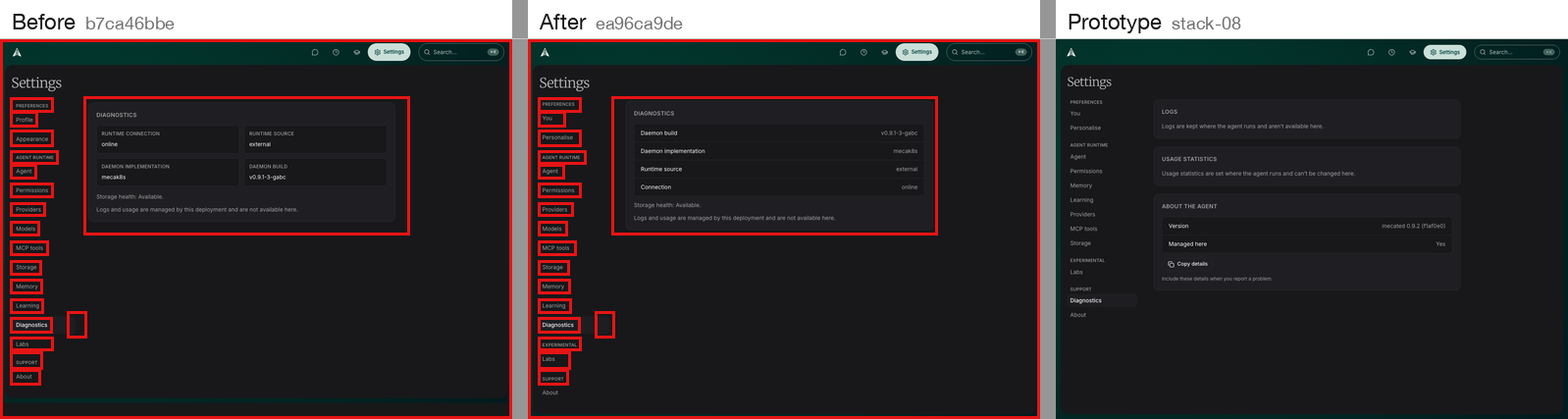

Diagnostics

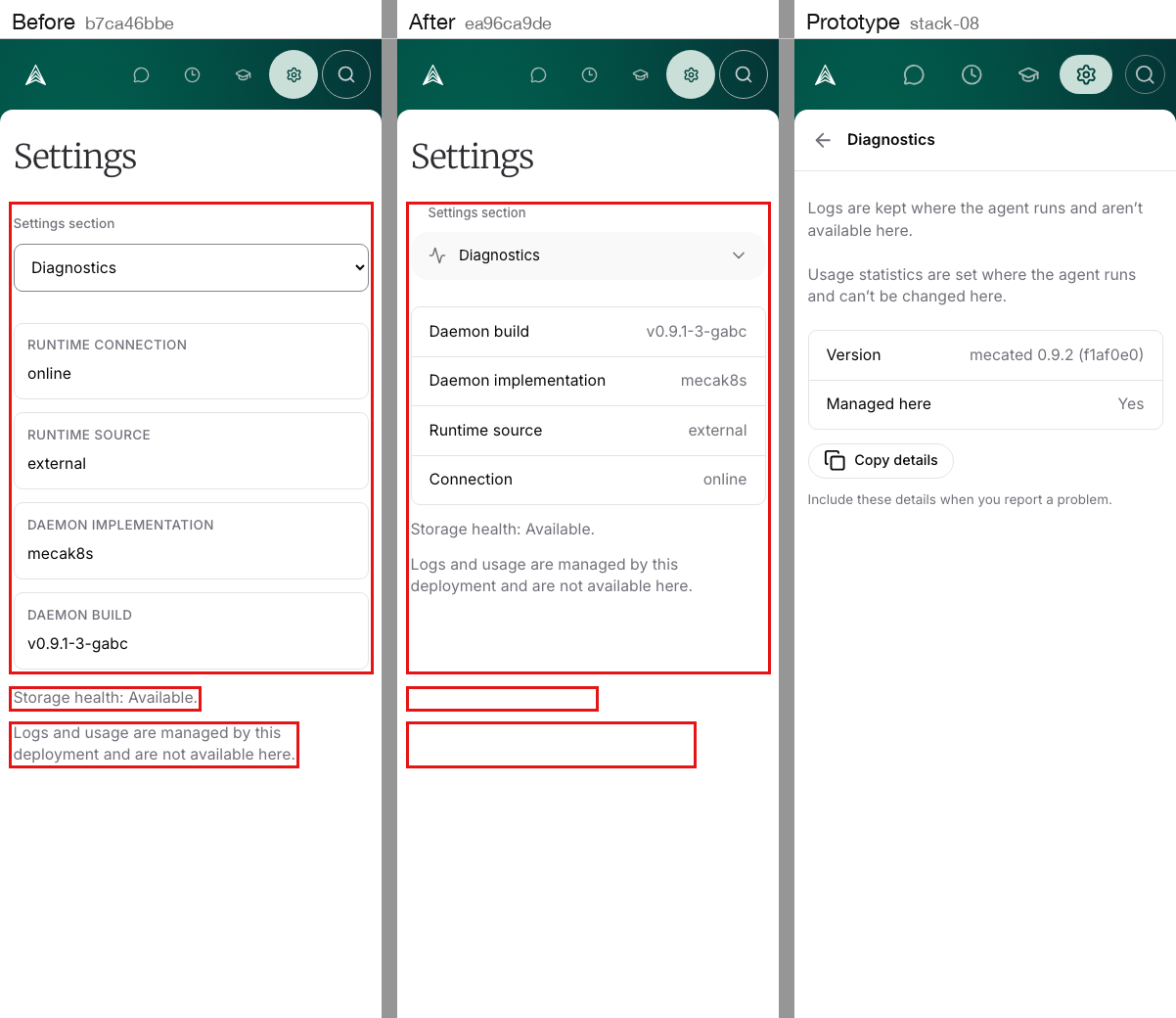

Daemon facts in the prototype's About-card grammar, shared with About. Deviation: the Logs and Usage statistics cards are out of scope, so Diagnostics keeps one card with the storage-health line and the logs note.

Desktop dark, mobile light, mobile dark

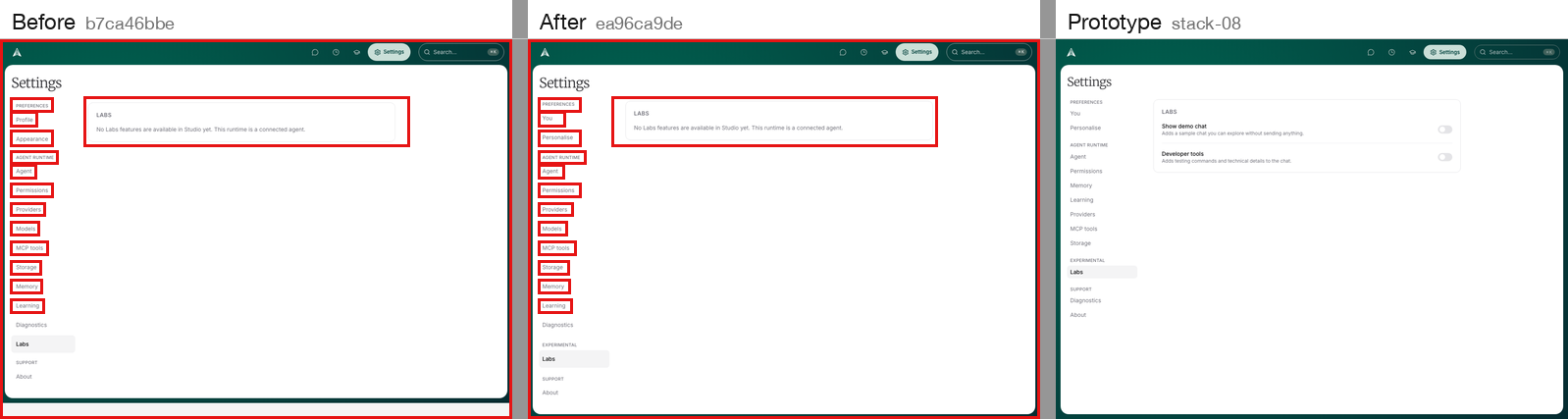

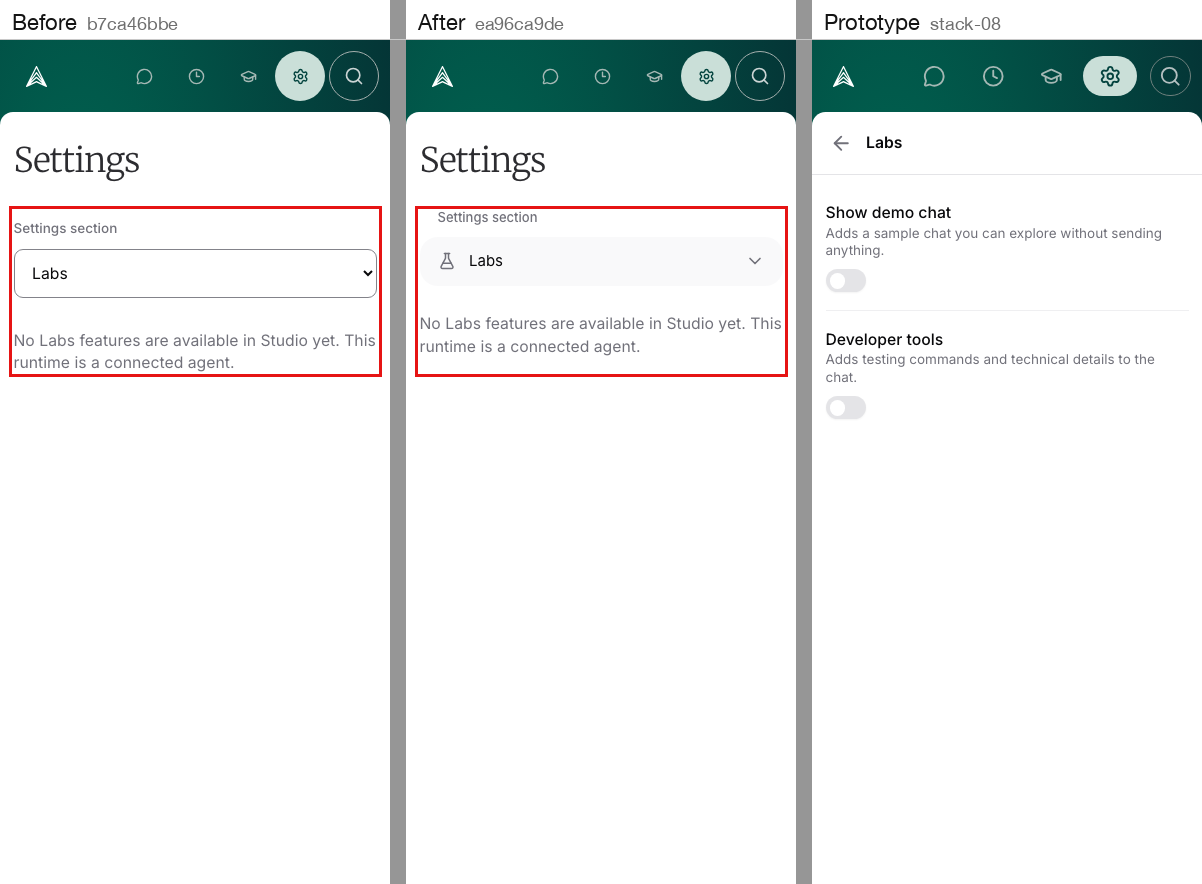

Labs

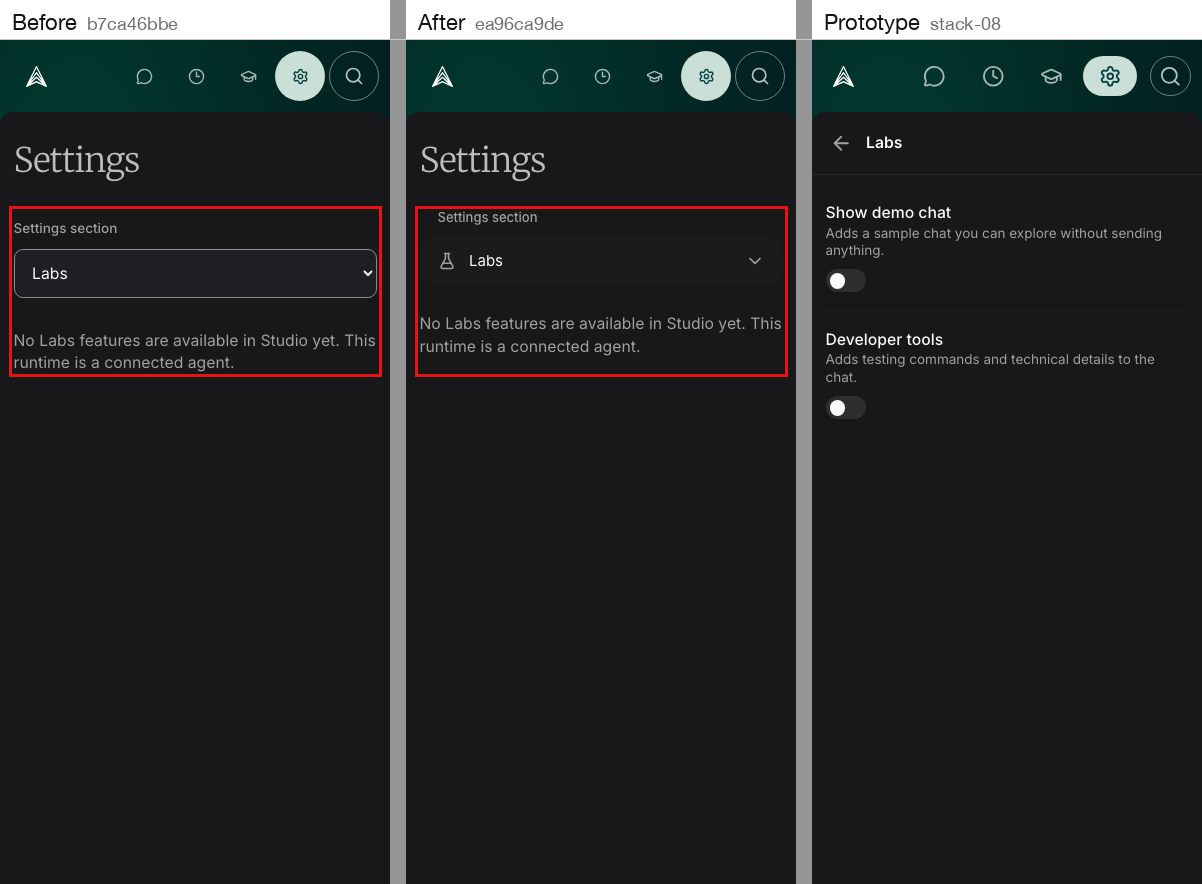

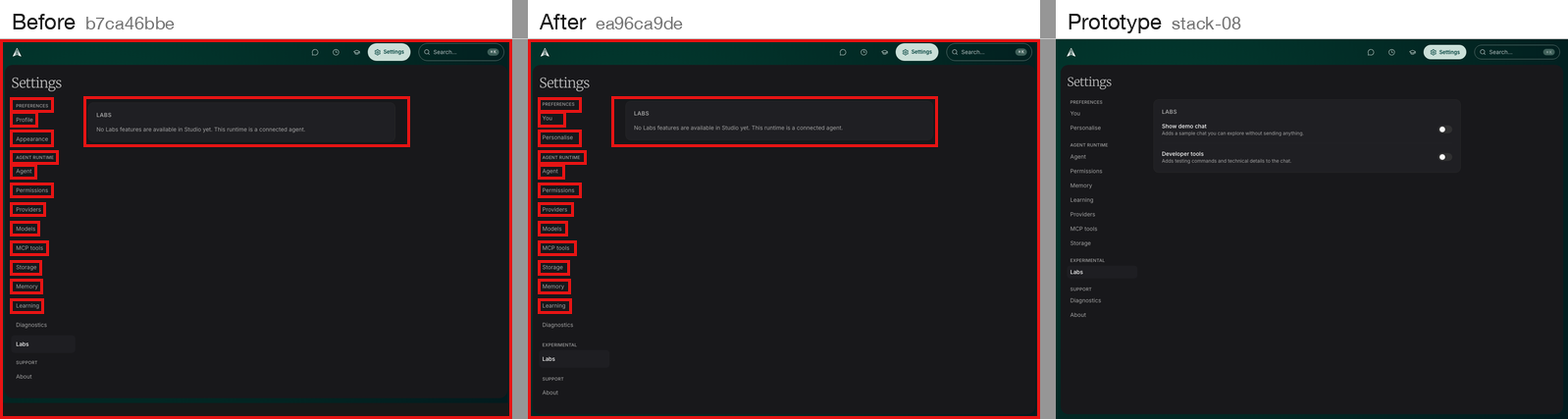

Nav only; the content is unchanged. Studio has no demo chat or developer tools to switch.

Desktop dark, mobile light, mobile dark

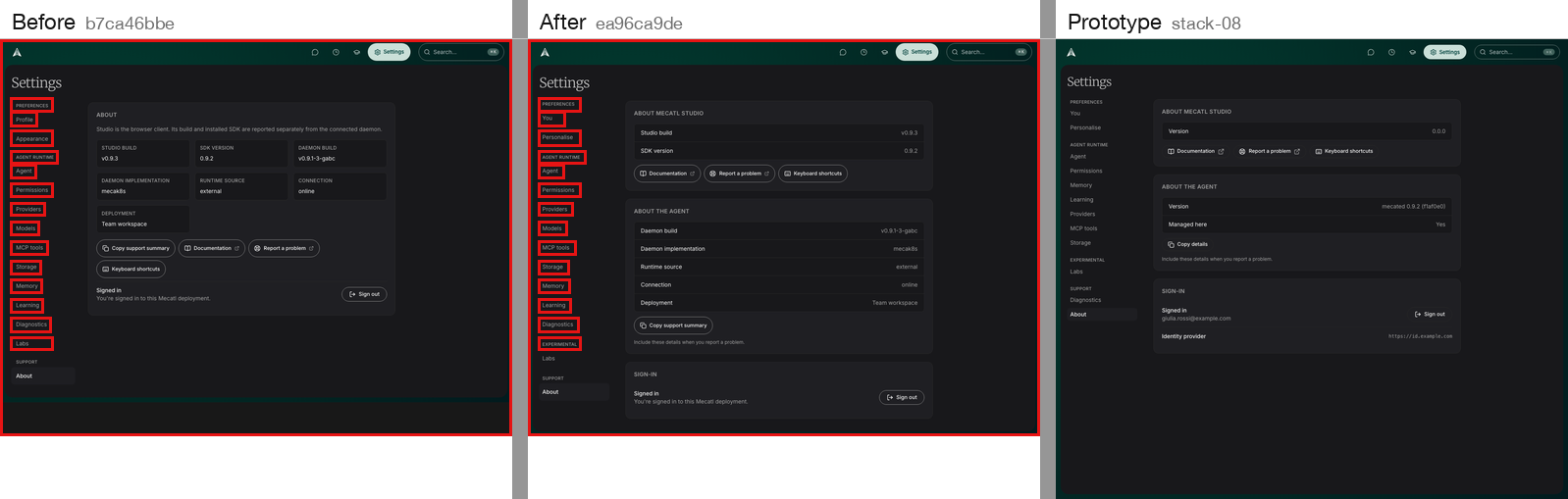

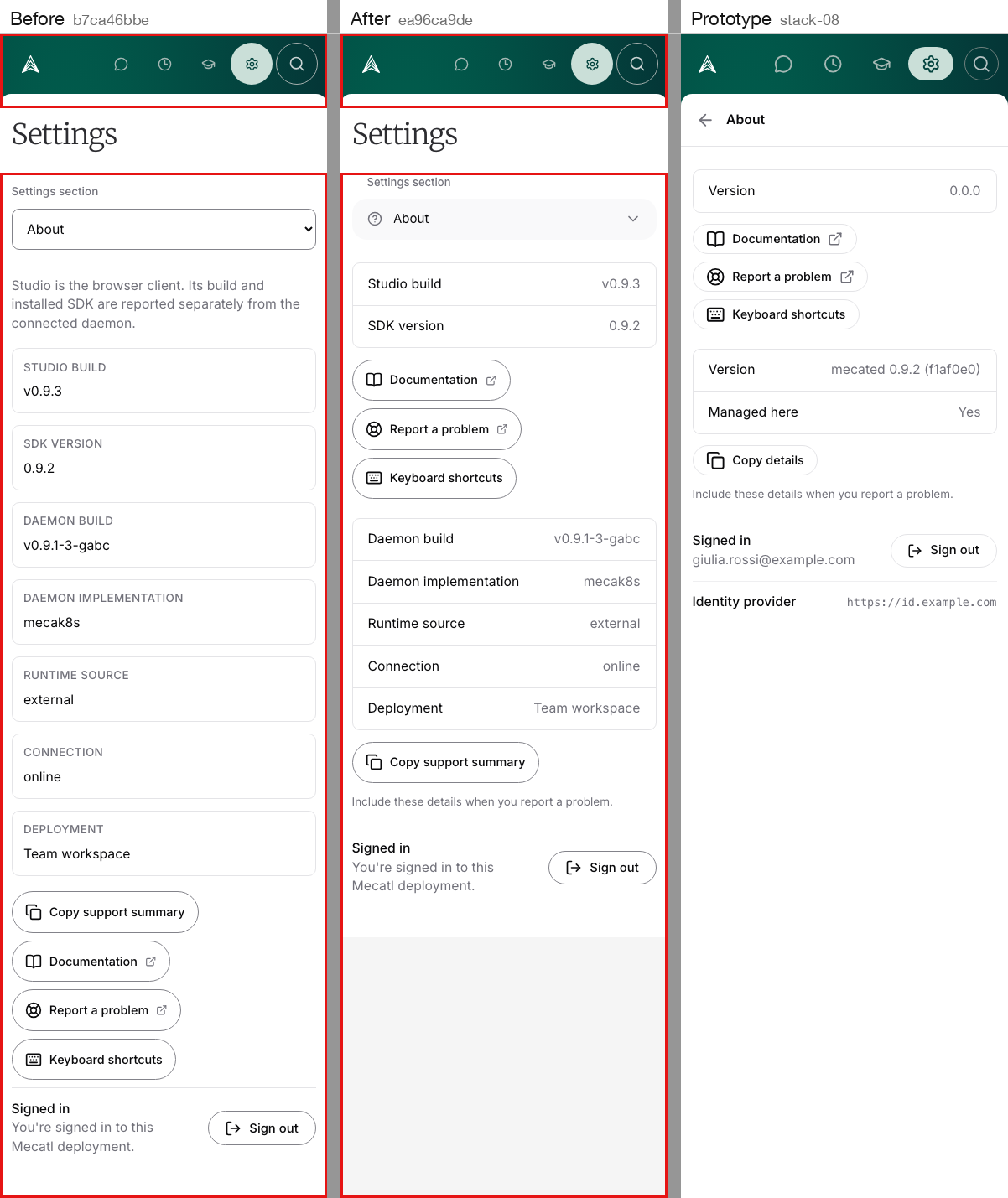

About

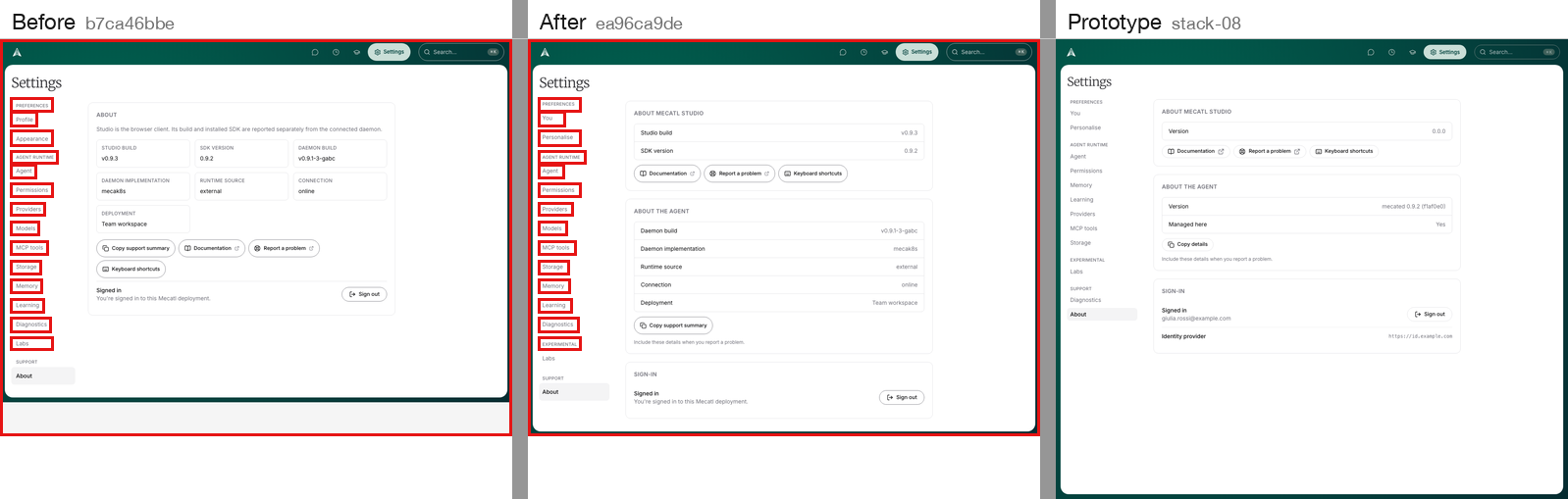

Matches the prototype's split: About Mecatl Studio, About the agent, and Sign-in. Deviations: Studio's build, SDK, and five daemon facts, and Copy support summary.

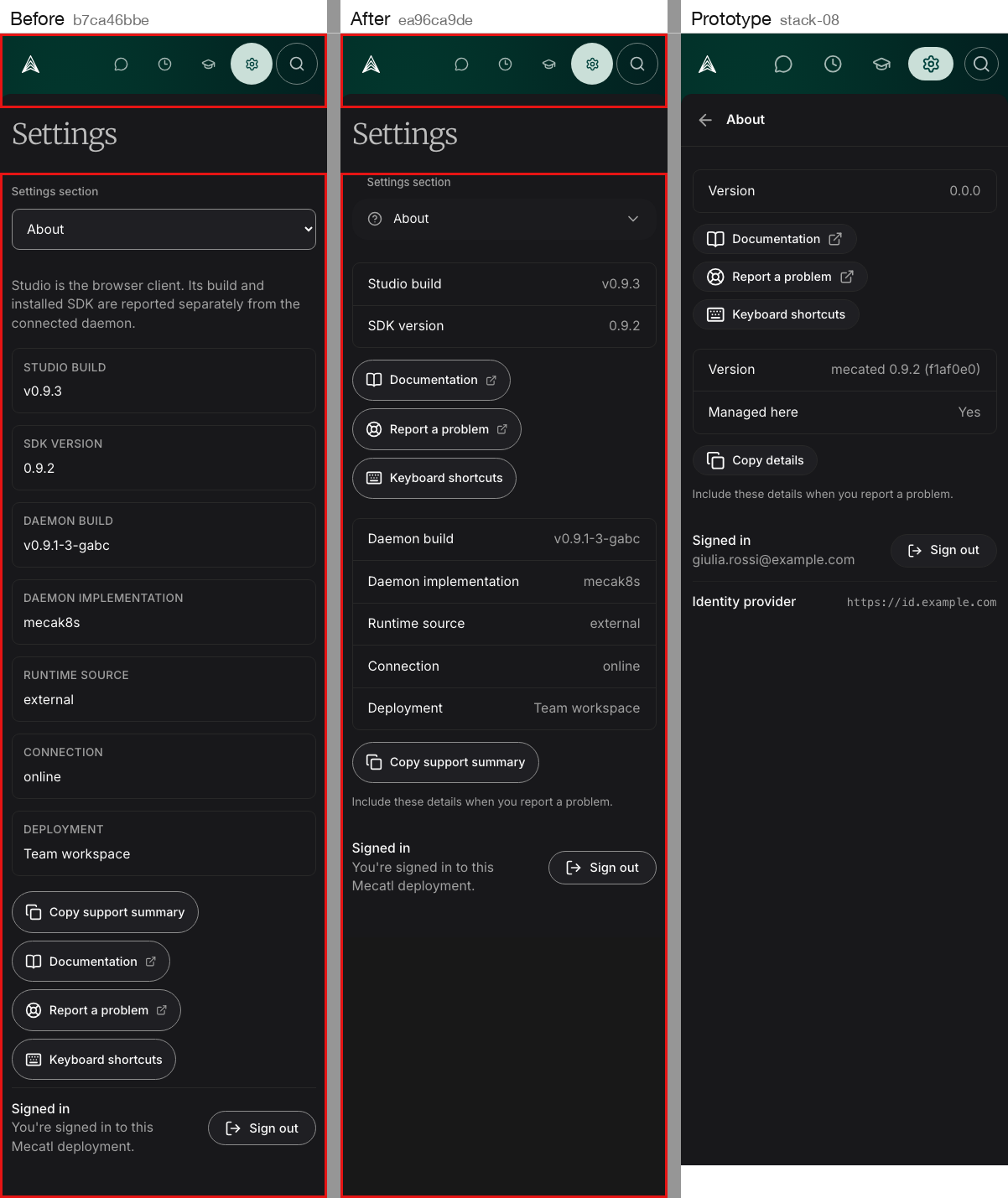

Desktop dark, mobile light, mobile dark

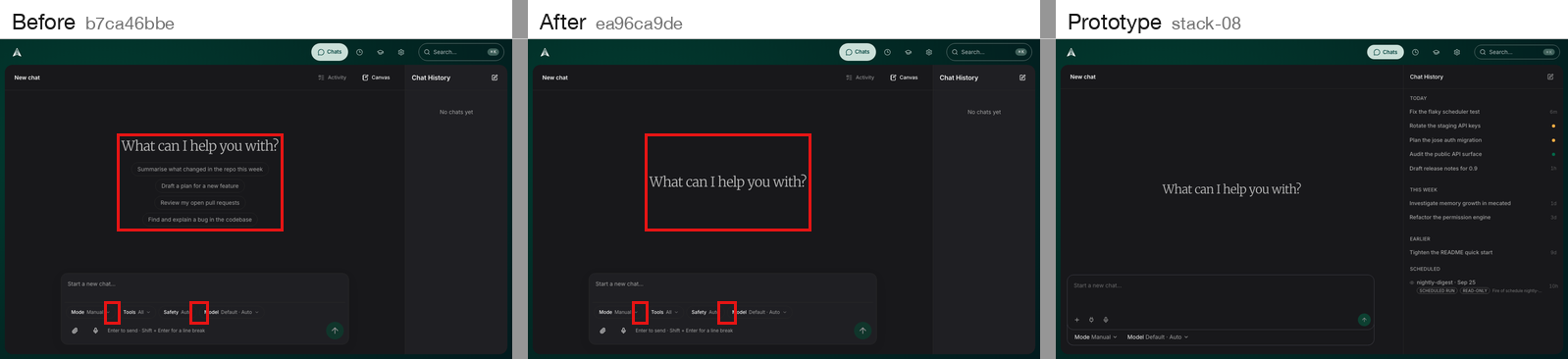

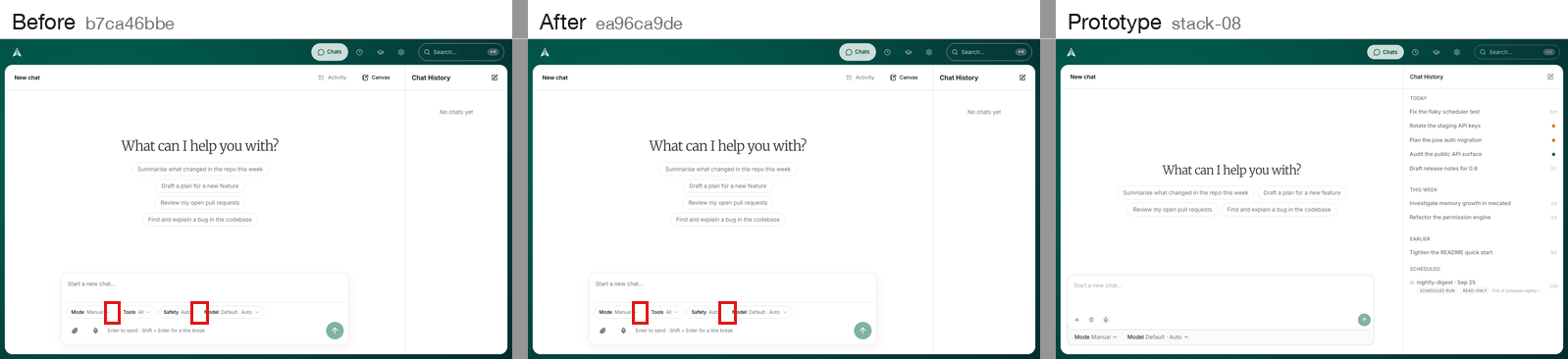

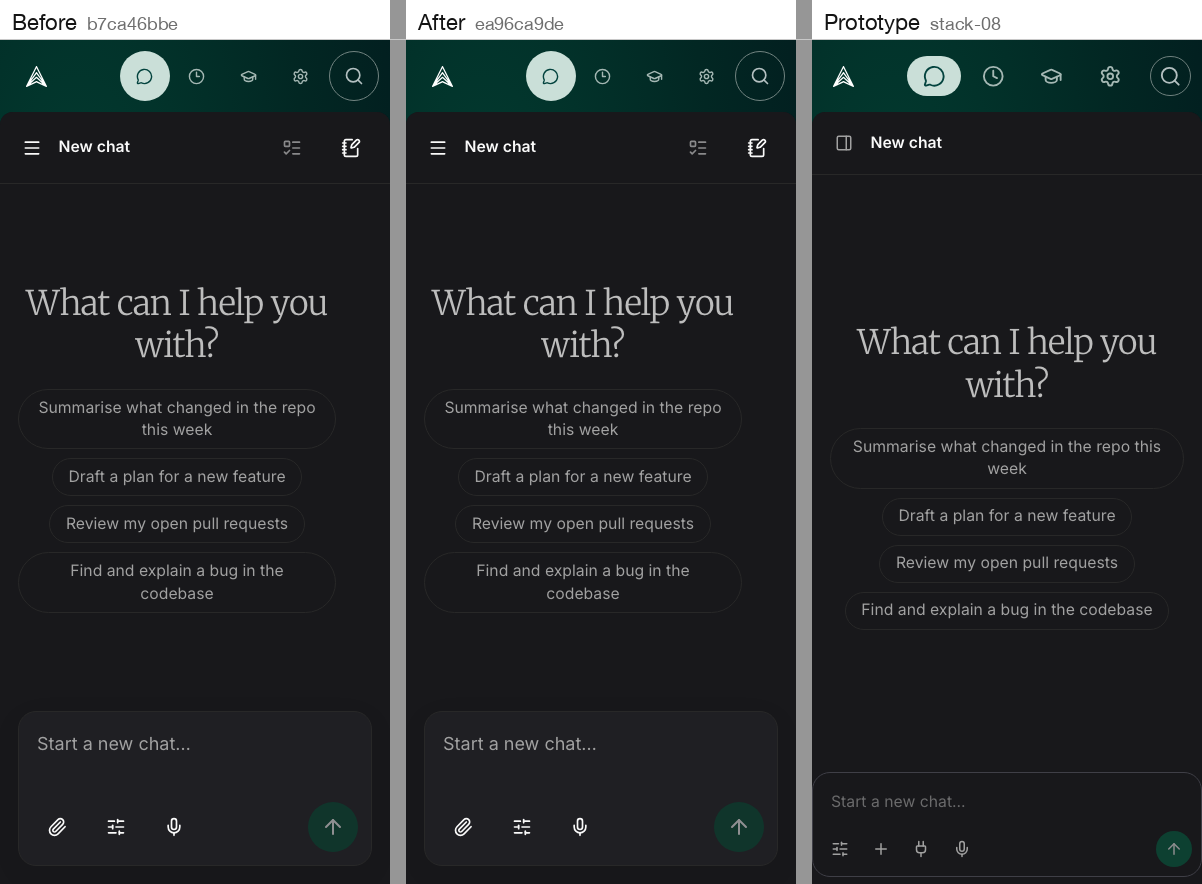

New chat, Starter prompts on

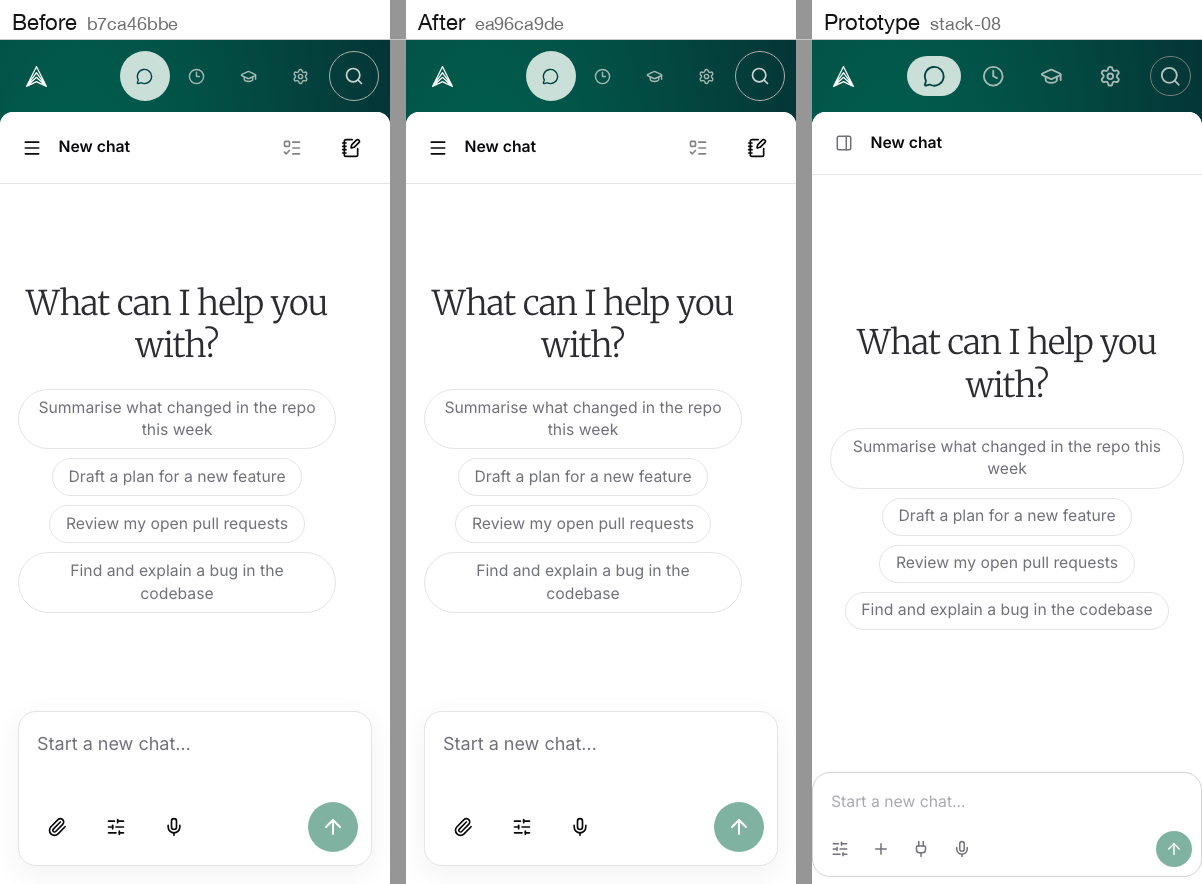

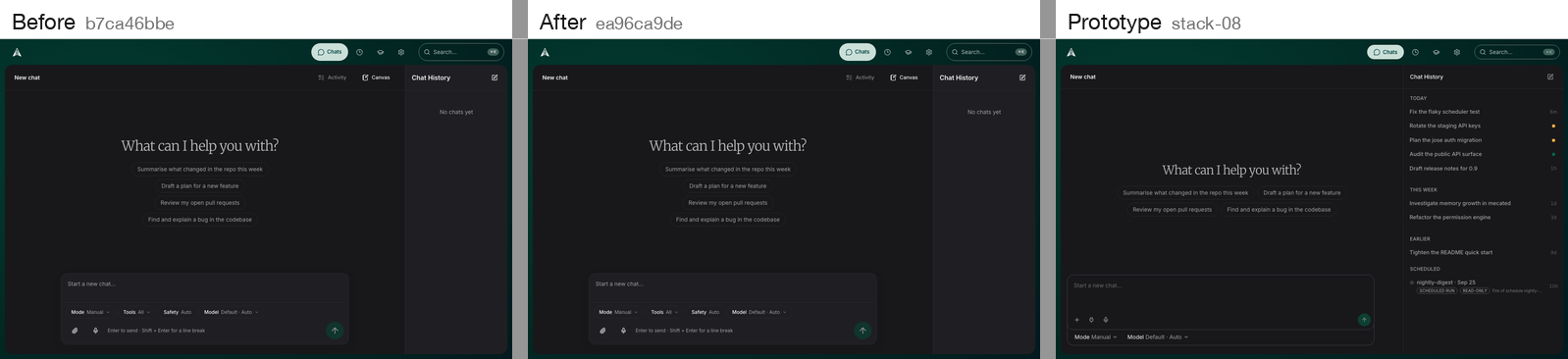

Unchanged, as intended (the only differing pixels are the composer caret, equal to the capture noise). Matches the prototype's greeting with chips.

Desktop dark, mobile light, mobile dark

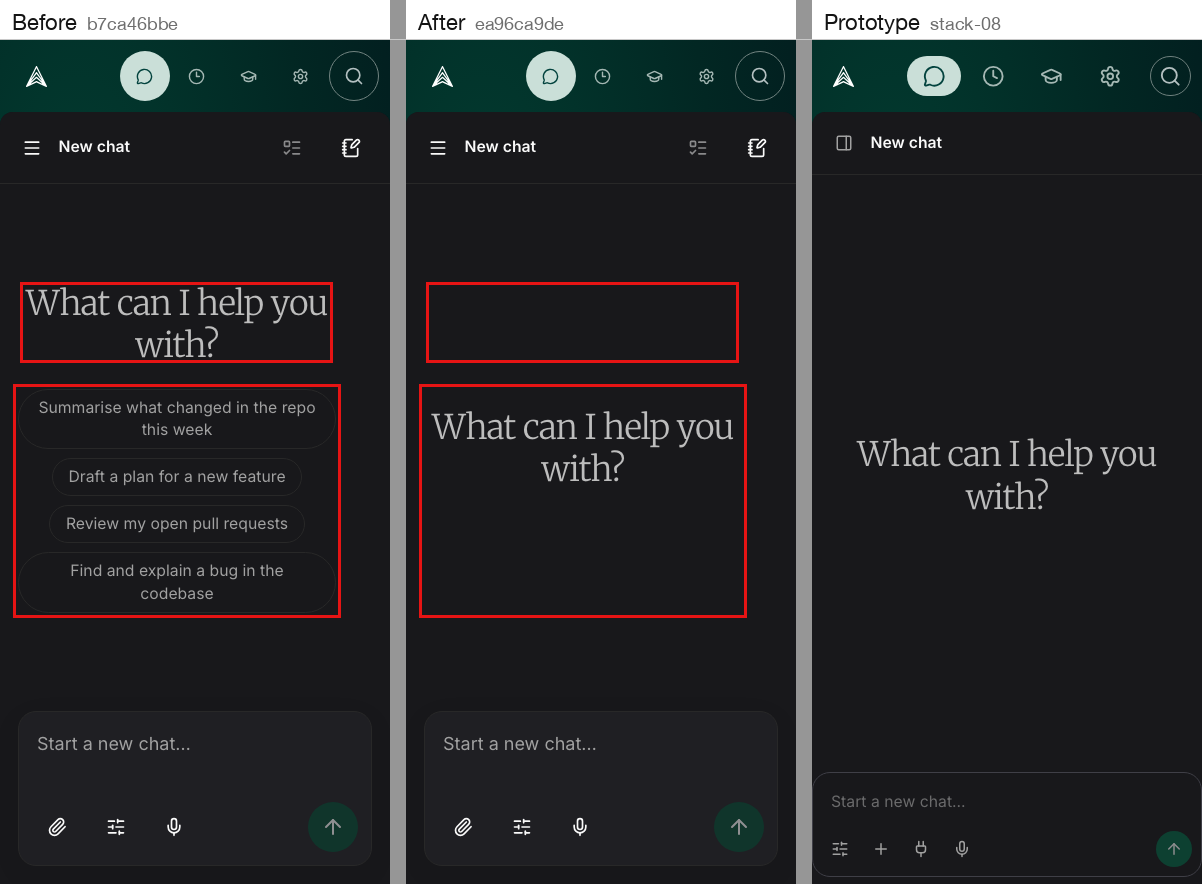

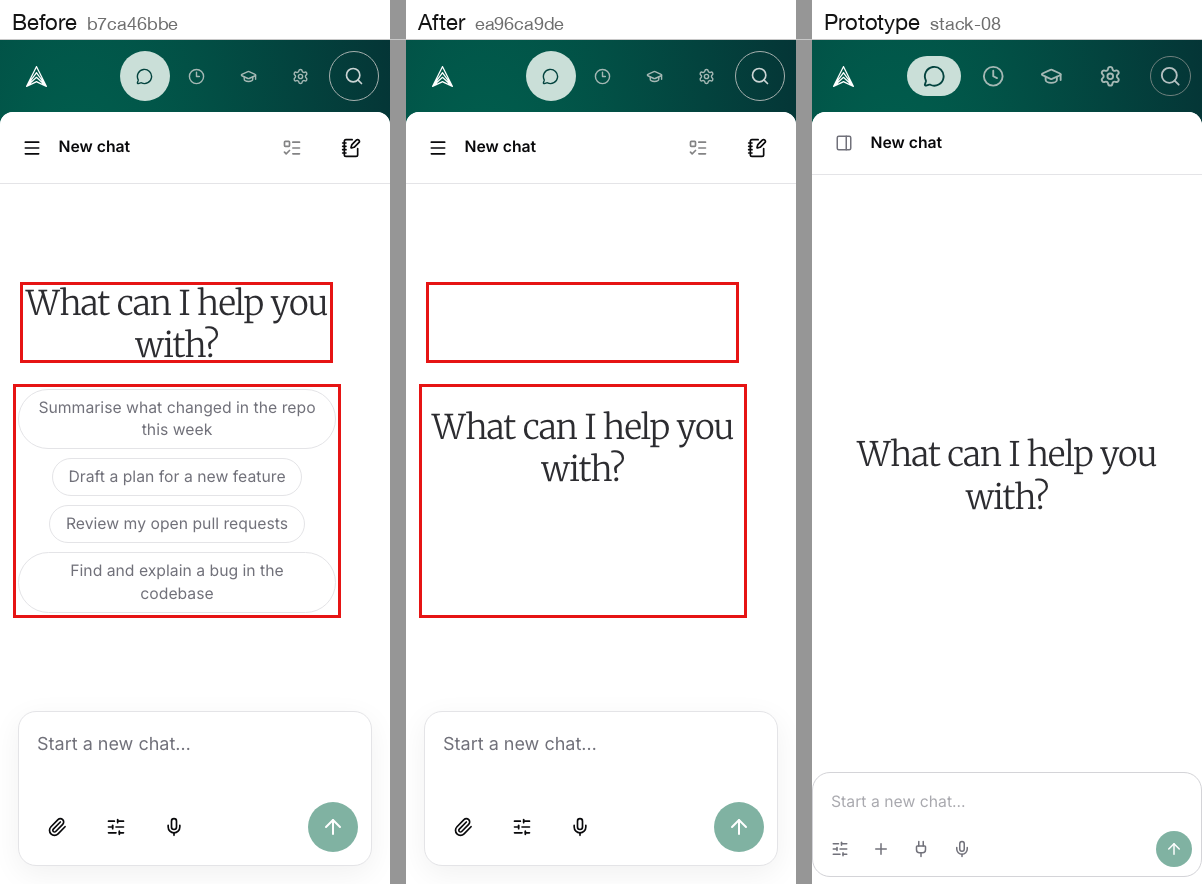

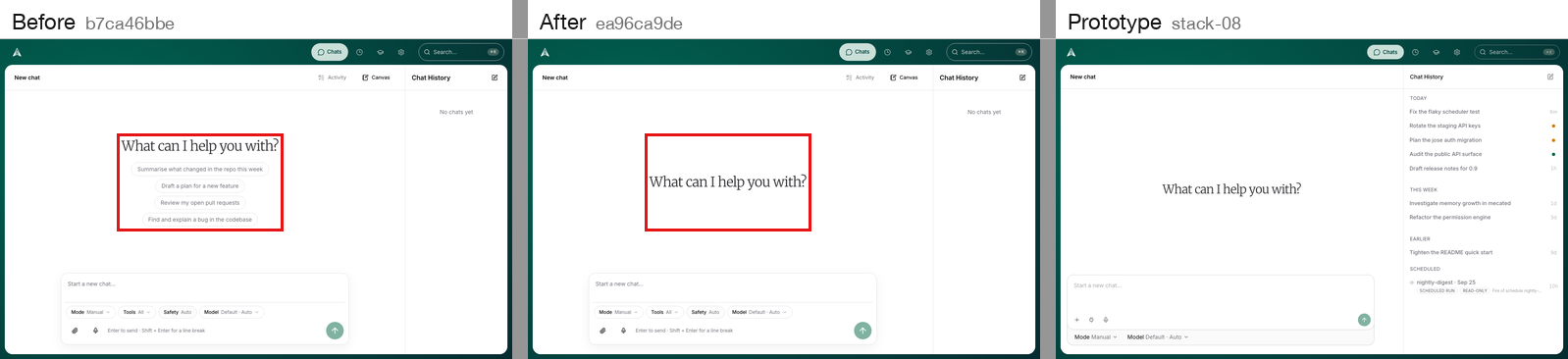

New chat, Starter prompts off

Matches the prototype: the chips are hidden and the heading stays.

Desktop dark, mobile light, mobile dark

Review fixes

Fixes from the final regression and security review of the stack (stack #2227). Each one comes with a test that fails without the fix.

Finding	Result	Commit	Test
[minor] The Studio guide named the "Message during a run" preference	Fixed: the guide now names Messages while the agent works in Settings > Personalise	92a26e62d	Docs only; task docs passes. No prose test (AGENTS.md: don't pin documentation prose).
[minor] The visible label "Your name" didn't match the accessible name "Your display name" (WCAG 2.5.3)	Fixed: the visible label is now "Your display name", and the accessible name the read-only pins check stays the same	c313489db	settings-accessibility.test.tsx: "keeps each identity field's visible label inside its accessible name" (fails before, passes after)
[minor] Overflow at 500–640px: fixed-width inputs and a two-column models grid	Fixed	e175641c7, f67b9340d	e2e/settings-layout.spec.ts: "settings sections fit at 500/568/640px, between the 500px pivot and a tablet"
[audit] The Settings nav pushed the current item below the fold at 1280×800 (Labs, About)	Fixed: the nav is sticky, scrolls on its own, and scrolls the current item into view. Targets stay 44px.	cd1a4791f	e2e/settings-layout.spec.ts: "the settings nav keeps the current section on screen at 1280x800"
[audit] The phone section picker had about 1.05:1 contrast against the page	Fixed: added a muted-foreground border, about 4.9:1 in light and 6.8:1 in dark (WCAG 1.4.11)	cd1a4791f	e2e/settings-layout.spec.ts: "the phone section picker reads as a control in light/dark mode"

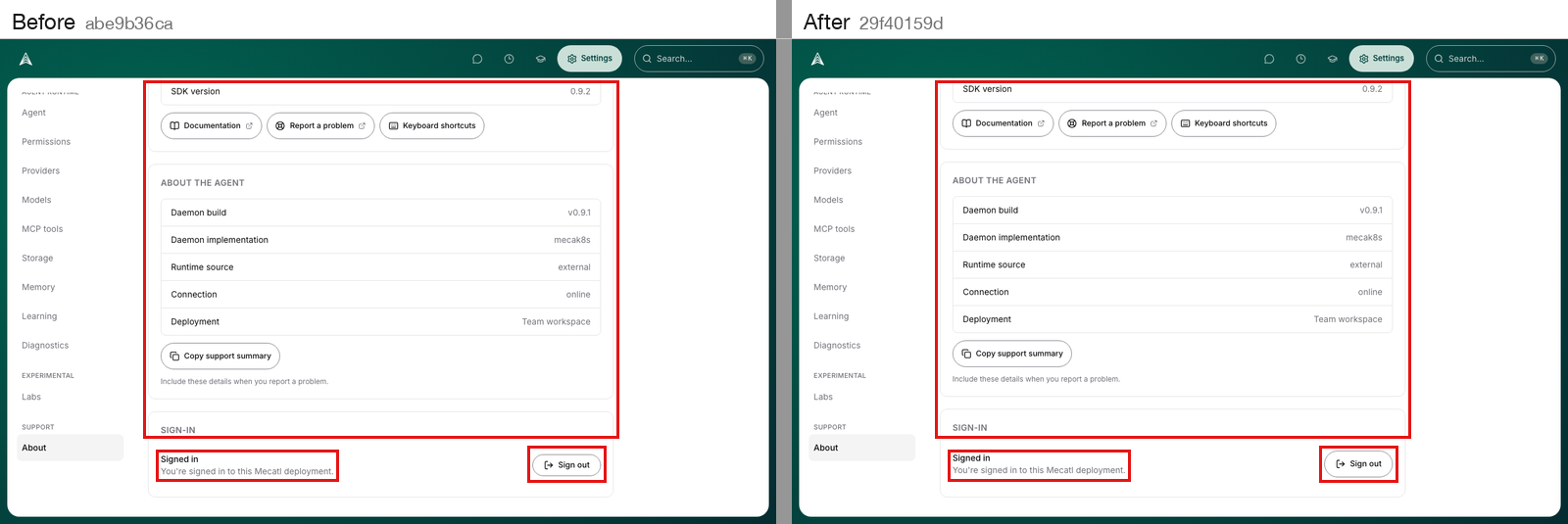

[found by the new check] About's Copy support summary and Sign out ran into the card padding at 500px	Fixed: long action labels wrap, and Sign out drops under its text	b082e8b84	Same 500–640px journey, which now measures against the card's content edge
[optional] Show "OpenAI" instead of humanize(id)	Not done	—	The provider inventory contract has no display name, so the fix needs a contract and BFF change, not a one-line UI fix.

How the 500–640px layout works now. From 500px the section nav takes 176px, which leaves a section card about 190–330px wide.

• A settings row's control never grows past the row, so the name inputs narrow. Phones still get 176px and desktops 240px.
• The Models grid is a container query: two columns from 480px of card, three from 700px. On a 1280px desktop it still shows three columns.
• A model card's Visible switch drops under a long name instead of squeezing it.
• A fact value drops below its label only when its longest word would not fit beside it. Words no longer split ("Manag-ed by deploy-ment"), and phones look the same as before.
• The memory facts table switches to its stacked cells by its own width (container query) instead of a 500px viewport, so it stops scrolling sideways beside the nav.

The browser journey checks every section at 500, 568, and 640px:

• no sideways scroll;
• nothing past a card's content edge;
• fact prose breaks only between words;
• model cards are at least 180px wide, with one-line names and labels.

Before the fix it failed on profile, agent, models, memory, MCP tools, diagnostics, and about.

Differences from the prototype.

• The label reads "Your display name" (the prototype says "Your name"). This keeps the accessible name the read-only pins check.
• The phone picker has a visible border, where the prototype's inset row has none, so the control meets 3:1.

Gates on e001f782b:

• studio:check: server 195/195, web 1040/1040 (139 files; +1 vitest test).
• studio:browser: 70 passed, 4 skipped. The new spec adds 4 tests per project, and each runs on only one project.

Screenshots

Before is 7f5301a89 and After is e001f782b. Red boxes mark pixel differences. These are responsive fixes for widths and states the prototype does not define, so there is no prototype column.

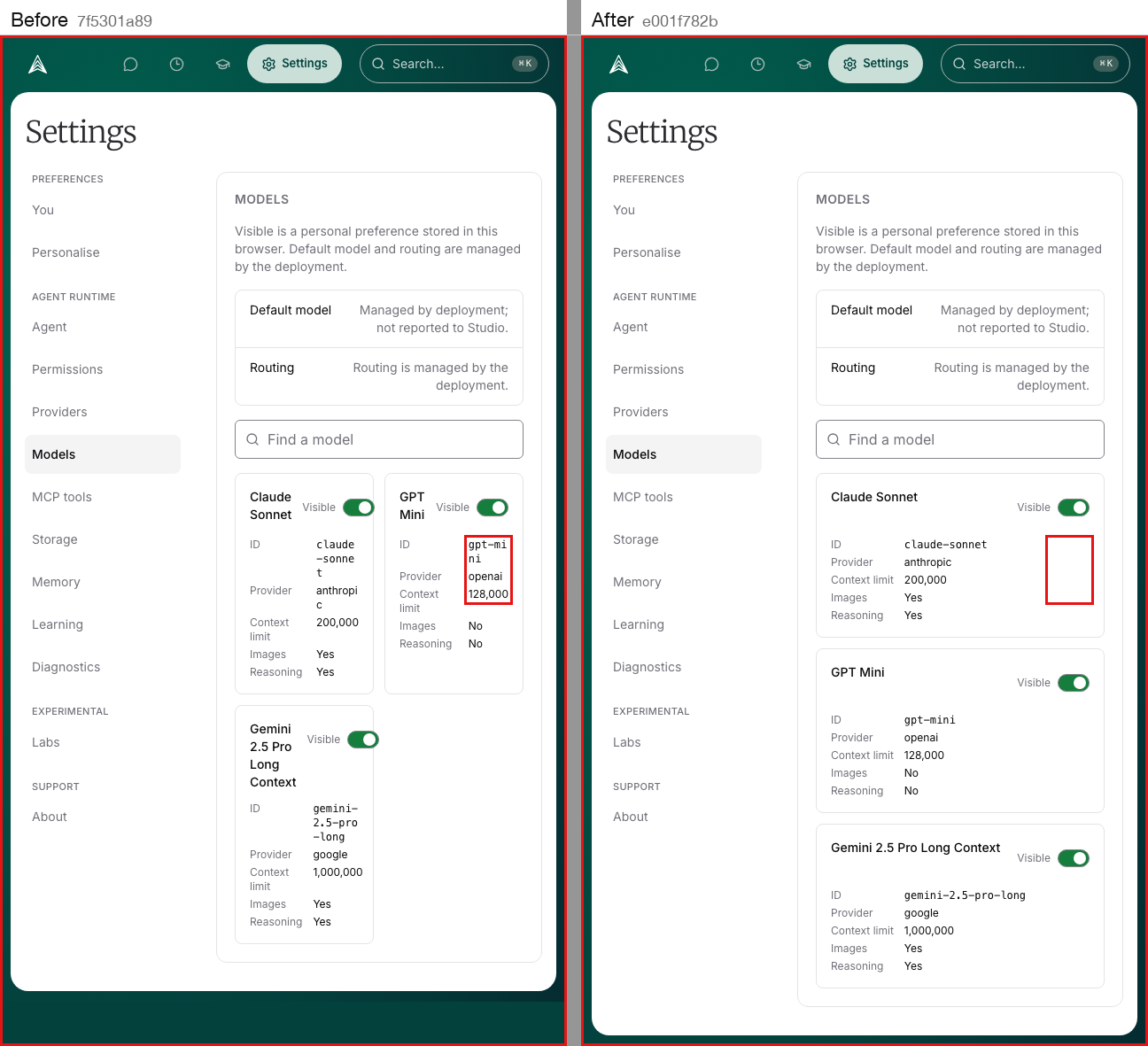

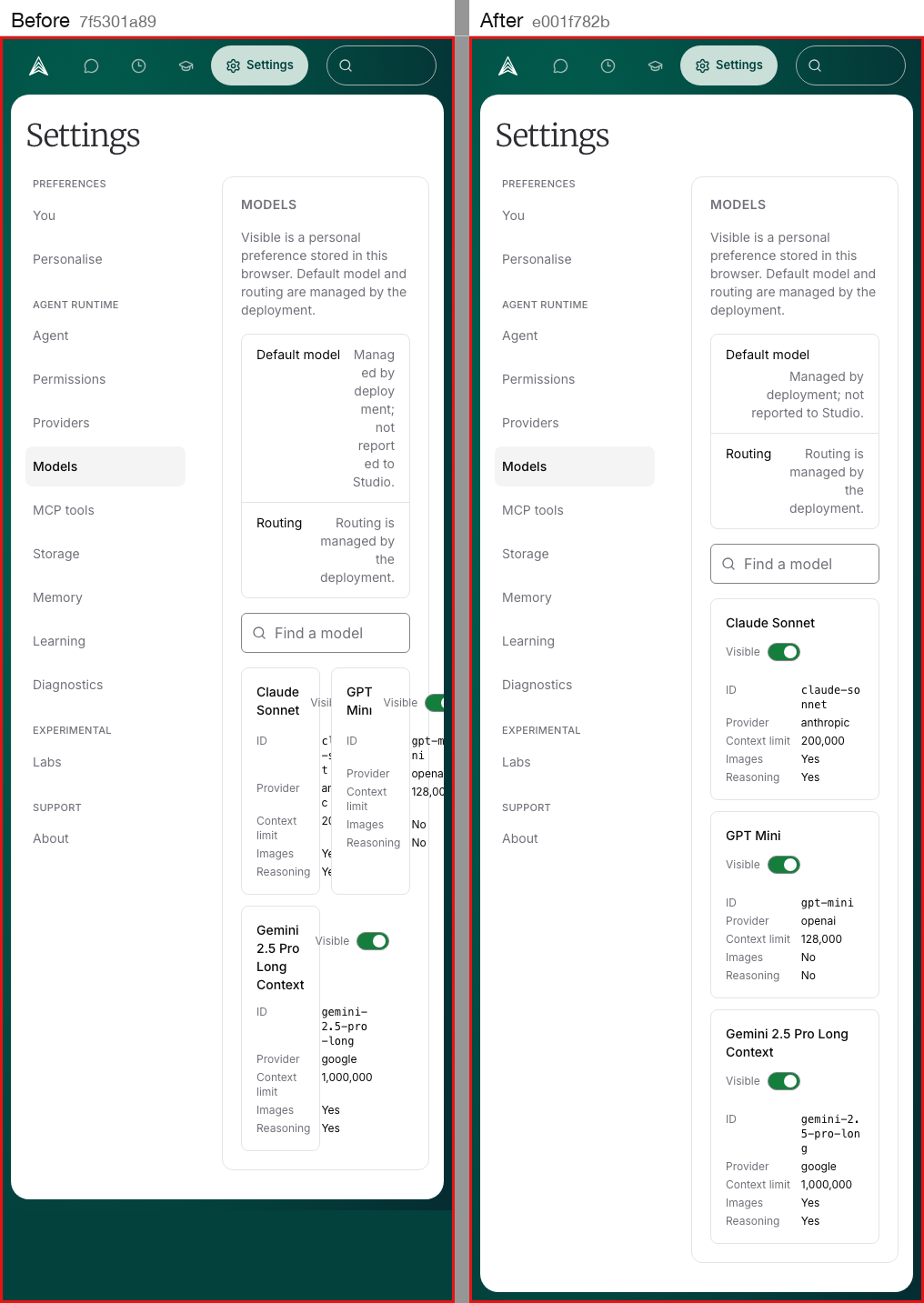

Models at 500px: one readable column instead of two 87px columns, and fact values keep their words whole.

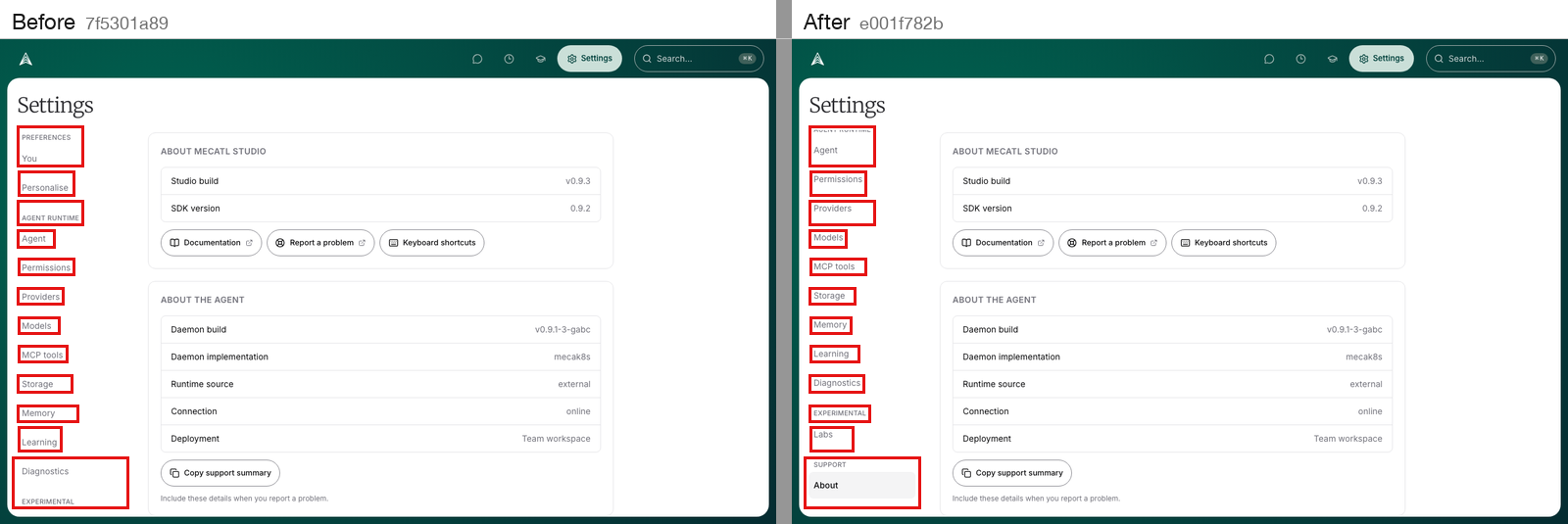

The current nav item at 1280×800 (the window as a user sees it, About): before, About sat below the fold; after, the nav scrolls it into view.

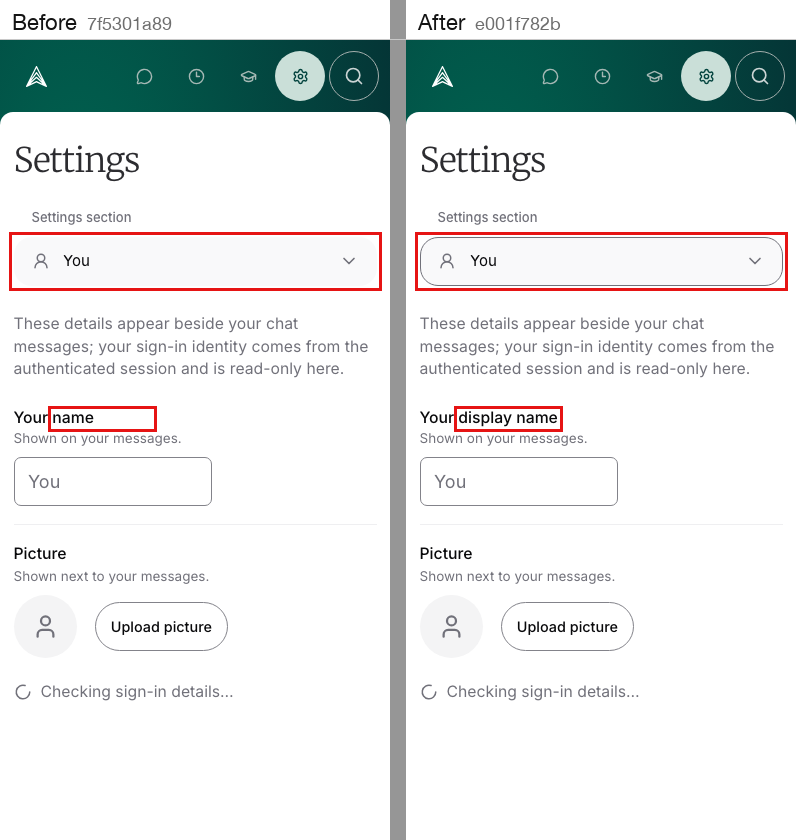

The phone section picker now has a visible border, and the label reads "Your display name":

More: 500/568/640px sections, desktop, dark

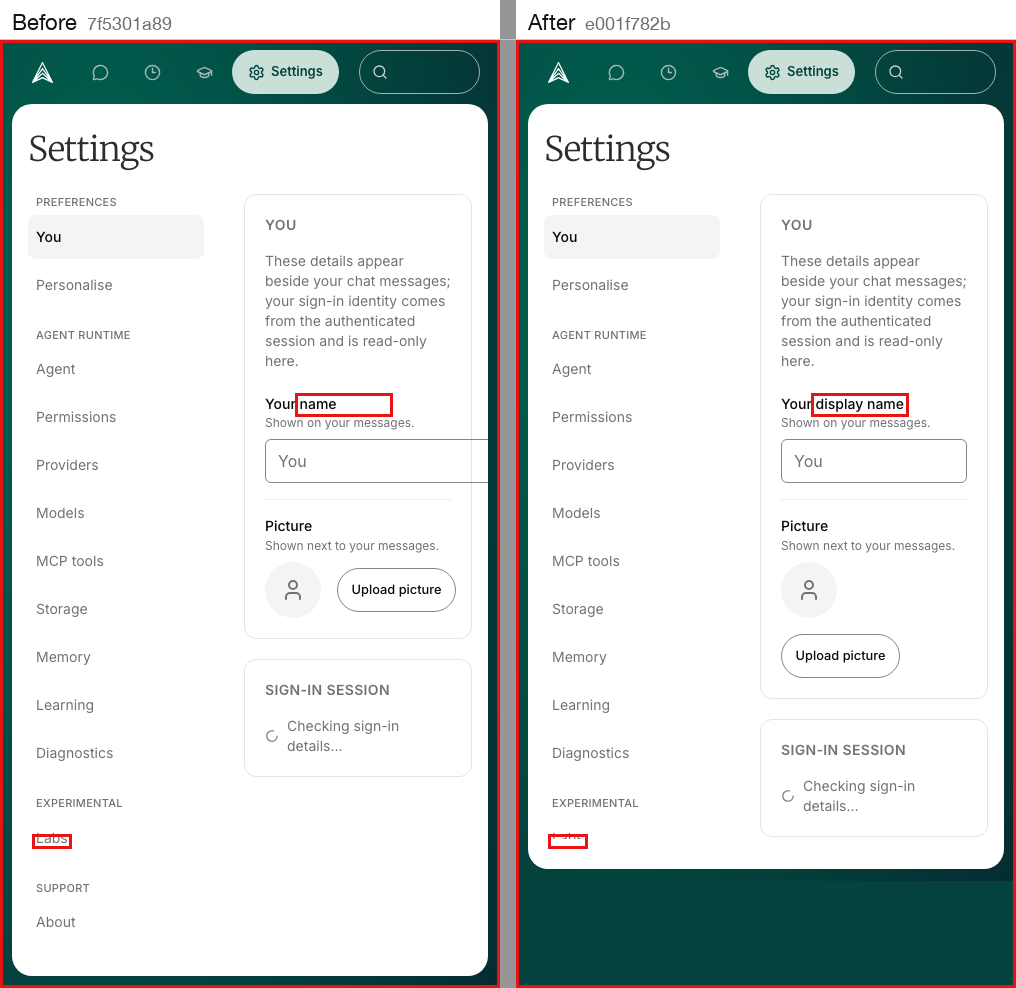

You at 500px: the input stays inside the card.

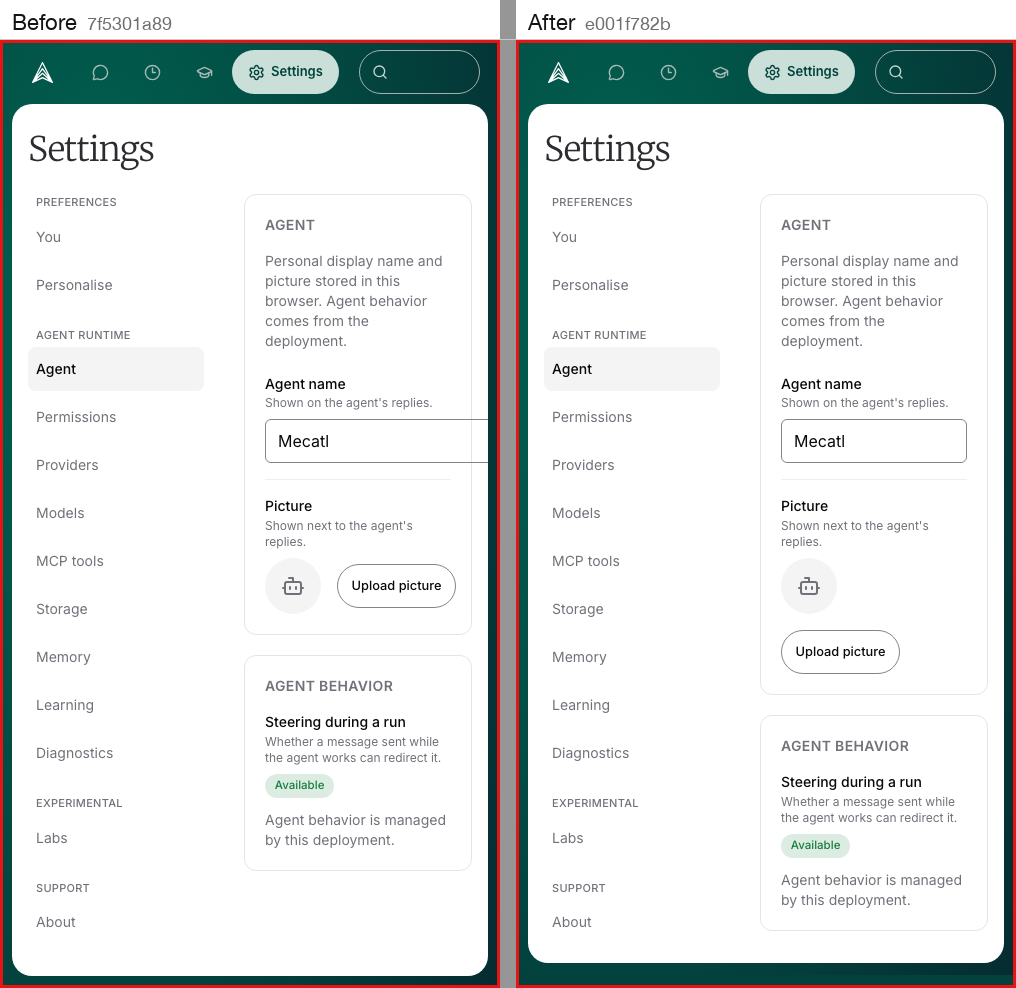

Agent at 500px:

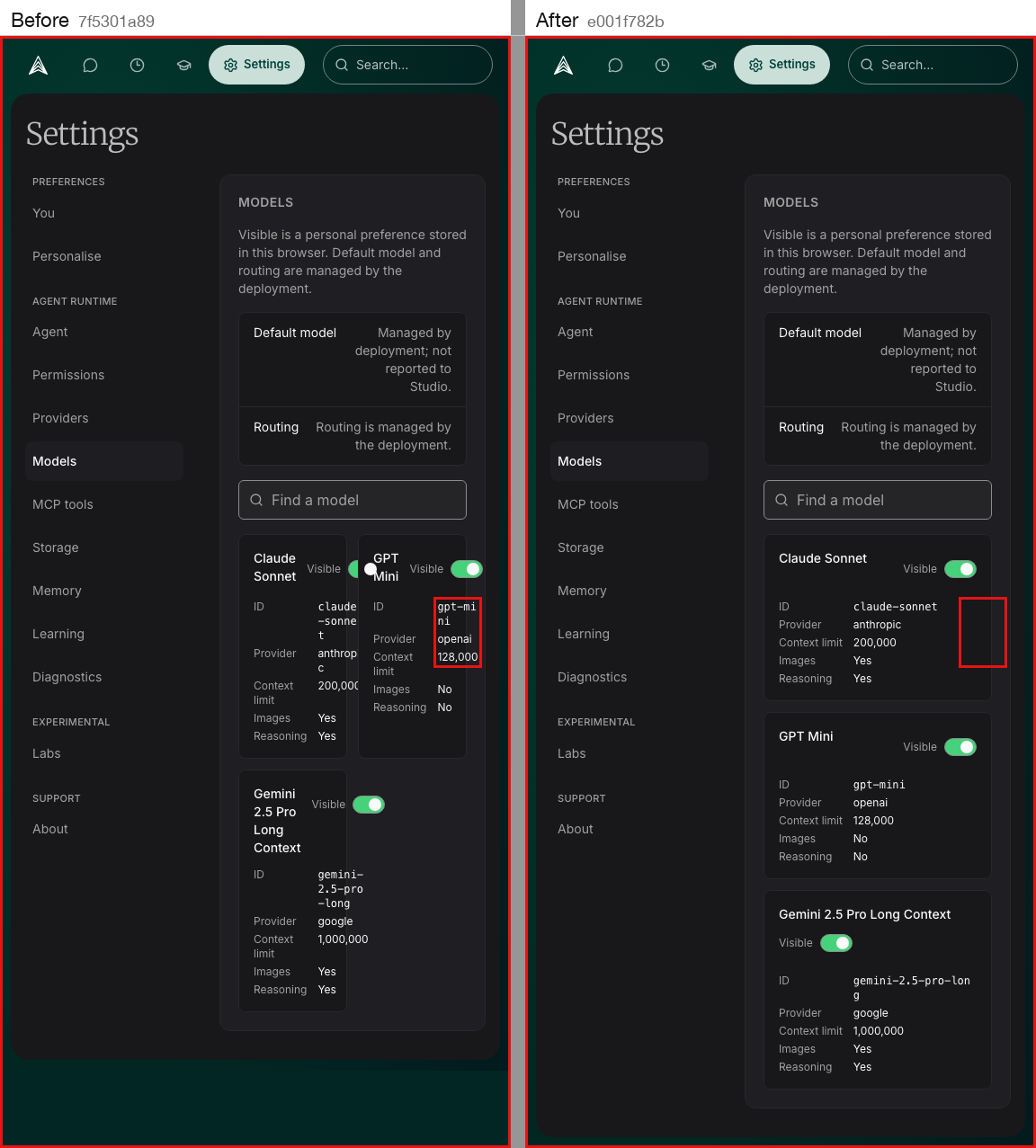

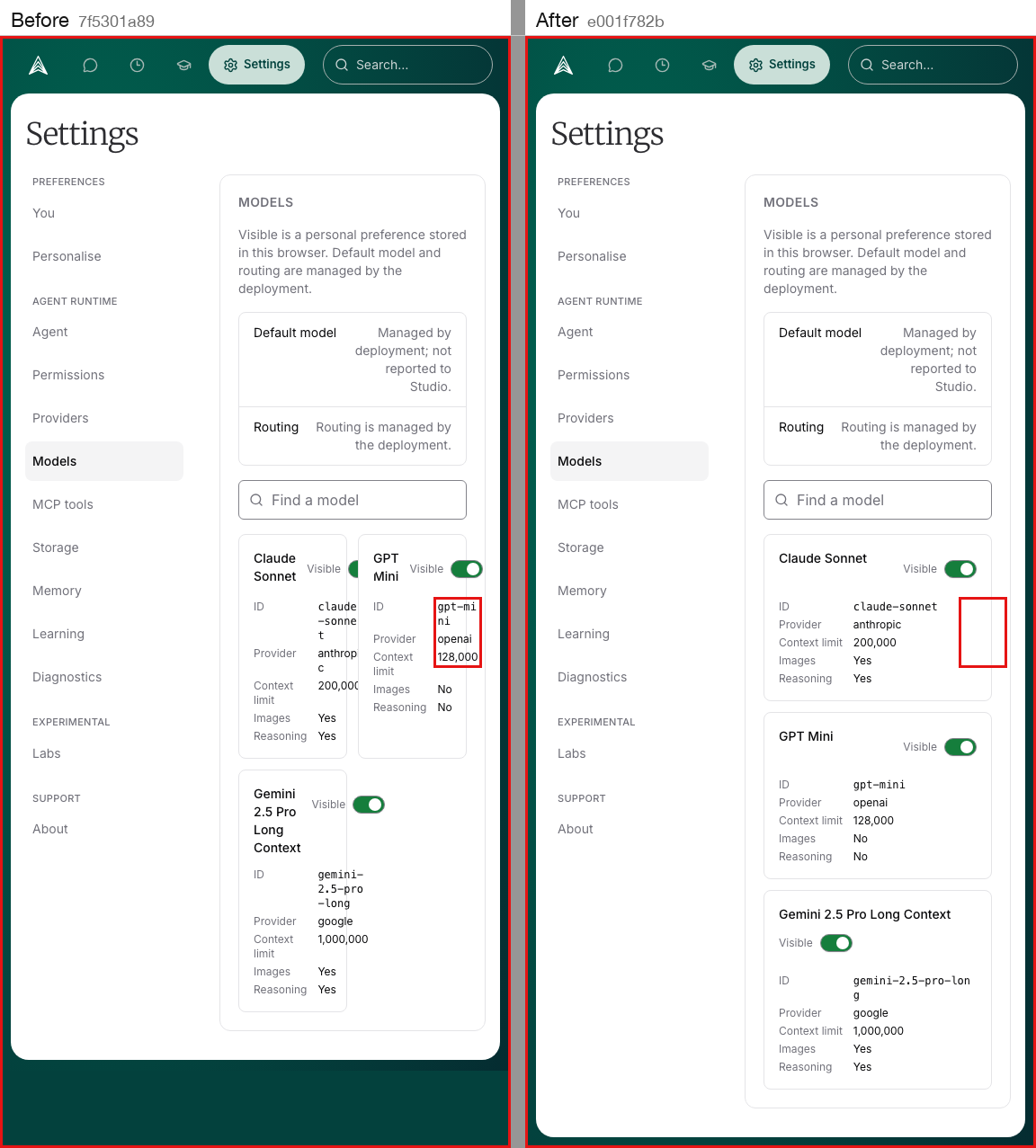

Models at 568px and 640px:

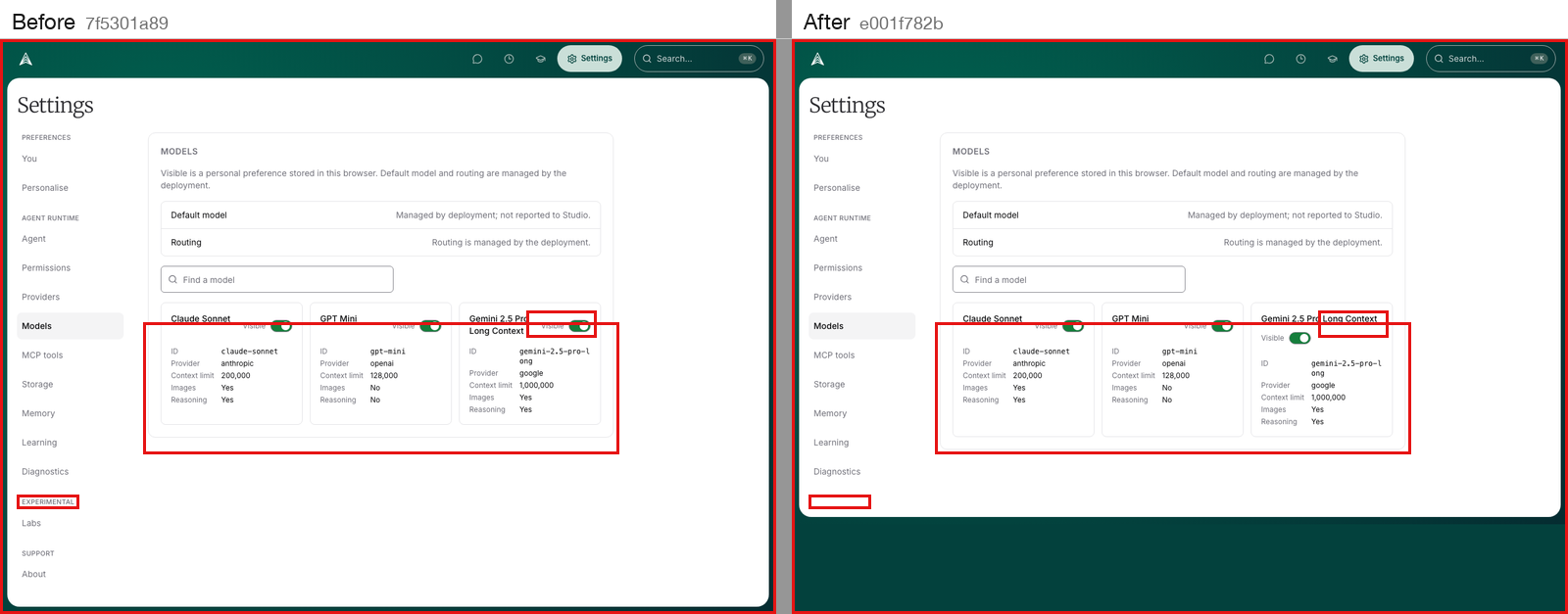

Models at 1280px still shows three columns; a long name now puts Visible under it:

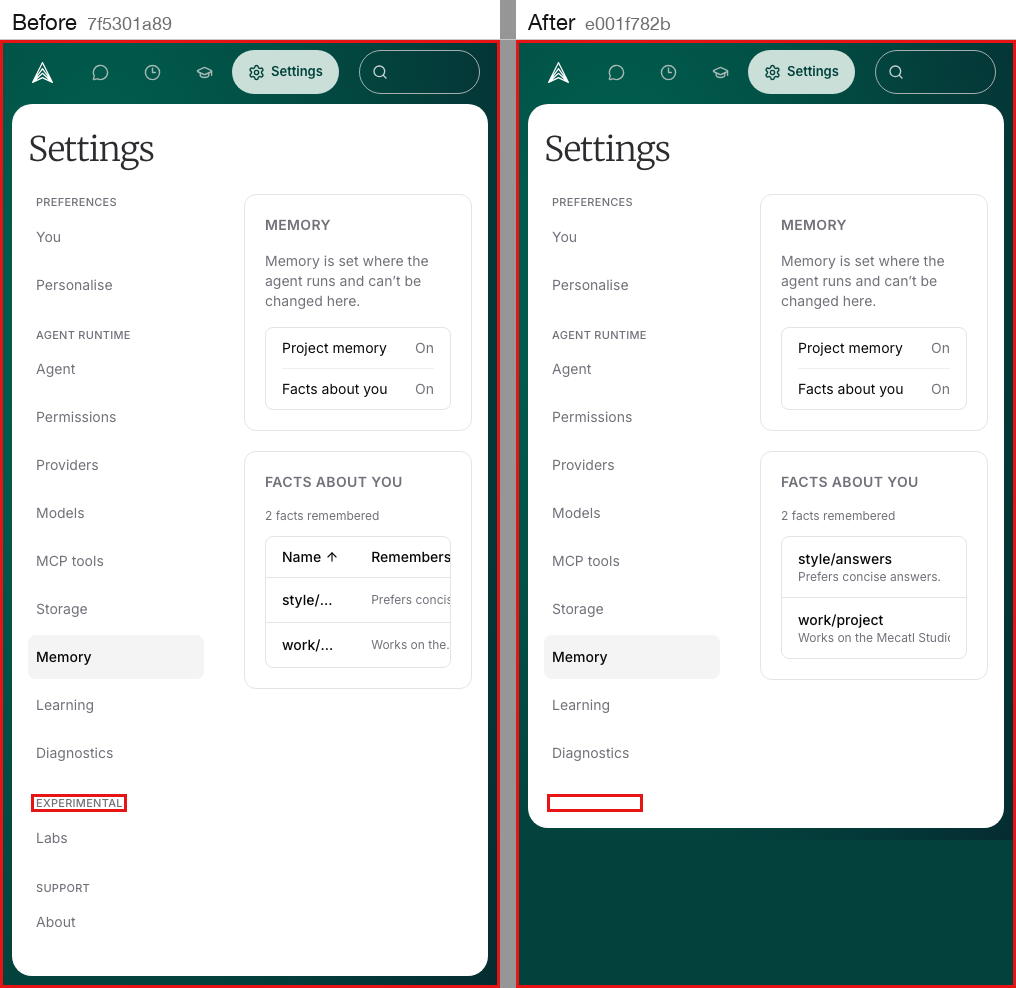

Memory at 500, 568, and 640px: stacked cells, no sideways scroll.

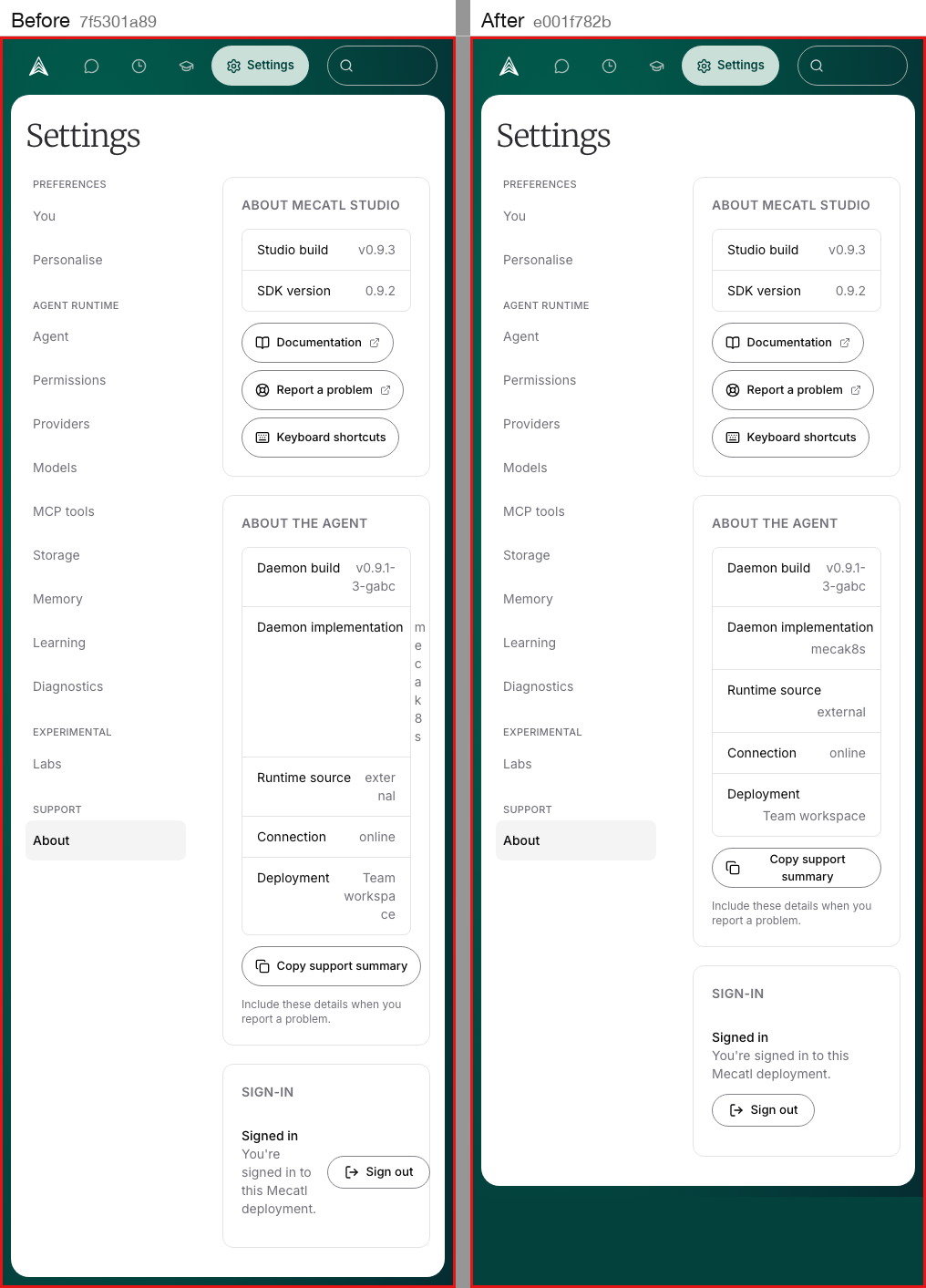

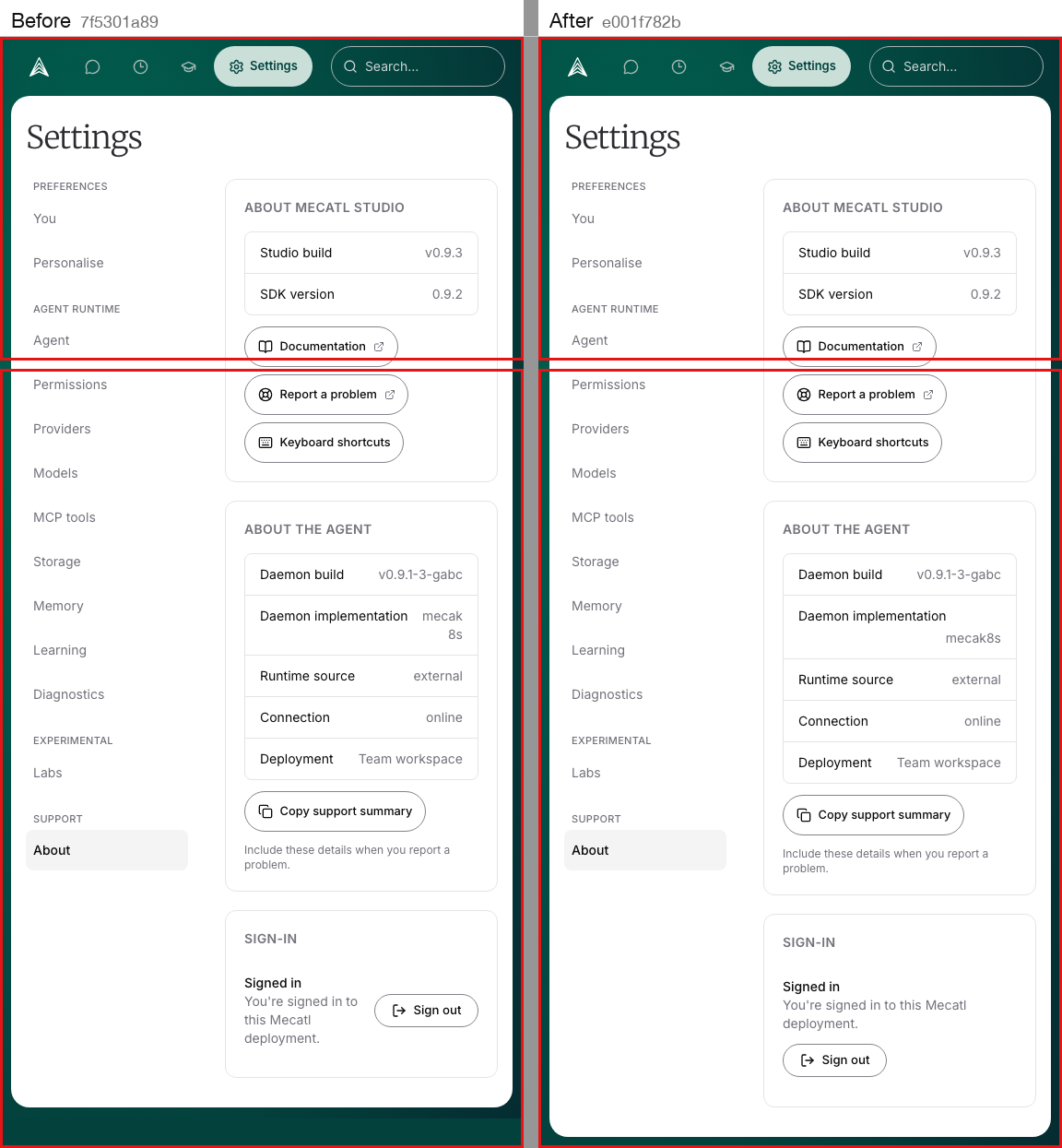

About at 500px and 568px: fact values keep their words whole, and the buttons stay inside the card.

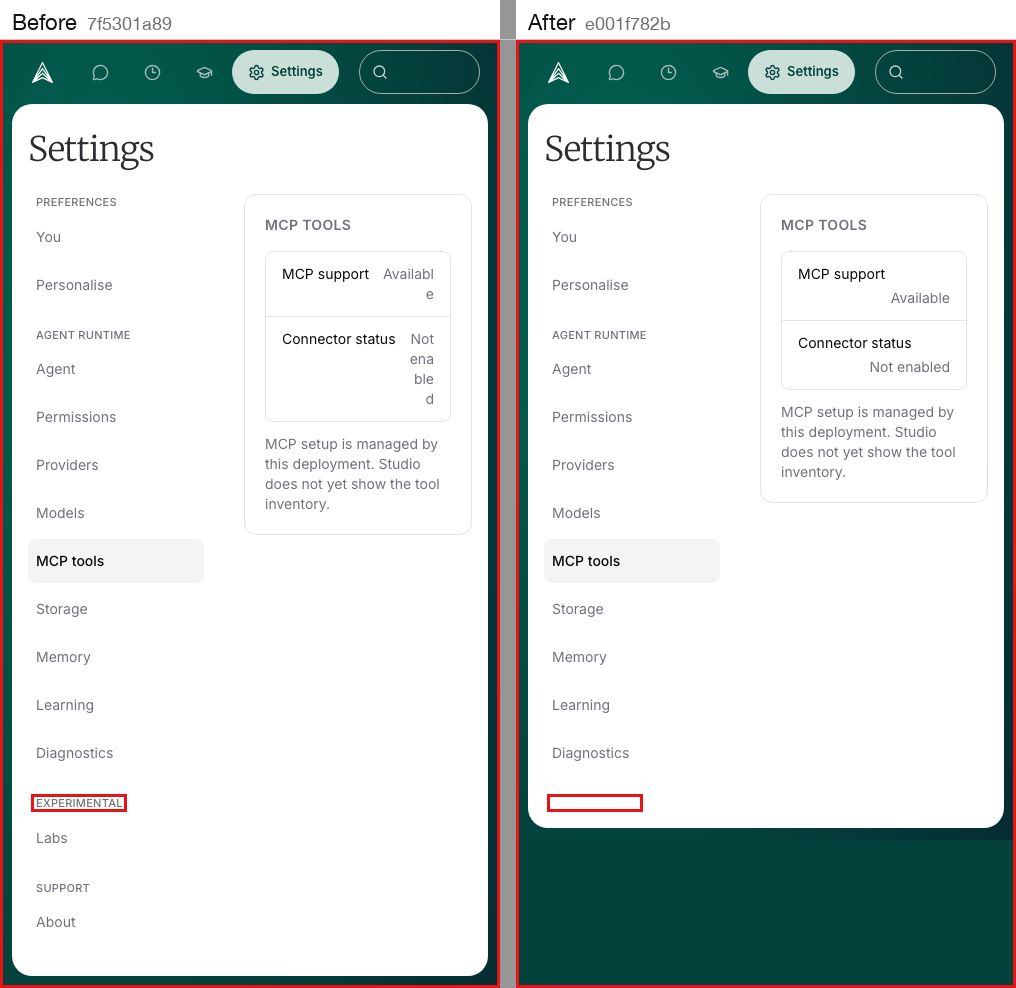

MCP tools and Diagnostics at 500px:

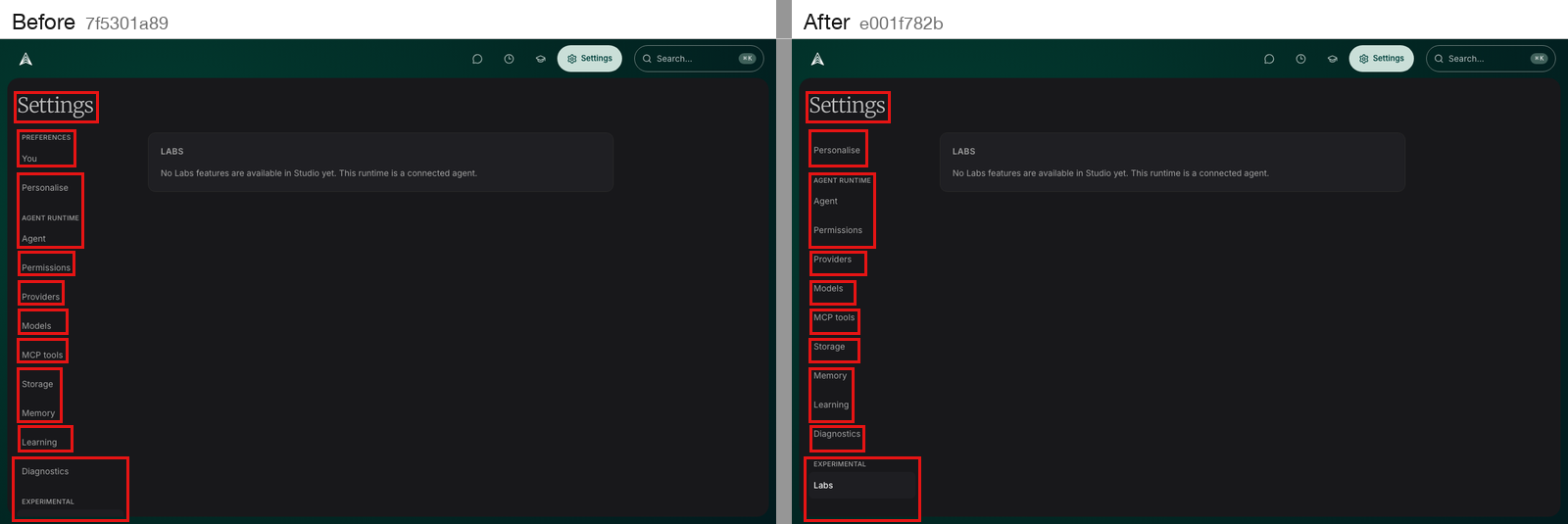

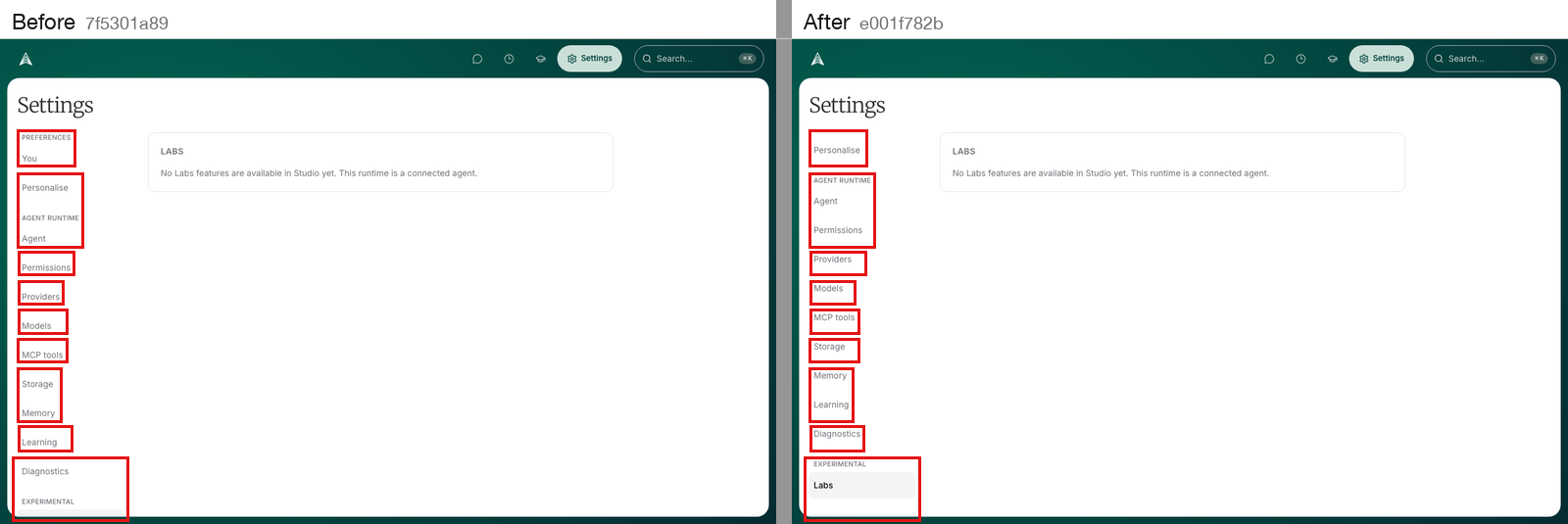

Labs at 1280×800, light and dark:

Phone picker, dark:

Re-verification (2026-10-11)

• CI: the 500–640px journey outran its budgets. It reloaded the app 39 times in one test: 56s of its 60s timeout on this branch's CI run, a timeout on every branch above, and then Playwright's 300s global timeout cut the suite short. It is now one test per width with one page load each; sections open from the Settings nav, and each step also checks the URL and aria-current. The measurements and assertions are unchanged, each test takes about 2.5s, and with the layout fix reverted they still fail on every section that spilled. globalTimeout moves from 300s to 600s: it is a backstop for a hung run, each test keeps its 60s timeout, and the serial suite grew from 54 to over 100 journeys (5.3 minutes on CI at the stack top). (e6fd0022a)
• Sign out was 36px tall (minor). About's other actions keep the 44px minimum; Sign out, now in its own Sign-in card, kept the button's default height. It now has min-h-11. (485f25242) Test: settings-accessibility.test.tsx "gives About's Sign out a 44px touch area" (fails without the fix).

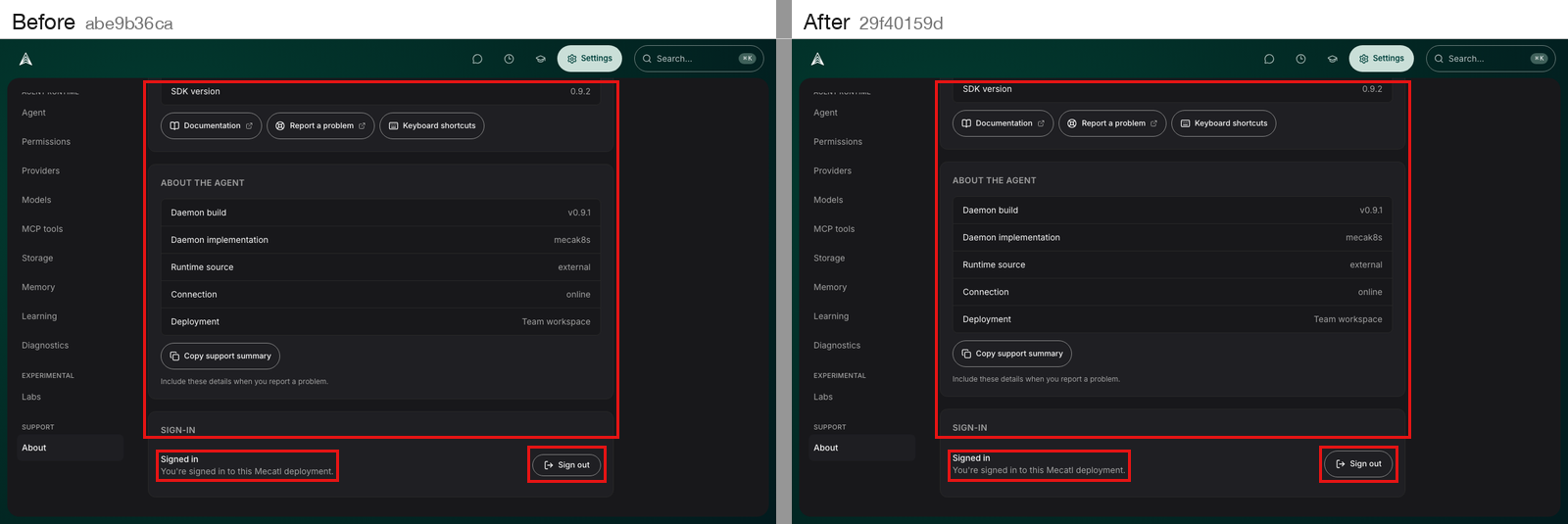

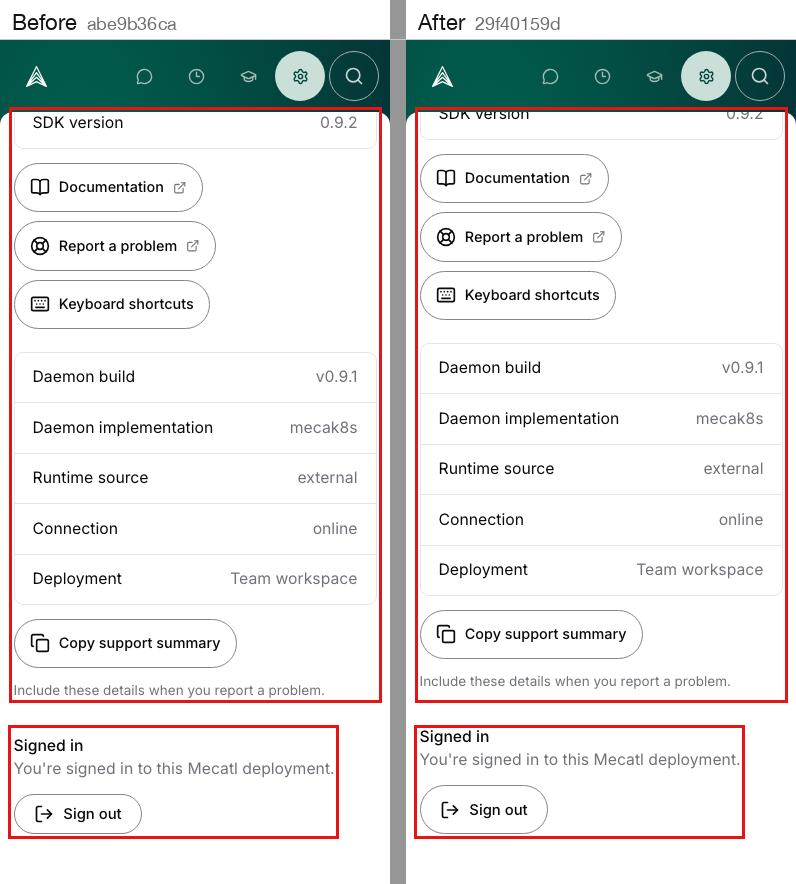

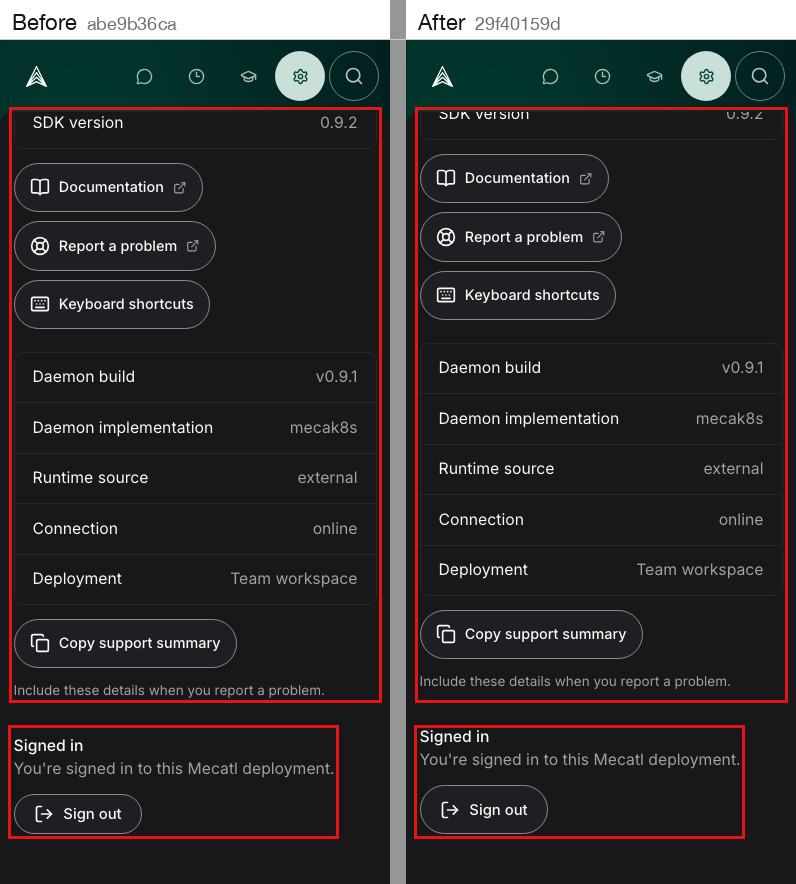

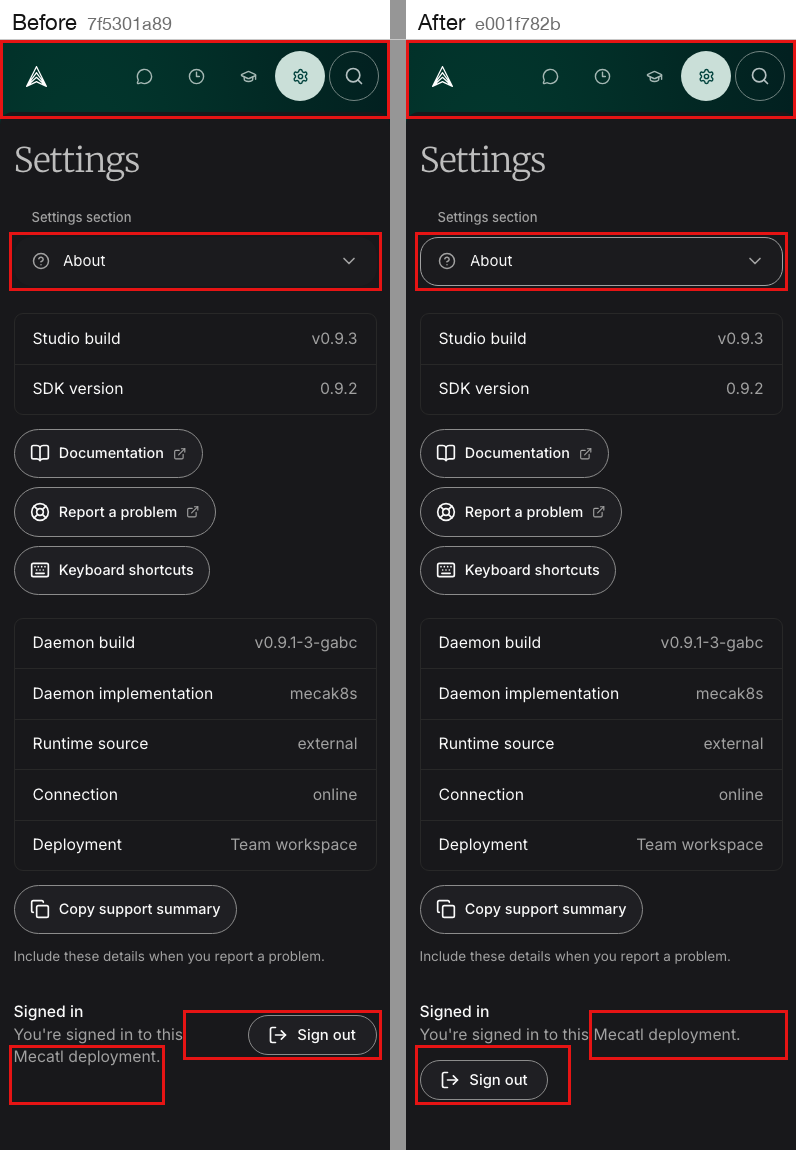

Sign out, before and after the fix (36px → 44px on desktop; the images are labelled with the pre-restack hashes):

More: mobile, dark

Gates on the restacked head 485f25242: studio:check passes (web 1,152, server 210 tests). At the stack top (#2256): studio:browser 118 passed, 30 skipped; the mecated --mock integration suite 8 passed. The browser suite takes 5.3 minutes on a CI runner.

Commit hashes cited earlier in this body predate the restacks; the current commits keep the same subjects. Hashes in Review fixes are updated.

Closes #2206

🤖 Generated with Claude Code

[kantord]

Post-merge review follow-ups for this PR. No blockers or regressions found. Items worth tracking were filed here:

• Large batch of tiny follow-up fixes #2303 (tiny follow-up fixes), section D (optional): gate the "Steer agent" option on the daemon steer capability and fix the "run ended before steering" notice.

Other candidate findings were checked and dropped as not worth tracking.

Fully or partially written by an AI agent.
