AppSotre validation fails with ERRORS ITMS-90087 90209 90125 90080

[roma86]

Hello.

I can not integrate library using cocoapods after upgrade to xcode 7.3, so i moved to carthage.

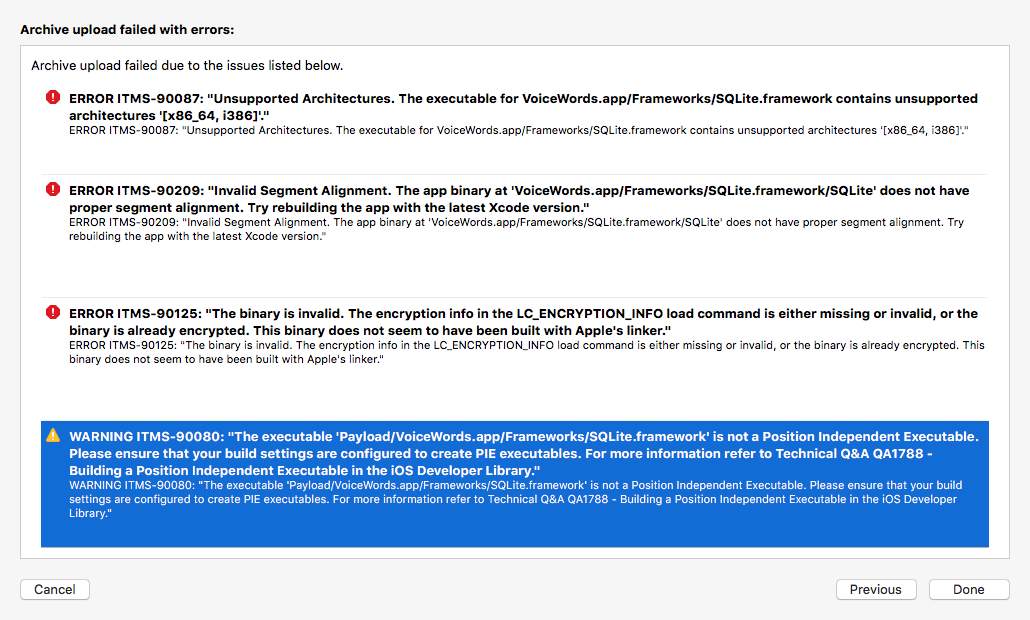

On last stage of submission to store i have multiple error messages (last screenshot)

I actually trying some stupid thing like manually remove i386.swiftdoc i386.swiftmodule x86_64.swiftdoc x86_64.swiftmodule from SQLite.framework/Modules/SQLite.swiftmodule, clean project and build folder, remove derivedData. After that project build is still success, but fail with same error on store validation.

// iOS target 9.0
// Carhtage version 0.11.0
// Cartfile
github "stephencelis/SQLite.swift" ~> 0.10.0

carthage update --platform iOS

Note:
Bitcode is set to NO
When i try use cocoapods (for xcode 7.3 branch or 0.10.0 no matter) i have error similar to this comment
Also on archive phase i have warning:

/path_to_project/<module-includes>:1:1: Umbrella header for module 'SQLite' does not include header 'sqlite3.h'

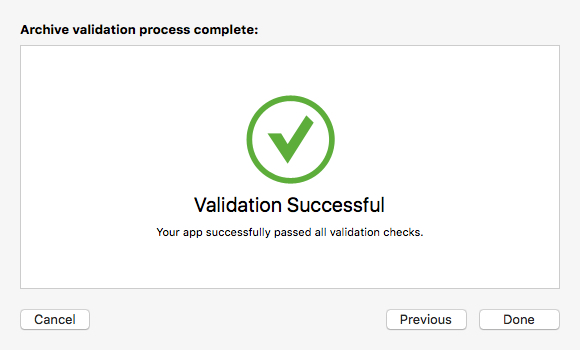

Build can pass validation

But still fail on real submition to store

[stephencelis]

This looks like a Carthage issue. I'm unfamiliar with Carthage, but assume that a build phase needs to strip the other architectures before submission. By default, using Carthage to build a framework for iOS means building for both the device and simulator. In this case, the simulator architectures need to be stripped before submission. I'd check out the Carthage docs for more details.

[stephencelis]

As an aside: many CocoaPods users were able to resolve the issue by upgrading to SQLite.swift 0.10.0 and:

• Cleaning the build folder.
• Updating to the latest CocoaPods beta (1.0.0.beta.6).
• Sometimes deleting and reinstalling Pods from scratch.
• Sometimes deleting and reinstalling Xcode (many had issues with 7.3 after the initial release).

Did you try all the above?

[roma86]

@stephencelis thank you for answer. Should i send same issue report to the carthage repo? What do you think?

[stephencelis]

@roma86 I don't think so. This sounds like it's how Carthage is supposed to work. You're just missing a build phase that they should be documenting.

[roma86]

About cocoapods.
I tried everything that I found in this issue tracker and on stackowerflow and what i can imagine by my self.

• Previously xcode was upgraded from appstore, i remove it and download from developer portal
• Clean and clean build folder is my handy friend for now same with remove DerivedData followed xcode restart, system reboot
• Remove ./Pods and Podfile.lock is also every time when any changes was applied
  And many other tips and tricks which i can found while researching for solution. After 2-nd day i try to switch to carthage and bump - it is build success, but not passing final validation.

[stephencelis]

Check out this part of Carthage's README:

On your application targets’ “Build Phases” settings tab, click the “+” icon and choose “New Run Script Phase”. Create a Run Script in which you specify your shell (ex: bin/sh), add the following contents to the script area below the shell:

 /usr/local/bin/carthage copy-frameworks

and add the paths to the frameworks you want to use under “Input Files”, e.g.:

 $(SRCROOT)/Carthage/Build/iOS/Box.framework
 $(SRCROOT)/Carthage/Build/iOS/Result.framework
 $(SRCROOT)/Carthage/Build/iOS/ReactiveCocoa.framework

This script works around an App Store submission bug triggered by universal binaries and ensures that necessary bitcode-related files and dSYMs are copied when archiving.

— https://github.com/Carthage/Carthage#if-youre-building-for-ios-tvos-or-watchos

[roma86]

@stephencelis thank you. This looks like what i missed out. I thought that the description of this repo about how to carthage should be used is enough.
Just carthage update looked very attractive.
I am sorry for bother you.

[stephencelis]

No worries! Glad you got things sorted!
